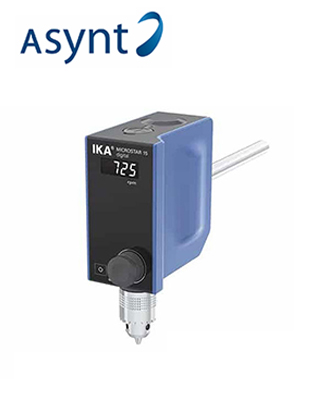

IKA MICROSTAR 15 Digital Overhead Stirrer
IKA MICROSTAR 15數位頂置攪拌器，重量輕、節省空間。 配有LED速度顯示器，適用於最高10L（H2O），轉速為0/50-1000 rpm，攪拌軸最大扭矩為15 Ncm。
將高性能與卓越品質相結合，它們只需要最小的空間並提供終身保固。請詢問以獲得更多細節。
| Stirring quantity max. per stirring position (H2O) | 10 l |
| Motor rating input | 32 W |
| Motor rating output | 22 W |
| Motor principle | Brushless DC |
| Speed display | LED |
| Speed min. | 50 rpm |
| Speed min. | 0/50 rpm |
| Speed max. | 1000 rpm |
| Viscosity max. | 8000 mPas |
| Output max. at stirring shaft | 15.7 W |
| Permissible ON time | 100 % |
| Torque max. at stirring shaft | 15 Ncm |
| Speed control | Turning knob |
| Setting accuracy speed | 1 ±rpm |
| Deviation of speed measurement n > 300rpm | 1 ±% |
| Deviation of speed measurement n < 300rpm | 3 ±rpm |
| Stirring element fastening | chuck |
| Chuck range diameter | 0.5 – 8 mm |
| Hollow shaft, inner diameter | 8.5 mm |
| Hollow shaft (push-through – when stopped) | yes |
| Fastening on stand | extension arm |
| Extension arm diameter | 13 mm |
| Extension arm length | 160 mm |
| Nominal torque | 0.15 Nm |
| Timer display | none |
| Housing material | alu-cast coating / thermoplastic polymer |
| Dimensions (W x H x D) | 60 x 173 x 126 mm |
| Weight | 1.26 kg |
| Permissible ambient temperature | 5 – 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 54 |
| USB interface | yes |
| Voltage | 100 – 240 V |
| Frequency | 50/60 Hz |
| Power input | 32 W |
| Power input standby | 0.3 W |
| DC Voltage | 24 V= |
| Current consumption | 1300 mA |
Combining high performance with particular excellence, they require minimum space and come with a lifetime guarantee. As for more details.
| Stirring quantity max. per stirring position (H2O) | 10 l |
| Motor rating input | 32 W |
| Motor rating output | 22 W |
| Motor principle | Brushless DC |
| Speed display | LED |
| Speed min. | 50 rpm |
| Speed min. | 0/50 rpm |
| Speed max. | 1000 rpm |
| Viscosity max. | 8000 mPas |
| Output max. at stirring shaft | 15.7 W |
| Permissible ON time | 100 % |
| Torque max. at stirring shaft | 15 Ncm |
| Speed control | Turning knob |
| Setting accuracy speed | 1 ±rpm |
| Deviation of speed measurement n > 300rpm | 1 ±% |
| Deviation of speed measurement n < 300rpm | 3 ±rpm |
| Stirring element fastening | chuck |
| Chuck range diameter | 0.5 – 8 mm |
| Hollow shaft, inner diameter | 8.5 mm |
| Hollow shaft (push-through – when stopped) | yes |
| Fastening on stand | extension arm |
| Extension arm diameter | 13 mm |
| Extension arm length | 160 mm |
| Nominal torque | 0.15 Nm |
| Timer display | none |
| Housing material | alu-cast coating / thermoplastic polymer |
| Dimensions (W x H x D) | 60 x 173 x 126 mm |
| Weight | 1.26 kg |
| Permissible ambient temperature | 5 – 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 54 |
| USB interface | yes |
| Voltage | 100 – 240 V |
| Frequency | 50/60 Hz |
| Power input | 32 W |
| Power input standby | 0.3 W |
| DC Voltage | 24 V= |
| Current consumption | 1300 mA |
