這些裝置可用於小型工廠和公斤級實驗室，用來確定冰點、深度溫度校準、石油測試、測量設備和實驗裝置的溫度控制以及材料測試和品質控制。
設備能夠根據型號來滿足最高要求；Pilot ONE控制器提供的專業功能範圍包含例如彩色TFT顯示器、編程器、Pt100外部探頭連接、校準、日曆/時鐘功能、自動啟動、RS232 接口以及廣泛的安全和警告功能。
另一個優點是使用特定於單元的e-grade代碼對功能擴展進行電子升級並啟動附加功能，例如編程器、TAC串級控制、溫度上升坡度、用戶選單、日曆啟動、圖形顯示和過程控制。
這些裝置由優質不銹鋼製成，並有一個避免冷凝和結冰的溫度調節蓋板。浴槽容量為5 L，可通過前面的排水管排空。
新的多點觸控控制器 Pilot ONE 提供出色的 5.7 inch觸控螢幕，所有重要的操作參數和溫度值都整齊的顯示在觸控螢幕上，具有圖形功能和舒適的引導選單。由於擁有新的收藏夾選單、一鍵式操作和整合的技術詞彙表，所以操作起來就像在智慧型手機上一樣非常簡單。整合的USB和以太網路端口允許連接到 PC 或網路來遠程控制或數據傳輸。
- 標準功能範圍概述：
- Pilot ONE 控制器採用隨插即用技術
- 精確的溫度控制
- 5.7inch觸控螢幕和舒適的選單引導
- 過溫和低液位保護
- 安全等級 III/FL (DIN 12876)
- 強大的壓力/抽吸泵
- 具有日曆和時鐘功能的編程
- 2點校準
- Pt100 感測器連接

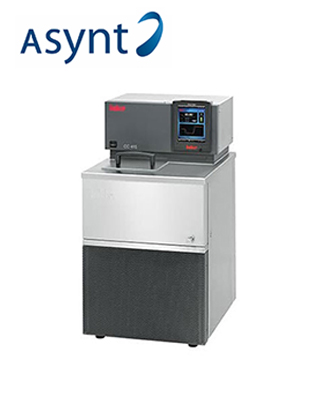

The units can be used in mini-plants and kilo laboratories, for determining the freezing point, for deep temperature calibration, for petroleum tests, for temperature control of measuring devices and experimental setups as well as for materials testing and quality control.
Depending on the model, the equipment is able to meet the highest demands; this is ensured by the professional range of functions available on the Pilot ONE controller, such as a colour TFT display, programmer, Pt100 external probe connection, calibration, calendar/clock functions, autostart, RS232 interface as well as extensive safety and warning functions.
One further plus point is the electronic upgrade for function extensions using a unit specific e-grade code. This activates additional functions such as the programmer, TAC cascade controlling, temperature ramps, user menus, calendar start, graphic display and process control.
The units are made from high quality stainless steel and have a thermoregulated cover plate to avoid condensation and build up of ice. The bath vessel has a volume of 5 litres and can be emptied via the drain fitting over the front.
The new multi-touch controller Pilot ONE offers a brilliant 5.7″ touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favourites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.
- Range overview of standard features:
- Pilot ONE controller with Plug & Play technology
- Precise temperature control
- 5.7“ touchscreen and comfortable menu navigation
- Overtemperature and low level protection
- Safety class III/FL (DIN 12876)
- Powerful pressure/suction pump
- Programmer with calendar and clock functions
- 2-point calibration
- Pt100 sensor connection
