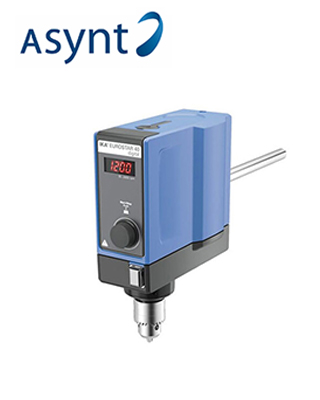

IKA EUROSTAR 60 Digital Overhead Stirrer
IKA EUROSTAR 60數位頂置攪拌器是一種强大的實驗室攪拌器，可攪拌40升（H<sub>2</sub>O）的水。它通過微處理器控制科技在0/30–2000 rpm的速度範圍內自動調整速度。安裝的安全電路可確保在防失速失效或超載條件下自動切斷。
保持軸速度與所需速度的連續比較，並自動調整變化。 這保證了即使樣品粘度發生變化，也能保持恒定的速度。
保持軸速度與所需速度的連續比較，並自動調整變化。 這保證了即使樣品粘度發生變化，也能保持恒定的速度。
主要功能包括：
- 數位速度顯示
- 無級調速
- 推進式攪拌器軸
- 超載保護
- 短期超載運行
- 薄型外殼
- 安靜操作
- 錯誤代碼顯示
| Stirring quantity max. per stirring position (H2O) | 40 l |
| Motor rating input | 176 W |
| Motor rating output | 126 W |
| Motor principle | Brushless DC |
| Speed display | 7 segment LED |
| Speed range | 0/30 – 2000 rpm |
| Viscosity max. | 50000 mPas |
| Output max. at stirring shaft | 126 W |
| Permissible ON time | 100 % |
| Torque max. at stirring shaft | 60 Ncm |
| Speed control | stepless |
| Setting accuracy speed | 1 ±rpm |
| Deviation of speed measurement n > 300rpm | 1 ±% |
| Deviation of speed measurement n < 300rpm | 3 ±rpm |
| Stirring element fastening | chuck |
| Chuck range diameter | 0.5 – 10 mm |
| Hollow shaft, inner diameter | 11 mm |
| Hollow shaft (push-through – when stopped) | yes |
| Fastening on stand | extension arm |
| Extension arm diameter | 16 mm |
| Extension arm length | 220 mm |
| Speed control | electronic |
| Nominal torque | 0.6 Nm |
| Housing material | alu-cast coating / thermoplastic polymer |
| Dimensions (W x H x D) | 86 x 248 x 208 mm |
| Weight | 4.4 kg |
| Permissible ambient temperature | 5 – 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 42 |
| Voltage | 230 / 115 / 100 V |
| Frequency | 50/60 Hz |
| Power input | 176 W |
Key features include:
- Digital speed display
- Infinitely adjustable speed
- Push-through agitator shafts
- Overload protection
- Short-term overload operation
- Slim casing
- Quiet operation
- Error code display
| Stirring quantity max. per stirring position (H2O) | 40 l |
| Motor rating input | 176 W |
| Motor rating output | 126 W |
| Motor principle | Brushless DC |
| Speed display | 7 segment LED |
| Speed range | 0/30 – 2000 rpm |
| Viscosity max. | 50000 mPas |
| Output max. at stirring shaft | 126 W |
| Permissible ON time | 100 % |
| Torque max. at stirring shaft | 60 Ncm |
| Speed control | stepless |
| Setting accuracy speed | 1 ±rpm |
| Deviation of speed measurement n > 300rpm | 1 ±% |
| Deviation of speed measurement n < 300rpm | 3 ±rpm |
| Stirring element fastening | chuck |
| Chuck range diameter | 0.5 – 10 mm |
| Hollow shaft, inner diameter | 11 mm |
| Hollow shaft (push-through – when stopped) | yes |
| Fastening on stand | extension arm |
| Extension arm diameter | 16 mm |
| Extension arm length | 220 mm |
| Speed control | electronic |
| Nominal torque | 0.6 Nm |
| Housing material | alu-cast coating / thermoplastic polymer |
| Dimensions (W x H x D) | 86 x 248 x 208 mm |
| Weight | 4.4 kg |
| Permissible ambient temperature | 5 – 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 42 |
| Voltage | 230 / 115 / 100 V |
| Frequency | 50/60 Hz |
| Power input | 176 W |
