緊密型加熱恆溫器標配可滿足最高要求且具有出色的熱力學特性和一系列功能E級專業版。Chili加熱時間短、溫度範圍廣、無需更換流體，保證了高準確度、可重複的溫度控制結果。
與所有Unistats一樣，Chili 配備了創新的 Pilot ONE 控制器、5.7吋觸控螢幕和方便的引導選單。
- 65~300 °C溫度範圍
- 70°C 時的溫度穩定性 0,02 K
- 溫度設定點/ 5,7″ 彩色觸控顯示螢幕
- 顯示分辨率 0,01 K
- 內部溫度感測器 Pt100
- 外部感測器 Pt100
- 接口數位以太網路、USB（Host u.Device）、RS232
- 報警訊息光學、聲音、繼電器
- 安全等級 Class III / FL
- 加熱功率 3 kW
- 循環泵：最大輸送量 45 L/min
最大輸送壓力 0.9 bar
泵連接 M24x1,5 公頭
最大允許的親屬性黏度 50 mm²/s
最小填充容量 1,45 L
填充容量膨脹罐 2 L - 外形尺寸 寬X長X高 ** 240x427x393 mm
- 淨重 23 kg
- 電源要求 200V-240V 1~/2~ 50/60Hz
- 最大限度。電流 15,5 A
- 保險絲 16 A
- 防護等級 IP20
- 最低環境溫度 5 °C
- 最高環境溫度 40 °C

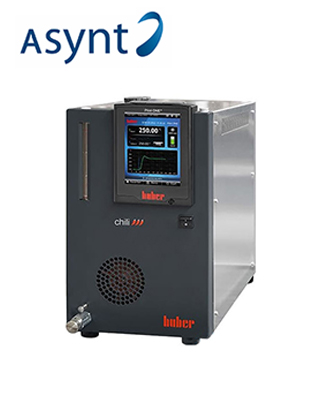

The compact heating thermostat is equipped with the E-grade Professional as standard and convinces with excellent thermodynamic properties and a range of functions for the highest demands. Chili guarantees highly accurate, reproducible temperature control results with short heat-up times and wide temperature ranges without changing fluids.
Like all Unistats, the Chili is equipped with the innovative Pilot ONE controller with 5.7″ touch screen and convenient menu navigation.
- Operating temperature range 65… 300 °C
- Temperature stability at 70°C 0,02 K
- temperature set point / display 5,7″ colour Touchscreen
- Resolution of display 0,01 K
- Internal temperature sensor Pt100
- External sensor Pt100
- Interface digital Ethernet, USB (Host u.Device), RS232
- Alarm message optic, acoustic, relay
- Safety classification Class III / FL
- Heating power 3 kW
- Circulation pump: max. delivery 45 l/min
max. delivery pressure 0.9 bar
Pump connection M24x1,5 male
max. permissible kin. viscosity 50 mm²/s
min. filling capacity 1,45 l
Filling capacity expansion tank 2 l - Overall dimensions WxDxH ** 240x427x393 mm
- Net weight 23 kg
- Power supply requirement 200V-240V 1~/2~ 50/60Hz
- max. current 15,5 A
- Fuse 16 A
- Degree of Protection IP20
- min. ambient temperature 5 °C
- max. ambient temperature 40 °C
