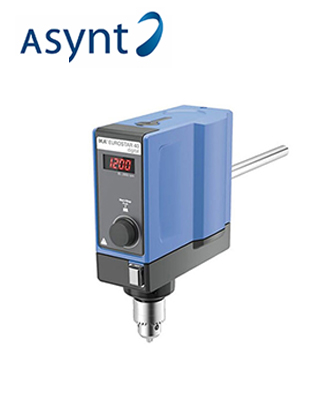

IKA Eurostar 40 Digital
Eurostar 40 Digital通過微處理器控制科技自動調整速度，速度範圍為0/30–2000 rpm
與所有IKA產品一樣，安全是關鍵，該頂置攪拌器具備安全電路可確保在防失速失效或超載情况下自動切斷。 保持軸速度與所需速度的連續比較，並自動調整變化。 這保證了即使樣品粘度發生變化，也能保持恒定的速度。主要特點包括：
主要功能包括：
數位速度顯示
無級調速
推進式攪拌器軸
超載保護
短期超載運轉
超薄機殼
無噪音運轉
錯誤代碼顯示
該型號有許多配件，包括各種攪拌器和支架， 因此請詢問是否有任何您感興趣的配件。
| Stirring quantity max. per stirring position (H2O) | 25 l |
| Motor rating input | 118 W |
| Motor rating output | 84 W |
| Motor principle | Brushless DC |
| Speed display | 7 segment LED |
| Speed range | 0/30 – 2000 rpm |
| Reversible direction of rotation | no |
| Intermittent operation | no |
| Viscosity max. | 30000 mPas |
| Output max. at stirring shaft | 84 W |
| Permissible ON time | 100 % |
| Torque max. at stirring shaft | 40 Ncm |
| Speed control | stepless |
| Setting accuracy speed | 1 ±rpm |
| Deviation of speed measurement n > 300rpm | 1 ±% |
| Deviation of speed measurement n < 300rpm | 3 ±rpm |
| Stirring element fastening | chuck |
| Temperature display | no |
| Chuck range min. diameter | 0.5 mm |
| Chuck range max. diameter | 10 mm |
| Hollow shaft, inner diameter | 11 mm |
| Hollow shaft (push-through – when stopped) | yes |
| Fastening on stand | extension arm |
| Extension arm diameter | 16 mm |
| Extension arm length | 220 mm |
| Torque display | no |
| Nominal torque | 0.4 Nm |
| Timer | no |
| housing material | alu-cast coating / thermoplastic polymer |
| clean room qualified | no |
| explosion proofed | no |
| Dimensions (W x H x D) | 86 x 248 x 208 mm |
| Weight | 4.4 kg |
| Permissible ambient temperature | 5 – 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 42 |
| USB interface | no |
| RS 232 interface | no |
| Analog output | no |
| Voltage | 230 / 115 / 100 V |
| Frequency | 50/60 Hz |
| Power input | 118 W |
As with all IKA products, safety is key and integral safety circuits in this overhead stirrer ensures automatic cut-off in an anti-stall or overload situation. Continuous comparison of shaft speed to desired speed is maintained and variations are adjusted automatically. This guarantees a constant speed even with changes in viscosities of the sample.
Key features include:
Digital speed display
Infinitely adjustable speed
Push-through agitator shafts
Overload protection
Short-term overload operation
Slim casing
Quiet operation
Error code display
There are many accessories available for this model including various stirrers and supports so please ask if any of these may be of interest.
