在線式全光譜 UV-Vis 分光光度計

專為流動化學與批次反應設計
FlowUV 是一款價格實惠且體積小巧的固態分光光度計，專為流動化學與批次操作應用所設計。
該分光光度計採用氙氣閃光燈光源，在正常使用下壽命可達 10 年，並搭配 CCD 陣列，無需例行維護或校正，即可記錄 200–900 nm 範圍的全光譜（可選配紅外光源）。
本設備通常用於監測穩態條件並在流通式應用中控制產物收集；高壓流通池採用 PFA 或 FEP 管材，並透過光纖導波管連接光源與偵測模組，可幾乎安裝於流路中的任何位置。
亦提供多種批次用光析槽。

FlowUV UV/Vis 在線分光光度計可整合至您的 FlowLab 系統中，以提供軸向擴散的即時監測。此為一款全光譜 (200–1000 nm) 固態儀器，並提供固定波長選項。
高壓流通池可安裝於流路中的任何位置。
分光光度計的輸出結果會以圖形方式顯示於 FlowControl II 控制軟體中。此功能有助於導引產物收集。
熱門購買選項

• UQ1100 FlowUV UV-Vis 分光光度計，200–900 nm，氙燈；110/220V，50/60Hz

技術特點

• 長壽命脈衝氙燈光源，200–900 nm（選配近紅外）
• UV 強化型 3648 像素 CCD 偵測器陣列
• 高度彈性－具光纖導波管的高壓在線流通池可幾乎安裝於流路中的任何位置
• 化學惰性：流通池採用全氟聚合物流道
• FlowUV 軟體可同時監測 5 個波長
• 體積小、可攜式且易於使用

Designed for both flow chemistry and batch reactions

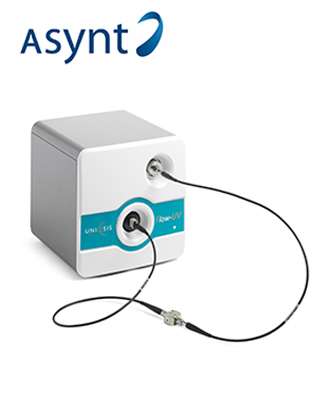

The FlowUV is an affordable and compact solid state spectrophotometer designed for both flow chemistry and batch applications.
Utilising a Xe strobe lamp source with a lifetime of up to 10 years in normal use, coupled with a CCD array, the spectrometer requires no routine maintenance or calibration and can record full spectra in the range 200-900 nm (an optional IR source is available).
Typically used to monitor steady state conditions and control product collection in flow-through applications, the high pressure flow cell, which uses PFA or FEP tubing and connects to the source and detector module using fibre optic waveguides, may be inserted virtually anywhere in the flow path.
A wide range of batch cuvettes are also available.

FlowUV UV/vis inline spectrophotometer can be included in your FlowLab system to provide real-time monitoring of axial dispersion. This is a full spectrum (200-1000nm) solid state instrument with a fixed wavelength option.
The high pressure flow cell can be positioned anywhere in the flow path.
The output from the spectrometer is shown graphically in the FlowControl II control software. This is useful in order to direct product collection.
Popular purchase options

• UQ1100 FlowUV UV-vis spectrophotometer, 200-900nm, Xe; 110/220V, 50/60Hz

Technical Specifications

• Long life-time pulsed Xenon source, 200-900 nm (near-IR option)
• UV-enhanced 3648 pixel CCD detector array-
• Flexible—high pressure inline flow cell with fibre optic waveguides may be positioned virtually anywhere within the flow path
• Chemically inert: flow cell has perfluoropolymer flow path
• FlowUV software allows simultaneous monitoring at 5 wavelengths
• Compact, portable and easy to use
