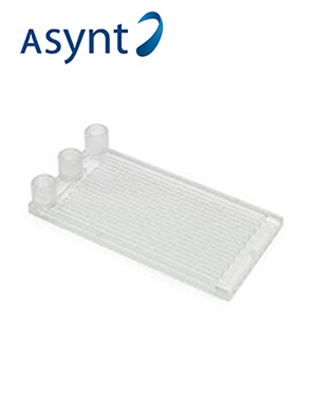

FlowSyn 2ml glass static mixer chip
它們可以用作線圈反應器停留時間單元之前的混合模塊，或者本身用作適合快速放熱反應（例如金屬化和硝化）的反應器塊。試劑輸入流通過回火通道以平衡它們的溫度，然後在混合點合併。「芯片」由惰性硼矽酸鹽玻璃精密加工而成，可承受高達 40 bar 的壓力，並且可以方便地連接到 FlowSyn 柱加熱器模塊或冷盤管和 Polar Bear Plus 低溫反應器模塊的頂部。
可以使用標準螺紋 HPLC 接頭使用「O」形密封環方便地進行連接，以確保有效的手擰密封，而無需任何工具。
- 方便的手擰式 HPLC 螺紋連接器
- 堅固——可承受高達40bar的壓力
- 每個入流口的平滑回火通道
- 高效的「chicane」混合幾何結構延伸了反應器/混合器的全長
- 提供 2 或 3 種入口變體和 270uL、1.0ml 和 1.6ml 尺寸。
零件號：UQ-5102 用於 2ml 玻璃靜態混合器芯片
They can be used as mixing modules prior to a coil reactor residence time unit, or as reactor blocks in their own right suitable for rapid exothermic reaction such as metallations and nitrations. Reagent input streams run through tempering channels to equilibrate their temperatures prior to merging at the mixing point. The ‘chips’ are precision machined from inert borosilicate glass to withstand pressures up to 40 bar, and can be conveniently attached to the FlowSyn column heater module or on top of either the Cold Coil and Polar Bear Plus cryogenic reactor modules.
Connections can be conveniently made using standard threaded HPLC fittings utilising an ‘O’-ring seal to ensure effective finger-tight sealing without the need for any tools.
- Convenient, finger-tight HPLC threaded connectors
- Robust – withstands up to 40bar pressure
- Smooth tempering channels for each inlet stream
- Efficient ‘chicane’ mixing geometry extends the full length of the reactor/mixer
- Available in 2 or 3 inlet variants & 270uL, 1.0ml and 1.6ml sizes.
Part number: UQ-5102 for the 2ml glass static mixer chip
