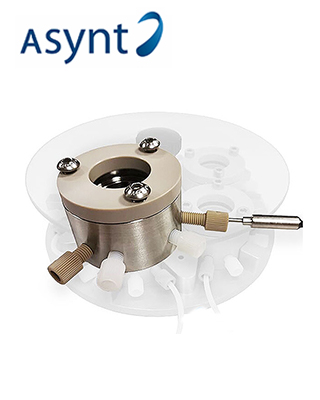

fReactor MAXI HASTELLOY Kit

fReactor MAXI由University of Leeds工藝研究與開發研究所的化學家和工程師設計，易於組裝和修改來適用於各種連續流動工作。

分享：

產品特點
規格
Features
Specifications

f Reactor MAXI HASTELLOY 套件包括 5 個連續攪拌釜式反應器 (CSTR)，每個體積為 7.5 mL，由哈氏合金製造。
由標準磁熱板攪拌器提供加熱和混合，用於驅動模塊周圍的試劑的流體泵（例如 HPLC、注射器、蠕動泵、齒輪）。
f Reactor 系列將管流處理的效率與 CSTR 的先進混合相結合，提供了一個通用的「隨插即用」設置，非常適合多相反應；幾乎不需要專業知識就能允許化學家探索連續流動處理。

套組包括：

5 個體積7.5 mL 的f Reactor MAXI HASTELLOY 模塊
1 個帶熱電偶孔和保護屏的鋁製固定板
15 個Viton O 型環
6 個PTFE 交叉攪拌棒
20 個帶 ETFE 套圈的線圈管 PEEK 接頭
15 個 Tefzel 盲蓋
2.5 m PTFE管
1 個管切割器
1 個六角扳手

有關 fReactor 平台的更多資訊，包括使用該平台進行的不同反應類型的示例，請參見：Org. Process Res. Dev. 2017, 21, 9, 1294-1301.
有關流動化學原理以及 fReactor 平台如何融入其中的更多資訊，請參考 www.freactor.com
使用我們還提供的以下附件完成您的設置：

Kalrez O 形環
背壓調節器
洩壓閥
加熱板攪拌器
注射泵

fReactor MAXI HASTELLOY kit includes 5 x Continuous Stirred Tank Reactors (CSTR) of 7.5 mL volume each, manufactured from Hastelloy.

Heating and mixing are provided by a standard magnetic hotplate stirrer and fluidic pumps (e.g. HPLC, syringe, peristaltic, gear) are used to drive the reagents around the modules.

Integrating the efficiency of pipe-flow processing with the advanced mixing of a CSTR, the fReactor range delivers a general “plug-and-play” setup which is well-suited to multiphasic reactions; allowing chemists to explore continuous-flow processing, with little expertise required.

Kit comprises:

5 x fReactor MAXI HASTELLOY modules (7.5 mL volume each)
1 x aluminium holding plate with thermocouple hole & protective screen
15 x Viton o-rings
6 x PTFE cross stirrer bars
20 x flangeless PEEK fittings with ETFE ferrules
15 x Tefzel blanking plugs
2.5 m x PTFE tubing
1 x tube cutter
1 x hex key

Further information on the fReactor platform, including examples of different reaction types conducted using the platform, can be found in: Org. Process Res. Dev. 2017, 21, 9, 1294-1301.

For further information on the principles of flow chemistry and how the fReactor platform fits into this please visit www.freactor.com

Complete your setup with the following accessories that we also provide:
