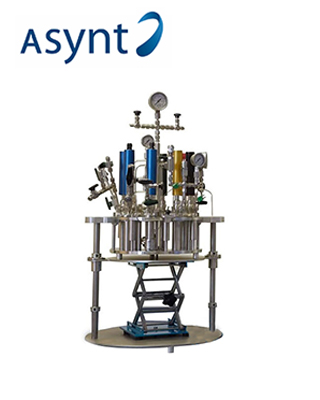

Multicell-PLUS Parallel High Pressure Reactor
新的Multicell-PLUS是Asynt系列壓力反應器的一個補充為科學家提供了一種極其靈活和可訂製的設計，可用於在高壓條件下並行篩選化學反應。
可提供多種電池體積和配置，額定壓力為200 Bar，工作溫度為300°C以上，具體取決於所選選項。
許多工廠添加選項可用於加熱、冷卻、攪拌、採樣/添加、冷凝、液體充電、氣體採樣等等。擁有如此豐富的選擇，請聯繫我們討論您的化學要求，以便我們可以完美地依照您的需求來訂製系統。
- 每個 Multicell-PLUS 在英國單獨製造以滿足您的特定要求
- 標準採用316不銹鋼製造，但可提供替代材料以實現更高的溫度和更高的耐化學性
- 強烈推薦用於支撐框架和實驗室千斤頂的選項
- 獨特的Multicell-Plus安全聯鎖裝置
- 可選的電機驅動磁耦合頂置攪拌以處理更高黏度的材料
- 8 x 30 mL單元作為標準配置，但也可以配置4、6 和 10個單元，單個單元體積高達100 mL
- 標準裝置的工作壓力高達50 barg，溫度高達200 ºC
- 高達200 Bar和300 °C及更高溫度的選項
- 4 和 6 節單元的緊湊尺寸為 Ø220 mL，8 節和 10 節20單元組件的尺寸為 Ø310 mm
- 入門級 Multicell-PLUS 允許用一個通用進氣口供應並連接到所有容器。
- 每個單元的可選獨立隔離提供了為每個容器充電不同化學和壓力的能力，而不會在單元之間產生交叉污染
- 可以通過加熱板攪拌器加熱，但也可以使用其他幾種加熱和冷卻方法
- 關於許多其他的可用選項，請聯繫我們來討論您的要求
Multiple cell volumes and configurations available, with pressure rating to 200 barg and working temperatures to 300°C and beyond depending on options selected.
Numerous factory-addition options available for heating, cooling, agitation, sampling/additions, condensing, liquid charging, gas sampling and much more. With such a huge wealth of options please do get in touch to discuss your chemistry requirements so we can tailor your system perfectly to meet your requirements.
- Every Multicell-PLUS manufactured individually in the UK to suit your specific requirements
- Manufactured from 316 stainless steel as standard but alternative materials available to allow higher temperatures and greater chemical resistance
- Highly recommended option for support frame and lab jack
- Unique Multicell-Plus safety interlock
- Optional motor-driven magnetically coupled overhead stirring to handle higher viscosity materials
- 8 x 30 mL cells as standard, but 4, 6, and 10 cell arrangements possible with individual cell volumes up to 100 mL
- Standard unit operates up to 50 barg and temperatures up to 200 ºC
- Options up to 200 barg and temperatures of 300 ºC and beyond
- Compact footprint of Ø220 mm for 4 & 6 cells units & Ø310 mm for the 8 & 10 cell assemblies
- Entry level Multicell-PLUS permits a common gas inlet supply allowing for a single gas inlet and connection to all vessels.
- Optional independent isolation of each cell offers ability to charge each vessel with a differing chemistry and pressures without cross contamination between cells
- Heating possible by hotplate stirrer but several other methods of heating & cooling possible
- Many other options available – please discuss your requirements
