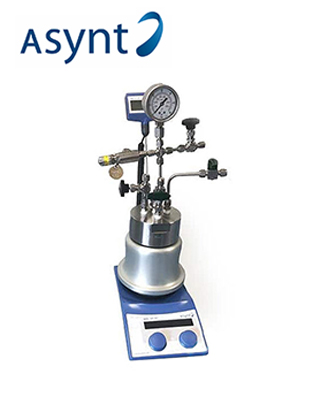

High pressure single reactors
在中小型型號中，整個容器是一個簡單但非常有效的裝置，只需用手從加熱器中取出，無需精心設置。通過DrySync轉接器底座可以安全地安裝在磁性加熱板攪拌器上。
這些單位置反應器提供多種標準尺寸和兩種方便的壓力等級，通過一系列附件和選項提供極大的靈活性。您可以從各種構建材料中進行選擇來滿足您所需的溫度範圍和耐化學性，但您也可以使用多位置插件、硼矽酸鹽或 PTFE 容器內襯、替代O 形圈等。
緊密型高壓單反應器還有另一個有用特性，因為每個反應器都是按照您的規格製造的，您可以輕鬆地重新定位壓力表來適應比平時更高的溫度，或更改特定端口上的配件以適應您的設備，或進行任意小而重要的數量更改以滿足您的需求。
標準規格對許多科學家來說非常有用，但是這些也可以作為完全定製的反應器系統來滿足您的需求。
- 通過磁性熱板攪拌器和標配磁力棒進行加熱和攪拌
- 通過PT100進行溫度控制
- 通過DrySync轉接器將設備固定到您的電熱板上
- 故障安全機制和爆破片
- 適用於均相和非均相催化研究
- 氣體插入進料非常適合氫化反應
- 清潔、安全的整合，無需油作為加熱介質
- 標準低壓模型的設計壓力為55 barg，工作壓力為50 barg
- 標準高壓模型的設計壓力為200 barg，工作壓力為180 barg
- 316不銹鋼或哈氏合金C276，但可根據要求提供其他選項
Available in a wide range of standard sizes in two handy pressure ratings, these single position reactors offer great flexibility through a range of accessories and options. You can choose from various build materials to suit your required temperature range and chemical resistance, but you can also incorporate multi-position inserts, borosilicate or PTFE vessel liners, alternative o-rings, and much more.
Another useful feature of the compact high pressure single reactors is that, because every one is manufactured to your specification, you can easily re-site the gauge to accommodate higher temperatures than usual, or alter the fittings on a particular port to suit your apparatus, or make any number of small but significant changes to suit your needs.
The standard specifications are incredibly useful to many scientists, however these are also available as an entirely bespoke reactor system to suit your needs.
- Heating and agitation via magnetic hotplate stirrer as standard with magnetic flea
- Temperature control via PT100
- Secure fitment to your hotplate via DrySyn adapter
- Fail safe mechanism and bursting disc
- Ideal for homogeneous and heterogeneous catalysis studies
- Gas insertion feed excellent for hydrogenation reactions
- Clean, safe synthesis without the requirement of oil as your heating media
- Standard low pressure models have design pressure of 55 barg, operating pressure of 50 barg.
- Standard high pressure models have design pressure of 200 barg, operating pressure of 180 barg.
- 316 stainless steel or Hastelloy C276 but other options available upon request
