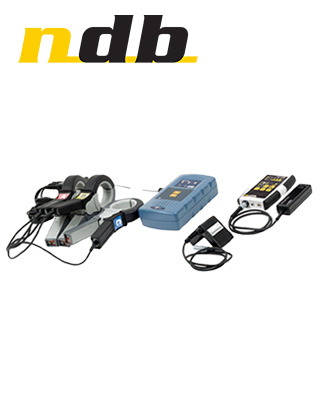

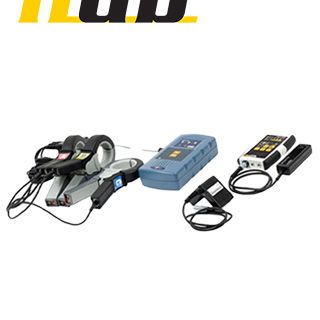

語音型停電電纜相位識別儀
Cable identification & phasing
產品型號：VCi-3™
VCi-3™ 系統設計用於電纜和相位識別，主要用於停電期間三相電網的安裝或維護。
發射器通過直接接觸或磁力夾鉗方法在電纜導體上注入低電流。用戶可錄製語音信息，並與數位信號一起傳輸。測試期間，三相電路兩端的接地保持連接。檢測器用於電纜系統的另一端。
發射器通過直接接觸或磁力夾鉗方法在電纜導體上注入低電流。用戶可錄製語音信息，並與數位信號一起傳輸。測試期間，三相電路兩端的接地保持連接。檢測器用於電纜系統的另一端。
VCi-3™ 系統設計用於電纜和相位識別，主要用於停電期間三相電網的安裝或維護。
發射器通過直接接觸或磁力夾鉗方法在電纜導體上注入低電流。用戶可錄製語音信息，並與數位信號一起傳輸。測試期間，三相電路兩端的接地保持連接。檢測器用於電纜系統的另一端。
產品介紹影片
發射器
| Tone Frequencies | 580Hz, 620Hz and 680Hz |
| Vocal message bandwidth | 300Hz to 3000Hz |
| Battery autonomy | 8 hours |
| Battery | 7x AA type NiMH |
| Dimensions | 210 x 130 x 55mm |
| Weight | 750g |
| Operating temperatures | -10°C to 45°C (14°F to 113°F) |
| Storage temperatures | -20°C to 45°C (-4°F to 113°F) |
| Charging temperatures | 0°C to 45°C (32°F to 113°F) |
| Relative humidity | 95% non-condensing at 50°C |
| IP rating | Splash and dust proof (IP-54) |
| Approval | CE |
接收器
| Battery | Li-Ion 3.7V 900mA |
| Battery autonomy | 4 hours |
| Charge time | 5 hours |
| Vocal message bandwidth | 300Hz to 3000Hz |
| Dimensions | 130x75x26mm / 5.12x2.95x1.02 in |
| Weight | 170 g |
| Operating temperatures | -10°C to 45°C (14°F to 113°F) |
| Storage temperatures | -20°C to 45°C (-4°F to 113°F) |
| Charge temperatures | 0°C to 45°C (32°F to 113°F) |
| Approval | CE |
The VCi-3™ system is designed for cable and phase identification, mainly for installation or maintenance purposes on three-phase electrical networks during power shutdowns.
The transmitter module injects a low current on the cable conductors by direct contact or magnetic clamps methods. A voice message is recorded by the user and will be transmitted along with digital signals. Groundings stay connected at both ends of the three-phase circuit during the test. The detector module is used at the other end of the cable system.
Introduction Video
Transmitter Technical
| Tone Frequencies | 580Hz, 620Hz and 680Hz |
| Vocal message bandwidth | 300Hz to 3000Hz |
| Battery autonomy | 8 hours |
| Battery | 7x AA type NiMH |
| Dimensions | 210 x 130 x 55mm |
| Weight | 750g |
| Operating temperatures | -10°C to 45°C (14°F to 113°F) |
| Storage temperatures | -20°C to 45°C (-4°F to 113°F) |
| Charging temperatures | 0°C to 45°C (32°F to 113°F) |
| Relative humidity | 95% non-condensing at 50°C |
| IP rating | Splash and dust proof (IP-54) |
| Approval | CE |
Detector Technical
| Battery | Li-Ion 3.7V 900mA |
| Battery autonomy | 4 hours |
| Charge time | 5 hours |
| Vocal message bandwidth | 300Hz to 3000Hz |
| Dimensions | 130x75x26mm / 5.12x2.95x1.02 in |
| Weight | 170 g |
| Operating temperatures | -10°C to 45°C (14°F to 113°F) |
| Storage temperatures | -20°C to 45°C (-4°F to 113°F) |
| Charge temperatures | 0°C to 45°C (32°F to 113°F) |
| Approval | CE |
