2-way和3-way微流控閥及閥控制器

MUX Wire：微流控閥控制器

MUX Wire第三版（V3）微流控閥控制器通過相同的軟體界面與Elveflow的所有微流控閥和設備形成完美結合。

它配備了內部和外部觸發連接器，使其與設置中的其它設備，如顯微鏡或分析儀器同步。

微流控閥控制器上的LED指示燈顯示每個閥門的類型和狀態，便於使用、視覺化和控制您設置中的所有閥門。

智慧型的微流控閥

智慧型微流控閥可以通過Elveflow的軟體界面（ESI）單獨或同時控制。一旦插入MUX Wire，ESI就會自動檢測到這些微流控閥。

有三種微流控閥型號可供選擇。微流控閥型號與能應用的壓力有關--高壓（~ 6巴）、低壓（~ 3巴）和低容量（用於低內部容積要求）。

微流控閥的類型表示流路和閥的常開（NO）或關閉（NC）狀態。 MUX Wire（V3）提供三種類型的微流控閥：2/2 NO、2/2 NC和3/2 way微流控閥。

微流控閥型號和類型的組合提供了不同的可能性，以滿足特定的設置要求。

MUX WIRE: MICROFLUIDIC VALVE CONTROLLER

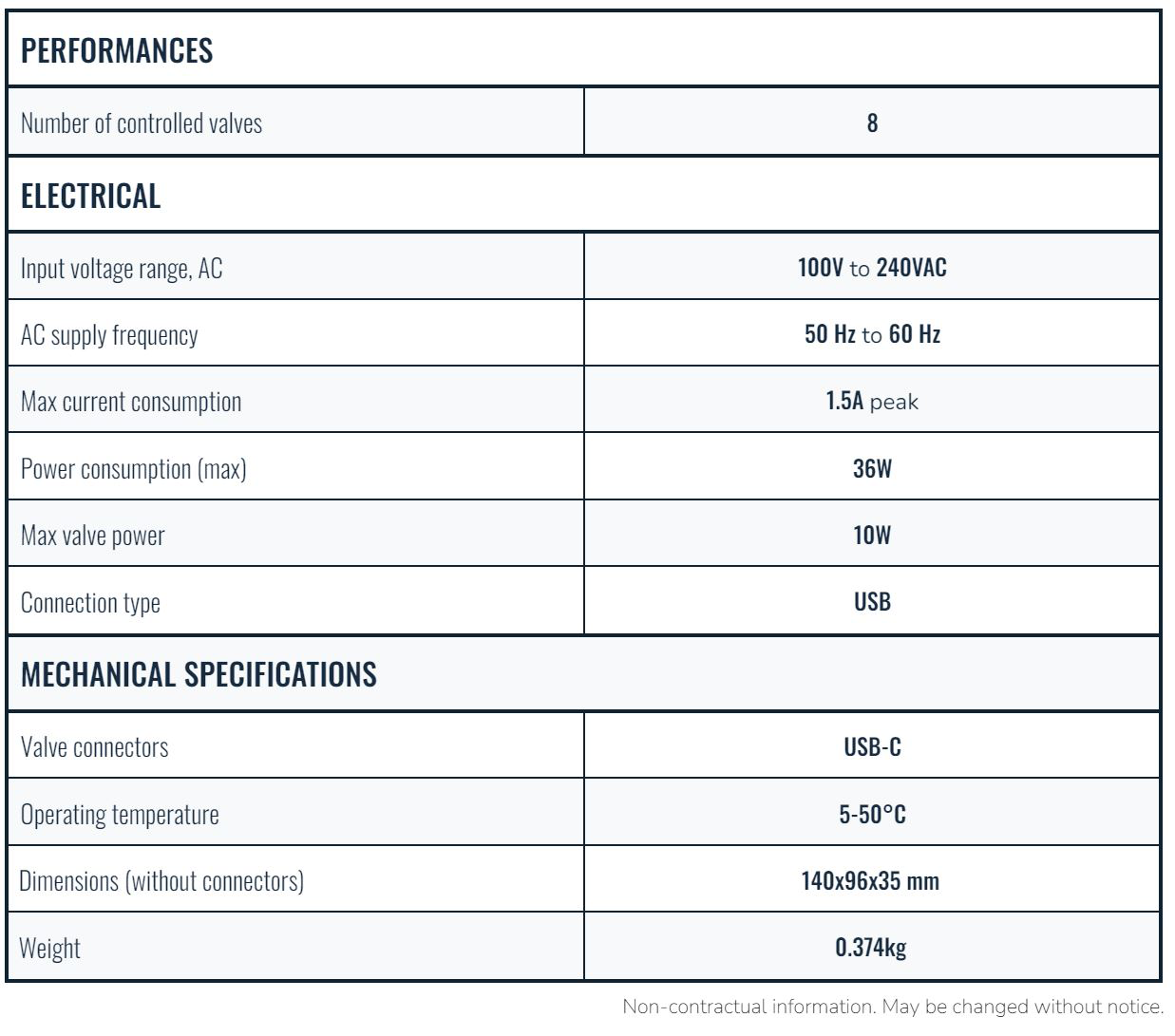

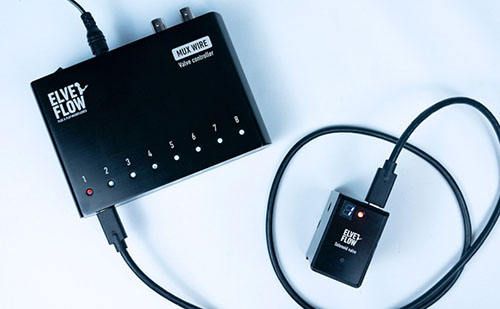

The MUX Wire version 3 (V3) microfluidic valve controller works perfectly with all of Elveflow’s microfluidic valves and devices through the same software interface.

It is equipped with internal and external trigger connectors that synchronize it with the other equipment in the setup, such as microscopes or analytical instruments.

The LED indicator on the microfluidic valve controller displays each valve’s type and status, facilitating the use, visualization, and control of all the valves in your setup.

SMART VALVES
Smart valves can be independently or simultaneously controlled through Elveflow’s software interface (ESI). The ESI automatically detects these valves once plugged into the Mux Wire.

three types of smart valves

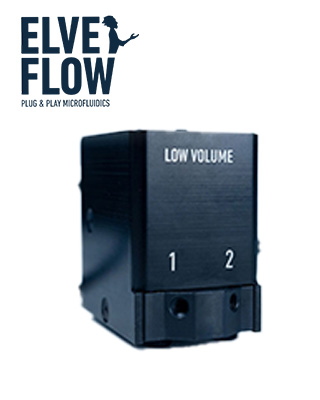

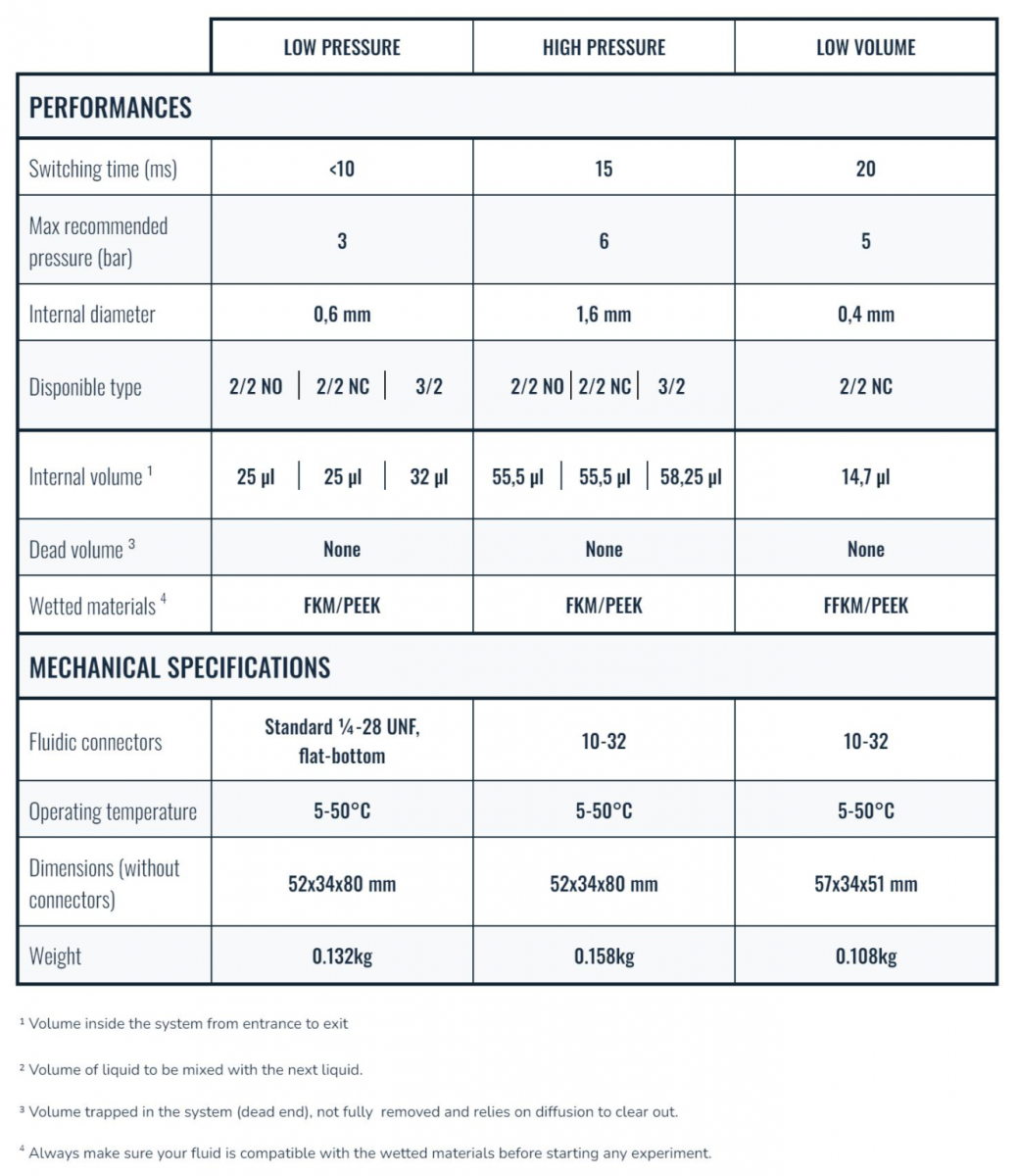

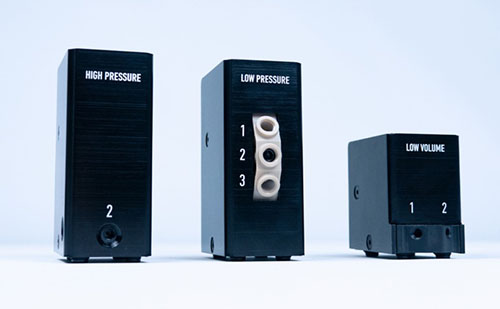

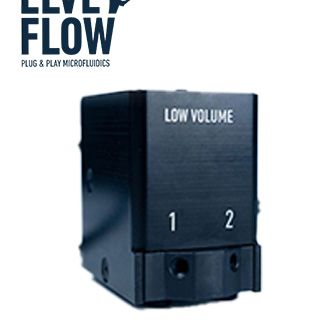

Three microfluidic valve models are available. The valve model relates to the supported pressure – high pressure (until 6 bars), low pressure (until 3 bars), and low volume (for low internal volume requirements).

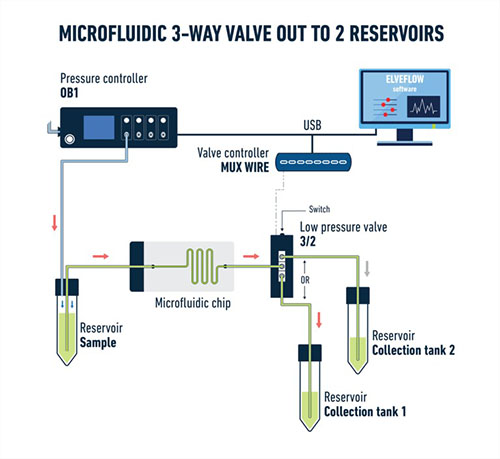

The valve type indicates the flow path and the normally open (NO) or closed (NC) state of the valve. The V3 range offers three types of valves: 2/2 NO, 2/2 NC, and 3/2 valves.

The combination of valve models and valve types gives different possibilities to fulfill specific setup requirements.

Contact our experts for the valve that perfectly fits your needs!
