Uni-to-PAT-Adapter

產品型號：Uni-to-PAT-Adapter

Universal adapter for using third party test cells in the PAT system

分享：

加入洽詢

產品特點
規格

Universal adapter for using third party test cells in the PAT system

Product description

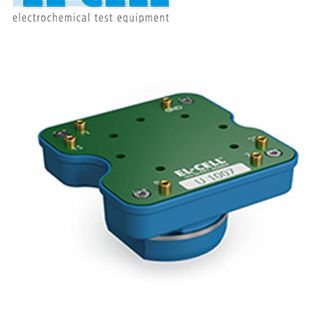

The Uni-to-PAT adapter is an universal connection adapter that allows third-party battery test cells to be connected directly to the PAT socket of the PAT series potentiostats and docking stations.
Use your T-cell, split cell or any other third-party test cell for 2- or 3-electrode tests directly in a PAT-Tester-i-16 or PAT-Tester-x-8. Benefit from the easy handling and advanced features such as the Connection Matrix, that enable software-controlled switching between half- and full-cell measurements without reconnecting any cables.

The mounted test cell is connected to the adapter via short cell cables with 2 mm jack plugs. Like our PAT-Cells, the Uni-to-PAT adapter has an integrated PAT-Button, which enables automatic recognition of the cell ID in the PAT-Tester-i-16 or PAT-Tester-x-8 potentiostats.

We offer customized holders for various popular cell types, which are simply screwed onto the adapter. Just ask us for details or if you need a customized solution.

Gallery

08-06-Uni-01

EL-CELL PAT-Tester-x-8 potentiostat with connected Uni-to-PAT-Adapter and T-Cells.

08-06-Uni-02

EL-CELL Uni-to-PAT-Adapter with attached T-Cell holder.

08-06-Uni-03

EL-Cell Uni-to-PAT-Adapters mounted with different third party battery test cells

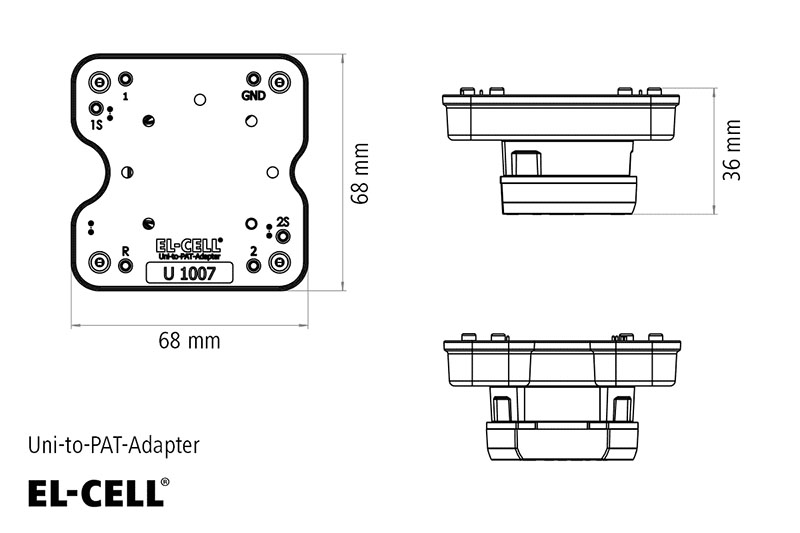

Uni-to-PAT-Adapter
Height	36 mm
Width	68 mm
Depth	68 mm

08-06-Uni-04
