陽光照射模擬系統
Sunlight Irradiation System
產品型號：SXL-3000V2
能以強度等同於自然太陽光的光線，輕鬆進行輻照測試，例如光毒性測試。

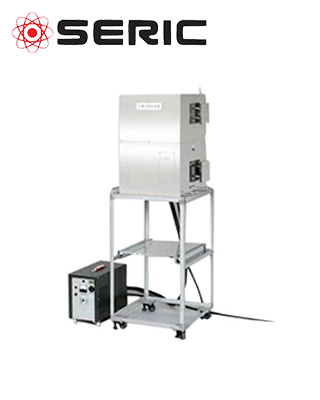

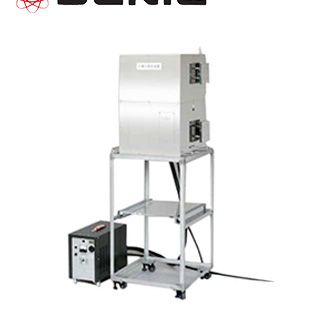

本系統是能精準產生自然太陽光的光線照射器。
輻射光中的UV-A輻射值是2.5mW/cm2或以上。
本系統是能精準產生自然太陽光的光線照射器。
輻射光中的UV-A輻射值是2.5mW/cm2或以上。
- 能以強度等同於自然太陽光的光線，輕鬆進行輻照測試，例如光毒性測試。
- 本系統是能精準產生自然太陽光的光線照射器。
- 輻射光中的UV-A輻射值是2.5 mW/cm2或以上。
- 由紅外線輻射引起的熱能，幾乎已被完全切斷。
- 可以在輻照度控制範圍內進行平滑的輻照度調整。
- 可以調整照射台的高度，以便調整照射距離。
|
機型 |
SXL-3000V2 |
|
輸入電源 |
3相200V 50/60Hz |
|
輸入電流 |
15A |
|
有效的照射面積 |
350×350mm |
|
UV-A輻照度 |
2.5 mW/cm2或更大(31 – 400 nm) |
|
輻照度調整範圍 |
100 – 50% (平滑的) |
|
空間不均勻度 |
±15%或更低 |
|
控制型式 |
手動 |
|
冷卻型式 |
強制氣冷式 |
|
操作溫度範圍 |
0～30℃ |
- 詳細規格、配件、軟體及選購，歡迎洽詢。
- Easily perform irradiation testing with light that has intensity equal to natural sunlight.
- Phototoxicity testing: Sunlight Irradiation System SXL-3000V2
- This system is a light irradiator that accurately reproduces natural sunlight.
- The UV-A radiation value in the emitted light is 2.5 mW/cm2 or more.
- Heat caused by infrared radiation has been almost completely cut out.
- Stepless irradiance adjustment is possible within the irradiance control range.
- The stage height can be changed to adjust the irradiance distance.
|
Name |
Sunlight Irradiation System |
|
Model |
SXL-3000V2 |
|
Input power |
3φ200V 50/60Hz |
|
Input current |
15A |
|
Effective irradiation range |
350×350mm |
|
UV-A irradiance |
2.5 mW/cm2 or more (315 – 400 nm) |
|
Irradiance adjustment range |
100 – 50% (stepless) |
|
Spatial unevenness |
±15% or less |
|
Control type |
Manual |
|
Cooling type |
Forced air cooling |
|
Service temperature range |
0～30℃ |
- Please feel free to contact for detailed specifications, accessories, software, and options.
