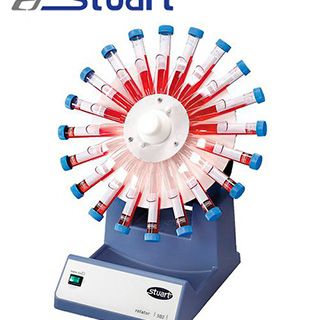

SB Tube Rotators
•Choice of tube holders to hold a number of different sized tubes
•Spillage tray
•SB2 comes with fixed 20rpm speed
•SB3 comes with adjustable speed between 2 and 40rpm
The SB rotators give gentle but effective mixing, ideal for keeping biological samples in suspension e.g. blood, aerating cultures and for general mixing applications.
The rotators can be used in incubators up to 40°C and in cold rooms down to 4°C. The angle of rotation is fully adjustable with a scale to measure and reproduce the mixing angle, from horizontal for minimal mixing to vertical for full end-over-end mixing. An integral tray catches any spillage from the rotating tubes
SB2
The SB2 rotator has a constant speed of 20rpm
SB3
The SB3 has a digital timer and speed display allowing procedures to be accurately repeated for optimal results.
A choice of six tubes holders are available to fulfill most applications. It is possible to use two tube holders simultaneously with our dual holder accessory.
Holder must be ordered separately.
Tube holders
Choice of six types
Quick and easy loading and removal of tubes
End-over-end or rolling action
SB3/DUAL available to allow any two tube holders to be used simultaneously
| SB2 | SB3 | |
| Speed range | Fixed at 20rpm | 2 to 40rpm |
| Speed control | NA | Digital |
| Timer | NA | 1 to 999 minutes |
| Dimensions (w x d x h) | 200 x 270 x 230mm | 200 x 270 x 230 mm |
| Net weight | 3.2kg | 3.2kg |
| Electrical supply | 230V, 50Hz, 50W | 230V, 50Hz, 50W |
