Quick Connect Set for PAT-Cell-Gas

產品型號：Quick Connect Set for PAT-Cell-Gas

Quick couplings for easy connection of the PAT-Cell-Gas

分享：

加入洽詢

產品特點

Quick couplings for easy connection of the PAT-Cell-Gas

Product description

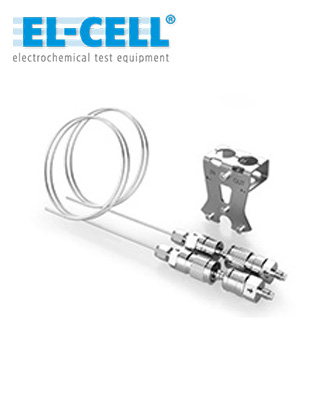

In test mode, the cell must be connected outside the glovebox with the carrier gas supply and a gas meter. This quick connect set with self-locking couplings is suitable for this purpose.The set includes two self locking couplings (Swagelok®) with 500 mm stainless steel tubes 1/16 inch x 0.02 inch. Compatible with 1/16 inch Swagelok® Tube Fitting.

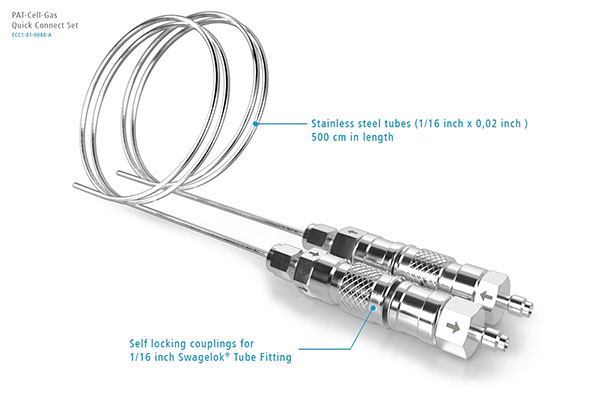

08-03-Quick Connect Set-01

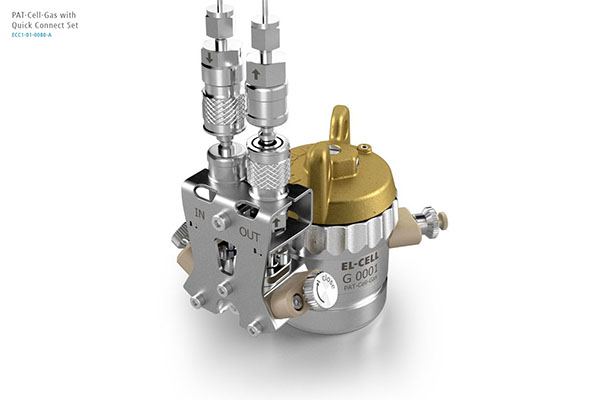

08-03-Quick Connect Set-02
