PAT-Tester-x-8
•Up to 8 independent channels for PAT-series and other test cells
•Each channel with fully featured potentiostat / galvanostat /
•impedance analyzer
Fully featured potentiostat / galvanostat / impedance analyzer with up to 8 channels for small scale and special purpose testing.
The individual test solution
The PAT-Tester-x-8 is the perfect choice for small scale and special purpose testing. It brings the same battery tester hardware and software as the PAT-Tester-i-16. However the test channels are separated into individual devices, the so-called PAT-Channel-1. Each PAT-Channel-1 features a fully equipped galvanostat / potentiostat / impedance analyzer. Up to 8 PAT-Channels may connect to one single PAT-Controller-8 which serves as the control unit for storing all measurement data and enabling communication with the EL-Software server. That way each channel of the PAT-Tester-x-8 can be controlled from any client PC in the same network via EL-Software.
The individual PAT-Channels can be placed where they are needed: on the bench, in a climate chamber, or even inside the glove box. While tailored for PAT-Cells, each PAT-Channel-1 can also connect to almost any other test cell including the ECD dilatometer, optical ECC in-situ cells and all other small format cell (e.g. coin cells, pouch cells, T-cells).

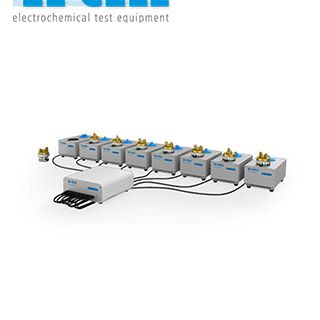

PAT-Tester-x-8 setup with 6 PAT-Channels
PAT-Tester-x-8 setup with 4 PAT-Channels inside the glove box
Single-channel setup with ECD-3 Dilatometer
PAT-Tester-x-8 setup with 4 PAT-Channels and PAT-Heater-4
Accuracy Contour Plot
General
| # Channels per device | 1 to 8 |
| Voltage | -7 V to +7 V |
| Current | ±100 mA |
| Cell connection / Electrode connection | 3 electrodes plus sense wires, switch matrix |
| ADC | 2 x 24 Bit |
| DAC | 1 x 18 Bit |
| Bandwidth ranges (Stability Factor) | 500 kHz (fast) |
| 50 kHz (medium) | |
| 5 kHz (slow) | |
| Acquisition Time (Time Base) | 1 ms |
| Internal Sample Buffer | 100 GByte |
| Computer Interface | 1 GBit Ethernet |
| Runs standalone | |
| Multiuser |
Voltage
| Acquisition of ... | Full cell voltage |
| Both half cell voltages | |
| Auxiliary voltage | |
| Measurement Accuracy | ±0.02% of FSR |
| Control Resolution | 57 μV (18 Bit) |
Current
| Current Ranges | ±100 mA |
| ±10 mA | |
| ±1 mA | |
| ±100 μA | |
| Autorange | |
| Measurement Noise floor | <1 μA @ 100mA |
| <100 nA @ 10mA | |
| <10 nA @ 1mA | |
| <1 nA @ 100μA | |
| Measurement Accuracy | ±0.05% of FSR |
| Control Resolution | 1 nA min. (18 Bit) |
Impedance (each channel)
| Frequency range | 100 μHz to 100 kHz |
| Impedance mode | PEIS and GEIS (simultaneous measurement of full- and half-cell impedances |
| Impedance range | 1 mΩ to 100 MΩ |
