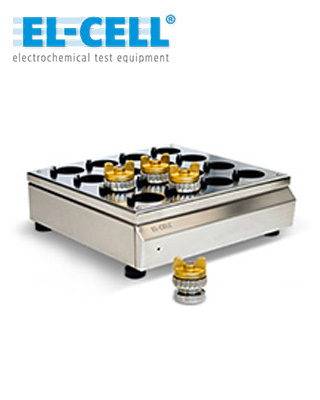

PAT-Stand-16
•4×4 docking station for up to 16 PAT-Cells
•Integrated data logger for recording half cell voltages and temperature
•Can be placed on the bench or inside temperature chamber

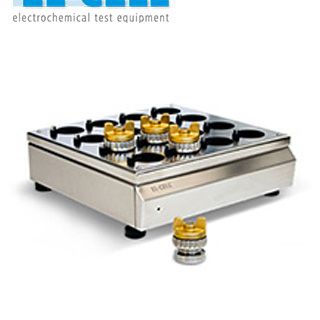

The high throughput docking station for up to 16 PAT-Cells
Product description
The PAT-Stand-16 is the docking station for up to 16 PAT-Cells in 4 x 4 matrix. The PAT-Stand-16 has a built-in data logger recording full and half cell voltages, cell current, tray temperature and time. The PAT-Stand-16 can be connected permanently to a usual multi-channel potentiostat (like the Biologic MPG-2 or VMP300) or battery tester (like the Maccor 4000).
This way, the PAT-Stand-16 saves wiring effort, because it is not necessary to renew the connection of cell and potentiostat for every battery test. The PAT-Stand-16 fits nicely into a usual climate chamber (for example Binder KB53), which saves space in the lab.
All these features make the PAT-Stand-16 with the PAT-Cells the optimal solution for high throughput battery testing.
Schematic view of a connected PAT-Stand-16 setup

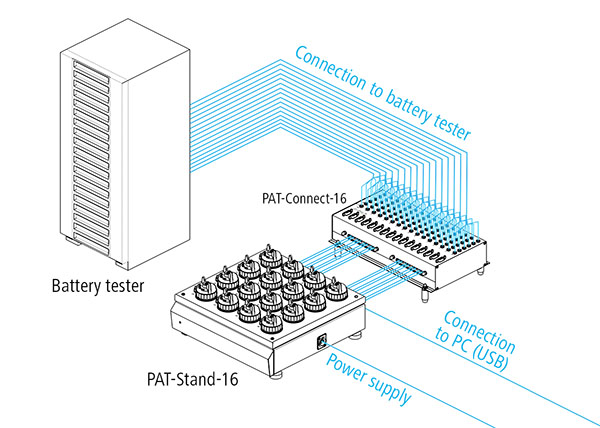

Schematic view of a connected PAT-Stand-16 with PAT-Connect-16 for flexible wiring
Gallery

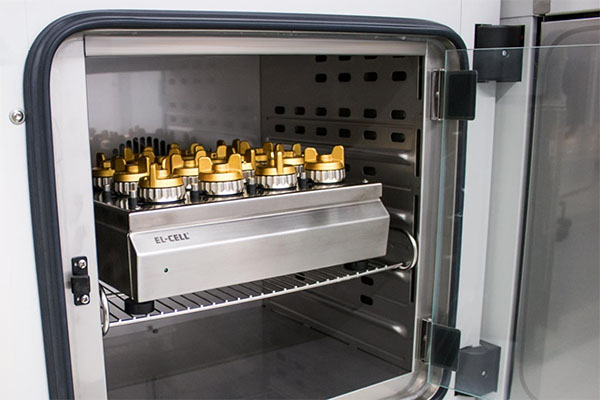

Testing with the PAT-Stand-16. The PAT-Stand-16 fits nicely into usual climate chambers.

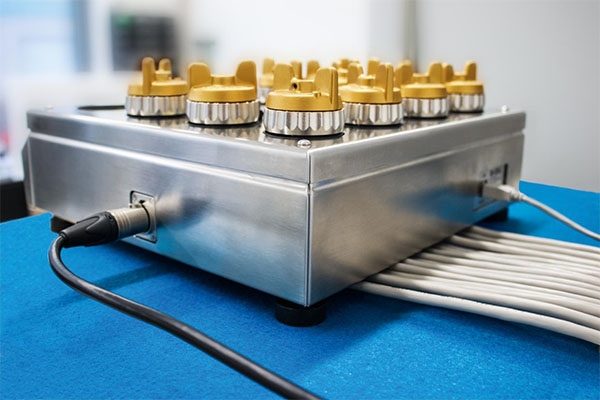

The PAT-Stand-16 can be left permanently connected to a multichannel potentiostat. There is no need for connecting cables each time a new test is started.

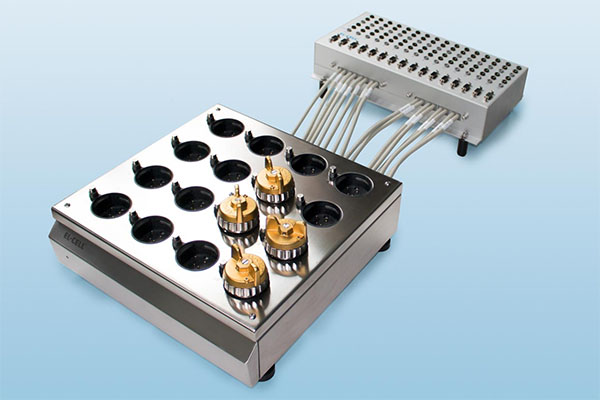

PAT-Stand-16 connected to a PAT-Connect-16.
| Height | 120/148 mm (without/with cells) |
| Width | 315 mm |
| Depth | 315 mm |
| Weight | 6.9 kg (without cells) |
| Temperature resistance | -20 to 70° C |
| Name | # Cell connections (PAT Socket) | Operational temperature | Temperature controlled cell chamber | Charge / Discharge / EIS* | Data Logger*** | Measurements in mm (Height/Width/Length) |
|---|---|---|---|---|---|---|
| PAT-Clamp-1 | 1 | -20 - 70 ° C | Yes | 21 / 62 / 80 | ||
| PAT-Stand-1 | 1 | -20 - 70 ° C | Yes | 80 / 113 / 105 | ||
| PAT-Stand-4 | 4 | -20 - 70 ° C | Yes | 84 / 119 / 301 | ||
| PAT-Heater-4 | 4 | up to 200 ° C** | Yes | 230 / 265 / 400 | ||
| PAT-Stand-16 | 16 | -20 - 70 ° C | Yes | Yes | 120 / 315 / 315 | |
| PAT-Chamber-16 | 16 | 10-80 ° C | Yes | Yes | 375 / 640 / 380 |
* Compatible with any PAT series test cell
** 10 °C above average room temperature to 200 °C
*** Independent data acquisition of cell data (current, full- and half-cell voltages), pressure (only PAT-Chamber-16) and temperature. EC-Link monitoring software is provided.
