PAT-Press-Box

產品型號：PAT-Press-Box

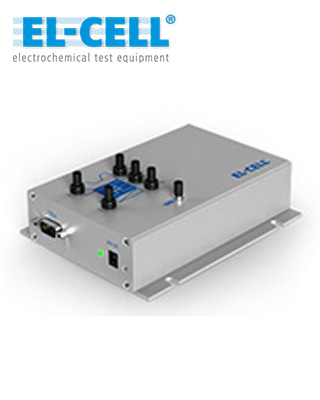

Box with data logger for gas pressure measurements with PAT series test cells

分享：

加入洽詢

產品特點
規格

Box with data logger for gas pressure measurements with PAT series test cells

Product description
The PAT-Press-Box is required to read and record the analog pressure signal of a PAT series test cell when the cell is used in a docking station that does not provide this functionality itself. The box is placed between the docking station and the used potentiostat. The integrated data logger records the pressure signal and transmits it to the connected PC. It can then be displayed with the supplied EC-Link software.

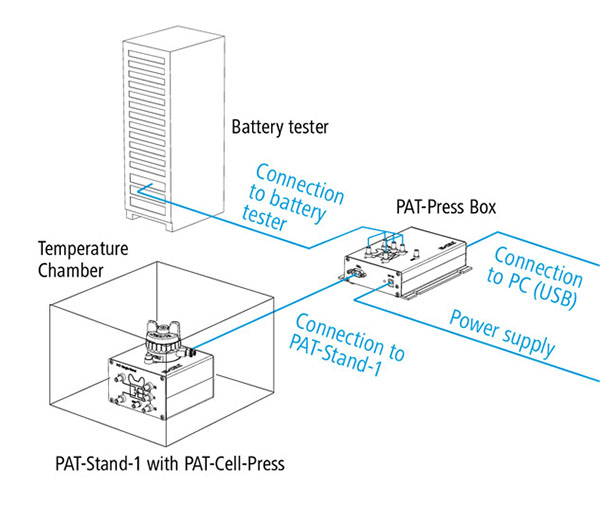

Schematic view of a connected PAT-Press-Box

08-02-PAT-Press-Box-01

PAT-Press-Box
Height	40 mm
Width	160 mm
Depth	130 mm
Weight	0.6 kg
Resolution of pressure signal	< 0.2 mbar; linearity < 0.5% FS
Resolution of temperature signal	< 0.01 °C; linearity < 0.5% FS

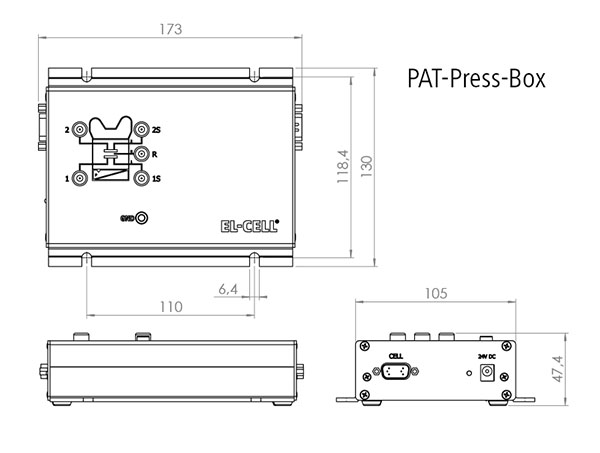

08-02-PAT-Press-Box-02
