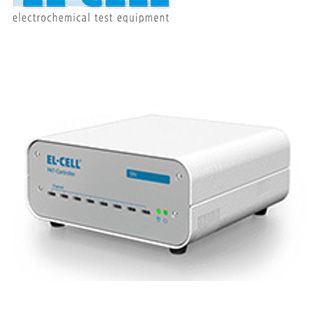

PAT-Controller-8

產品型號：PAT-Controller-8

Control box for the PAT-Tester-x with internal data storage and USB ports for up to 8 PAT-Channel-1.

分享：

加入洽詢

產品特點
規格

Control box for up to 8 PAT-Channel-1

Product description
The PAT-Controller-8 is the central control box of the PAT-Tester-x which stores all measurement data and enables communication with the EL-Software server. It has a built-in hard disk, a network port for server communication and 8 USB Type C ports for connection to the PAT-Channel-1. Up to eight PAT-Channel-1 with integrated PStat/GStat/EIS can be operated with one PAT-Controller-8.

05-03-PAT-Controller-8-01

05-03-PAT-Controller-8-02

Length	168 mm
Height	78 mm
Width	170 mm
Weight	1.7 kg
Humidity	Non-condensing

05-03-PAT-Controller-8-03
