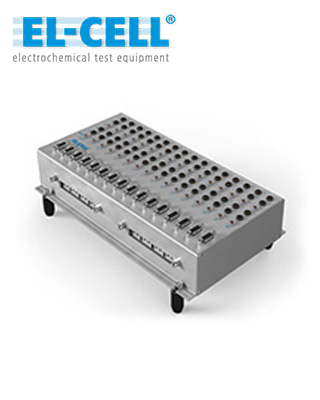

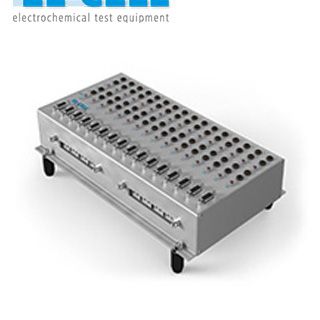

PAT-Connect-16
•Easy-to-access banana sockets for cell signals: current, full-, and half-cell voltages
•Sub-D Connector for optional auxiliary signals: buffered half cell voltages, temperature, sensor signals
Adapter box for flexible wiring connections
Product description
The PAT-Connect-16 is an intermediate box between the PAT-Stand-16 / PAT-Chamber-16 and your potentiostat / battery tester. It enables flexible rewiring in order to switch between operation modes (full cell, cathode half cell, anode half cell) without manipulating the cable connection between adapter box and stand / chamber.

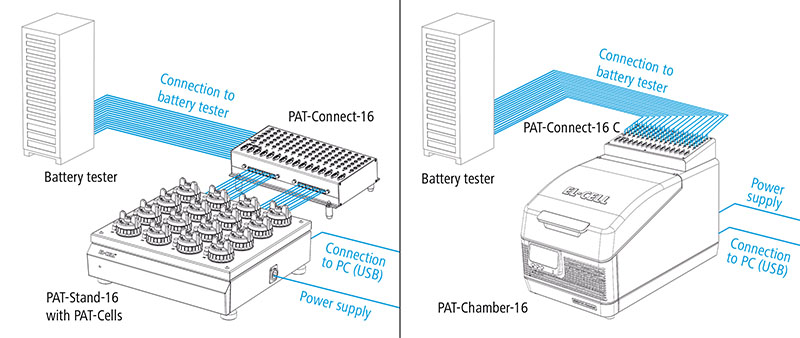

Schematic view of a connected PAT-Stand-16 and PAT-Chamber-16 with PAT-Connect-16 for flexible wiring
Gallery

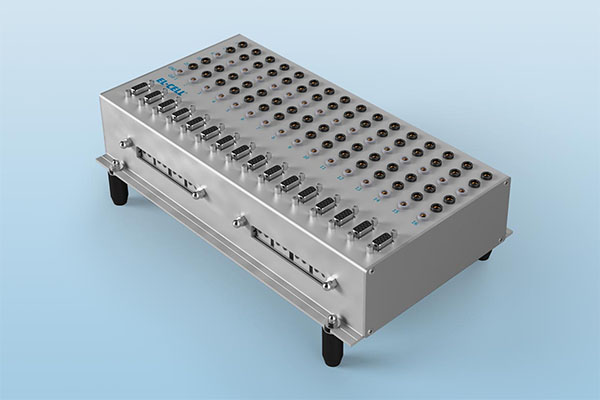

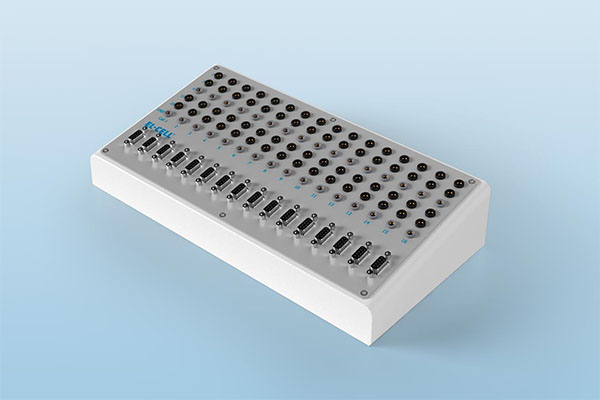

PAT-Connect-16

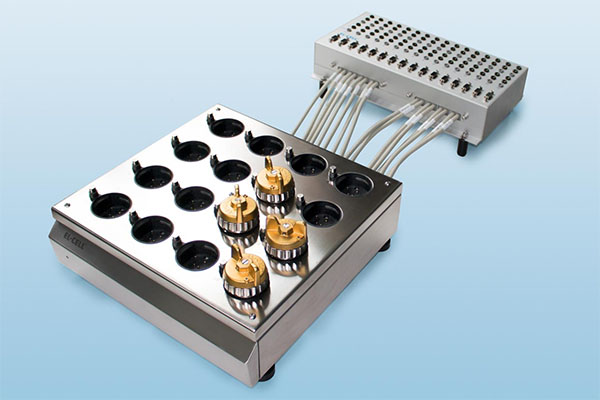

PAT-Stand-16 connected to a PAT-Connect-16.
The PAT-Connect-16 C can be attached on top of the PAT-Chamber-16

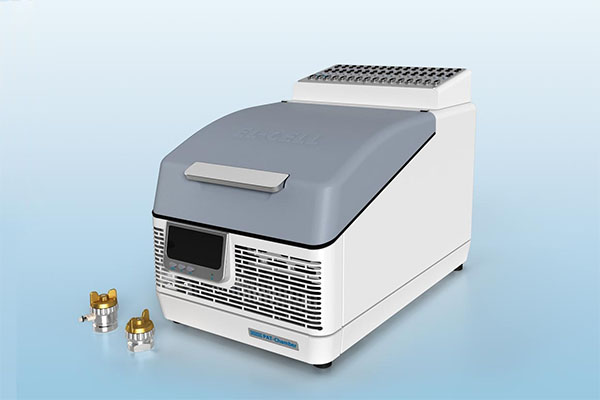

PAT-Chamber-16 with attached PAT-Connect-16 C

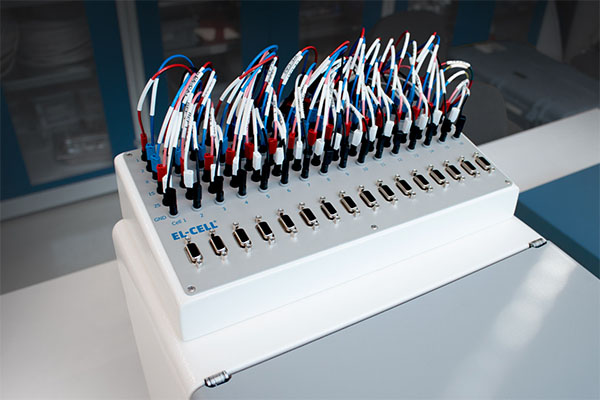

PAT-Chamber-16 C with connected cables.
Features
- Easy-to-access banana sockets for plug-in of the cell cables of the battery tester / potentiostat (sockets available for WE, WE-Sense, RE, CE, CE-Sense, and GND)
- Sub-D Connector for optional auxiliary signals: buffered half cell voltages, temperature, sensor signals
- Available as modular box (PAT-Connect-16) to be placed on the bench or fixed on the wall, or as an attachment on top of the PAT-Chamber-16 (PAT-Connect-16 C)

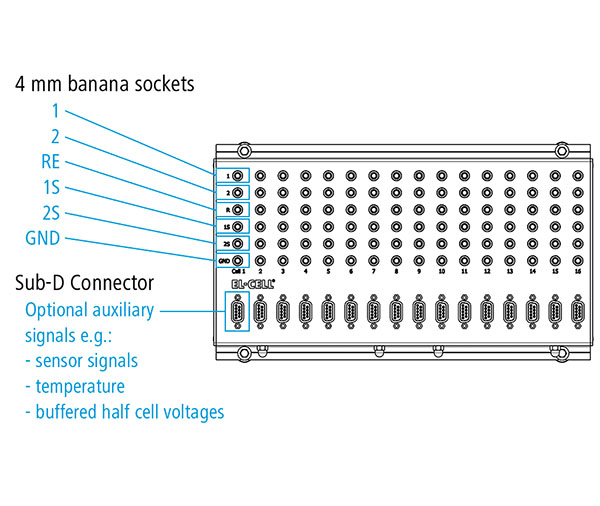

Schematic view of the PAT-Connect-16 connections

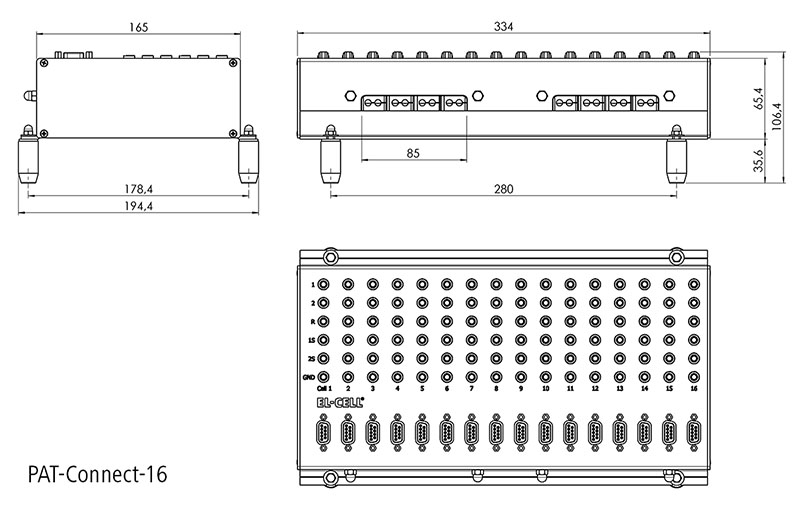

| PAT-Connect-16 | |
| Height | 106 mm |
| Width | 334 mm |
| Depth | 195 mm |

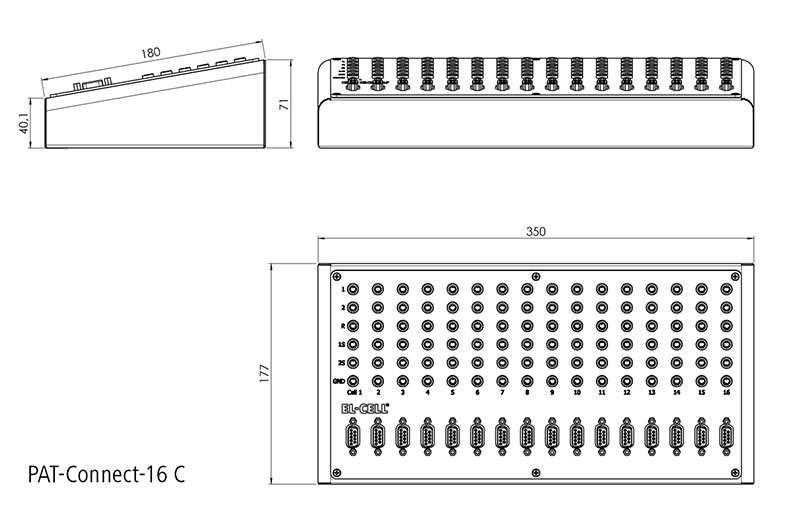

| PAT-Connect-16 C | |
| Height | 75 mm |
| Width | 350 mm |
| Depth | 177 mm |
