Single channel station for one test cell, fully equipped with PStat/GStat/EIS
Single channel station for one test cell
Product description

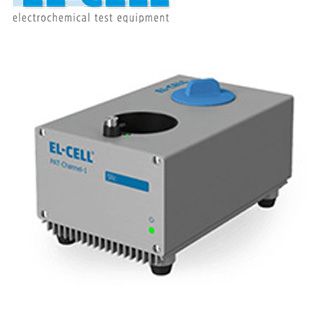

The PAT-Channel-1 is a fully featured, single channel potentiostat / galvanostat/ impedance analyzer which is operated in conjunction with a PAT-Controller. It has a docking socket for one PAT series test cell and external connectors to connect a test cell of a different type or a separate docking station.
This enables, for example, another docking station with a PAT-Cell to be tested in a temperature cabinet at elevated temperatures, that would otherwise be too high for the tester’s electronics.
Specifications
| Length | 164 mm |
| Height | 97 mm |
| Width | 105 mm |
| Weight | 1.3 kg |
| Temperature operation range | -20 to + 40 °C |
| Humidity | Non-condensing |
Accuracy Contour Plot
General
| # Channels per device | 1 |
| Voltage | -7 V to +7 V |
| Current | ±100 mA |
| Cell connection / Electrode connection | 3 electrodes plus sense wires, Connection matrix |
| ADC | 2 x 24 Bit |
| DAC | 1 x 18 Bit |
| Bandwidth ranges (Stability Factor) | 500 kHz (fast) |
| 50 kHz (medium) | |
| 5 kHz (slow) | |
| Acquisition Time (Time Base) | 1 ms |
Voltage
| Acquisition of ... | Full cell voltage |
| Both half cell voltages | |
| Auxiliary voltage | |
| Measurement Accuracy | ±0.02% of FSR |
| Control Resolution | 57 μV (18 Bit) |
Current
| Current Ranges | ±100 mA |
| ±10 mA | |
| ±1 mA | |
| ±100 μA | |
| Autorange | |
| Measurement Noise floor | <1 μA @ 100mA |
| <100 nA @ 10mA | |
| <10 nA @ 1mA | |
| <1 nA @ 100μA | |
| Measurement Accuracy | ±0.05% of FSR |
| Control Resolution | 1 nA min. (18 Bit) |
Impedance (each channel)
| Frequency range | 100 μHz to 100 kHz |
| Impedance mode | PEIS and GEIS (simultaneous measurement of full- and half-cell impedances |
| Impedance range | 1 mΩ to 100 MΩ |
