PAT-Chamber-16
•Holds up to 16 PAT-Cells or PAT-Cell-Press for pressure monitoring
•With data acquisition of cell current, cell voltage, half cell voltages, global temperature, individual cell pressure
•Compatible with all of today’s potentiostats and battery testers
Temperature-controlled docking station for PAT series test cells
Product description
The patented1 PAT-Chamber-16 adds even more comfort while conducting battery tests by combining the high throughput testing abilities of the PAT-Stand-16 with a temperature-controlled cell chamber. The integrated Peltier device enables you to test at the exact temperature you need, without using an external heat chamber.
Furthermore, it is our first high throughput docking station that is capable of utilizing both the PAT-Cell and the PAT-Cell-Press for in-situ pressure monitoring of up to 16 test cells at the same time.
The PAT-Chamber-16 is equipped with an anti-condensation system that ensures the smooth operation of the temperature chamber. A built-in condensation trap, as well as ventilation flaps controlled by humidity sensors, effectively prevent the formation of condensation water in the cell chamber, which could otherwise accumulate during heating or cooling operations.
All these features make the PAT-Chamber-16 the optimal choice for performing simultaneous battery tests with PAT-Cells and PAT-Cell-Press in a temperature-controlled environment.
Just like the PAT-Stand-16, the PAT-Chamber-16 comes with a built-in data logger recording full and half cell voltages, cell current, time, global temperature and individual cell pressure.
The PAT-Chamber-16 can be left connected permanently to all of today’s multi-channel potentiostats or battery testers. This way, you save a lot of wiring effort, because it is not necessary to renew the connection between cell and potentiostat for every battery test.
1Patent Pending. Publ. No. US 2019/0273289 A1
Gallery

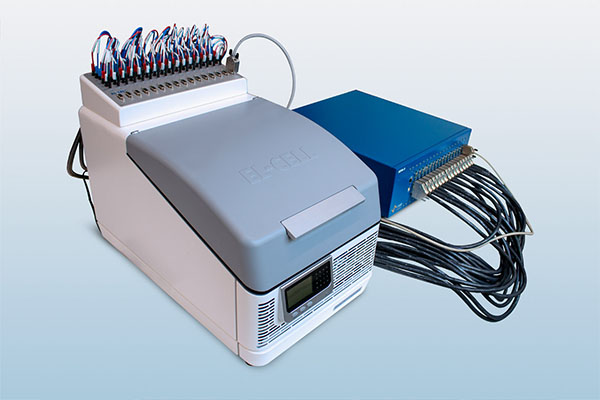

PAT-Chamber-16 with attached PAT-Connect-16 C

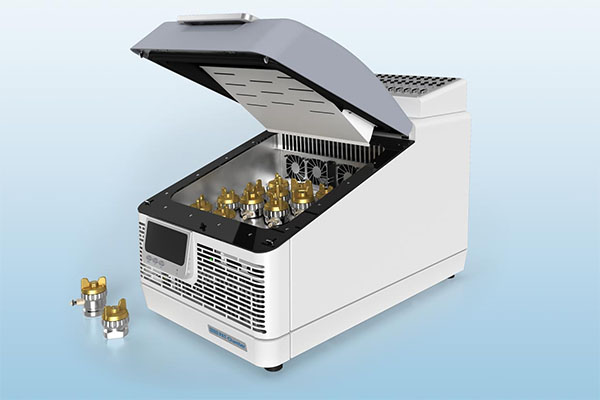

Opened PAT-Chamber-16 with PAT-Cells and PAT-Cell-Press
PAT-Chamber-16 C connected to a Bio-Logic MPG-2 potentiostat.
Specifications
| Width | 380 mm |
| Depth | 640 mm |

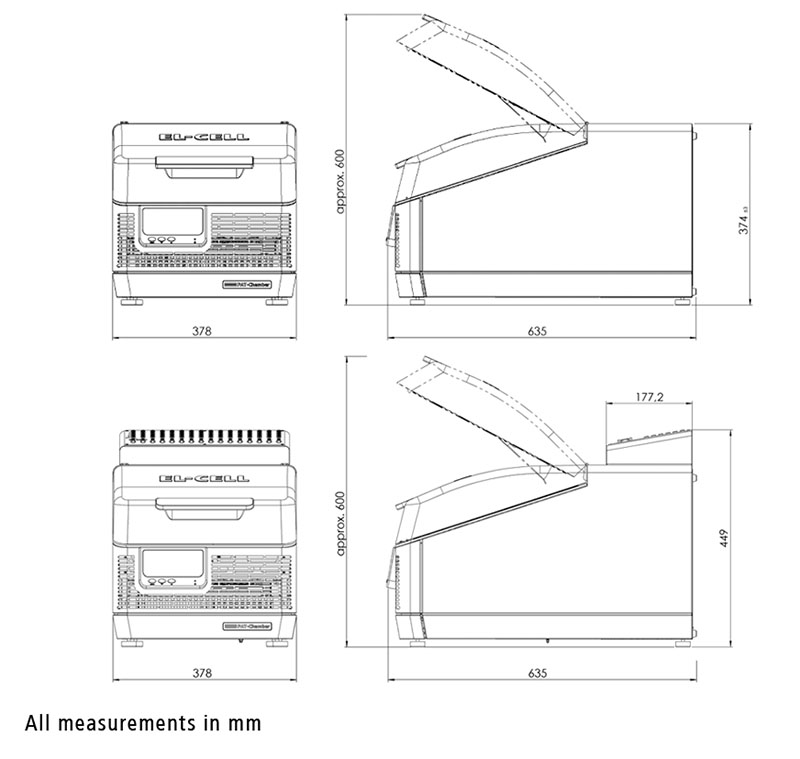

| Height | approx. 600 mm/375 mm (opened/closed cover) |
| Height with top-mounted PAT-Connect-16 | approx. 600 mm/449 mm (opened/closed cover) |
| Weight | 24 kg (without test cells) |
| Operating temperature range | 10 to 80° C |
| Name | # Cell connections (PAT Socket) | Operational temperature | Temperature controlled cell chamber | Charge / Discharge / EIS* | Data Logger*** | Measurements in mm (Height/Width/Length) |
|---|---|---|---|---|---|---|
| PAT-Clamp-1 | 1 | -20 - 70 ° C | Yes | 21 / 62 / 80 | ||
| PAT-Stand-1 | 1 | -20 - 70 ° C | Yes | 80 / 113 / 105 | ||
| PAT-Stand-4 | 4 | -20 - 70 ° C | Yes | 84 / 119 / 301 | ||
| PAT-Heater-4 | 4 | up to 200 ° C** | Yes | 230 / 265 / 400 | ||
| PAT-Stand-16 | 16 | -20 - 70 ° C | Yes | Yes | 120 / 315 / 315 | |
| PAT-Chamber-16 | 16 | 10-80 ° C | Yes | Yes | 375 / 640 / 380 |
* Compatible with any PAT series test cell
** 10 °C above average room temperature to 200 °C
*** Independent data acquisition of cell data (current, full- and half-cell voltages), pressure (only PAT-Chamber-16) and temperature. EC-Link monitoring software is provided.
