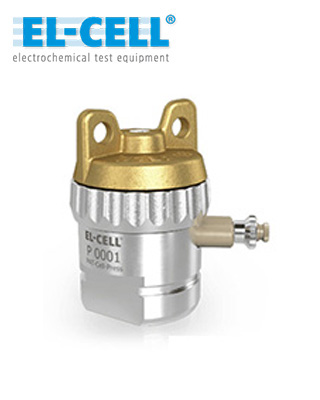

PAT-Cell-Press
•PAT-Core design with or without reference electrode
•Laser welded pressure sensor, 0 to 3 bar abs.
•Electrode feedthroughs with glass-to-metal seals
The PAT-Cell-Press is the ideal, leakproof cell for pressure testing.
Our pressure test cell for the PAT series

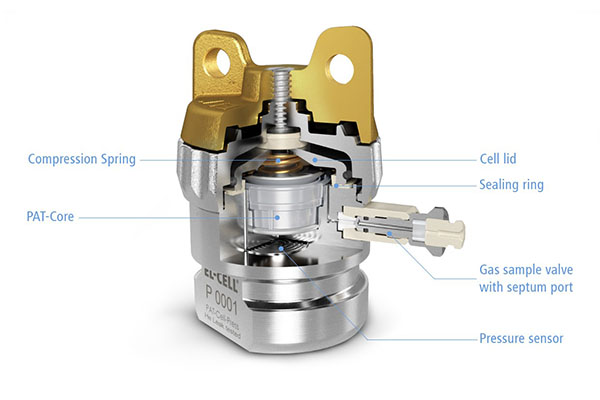

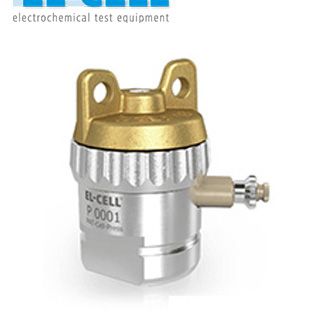

The PAT-Cell-Press is a pressure test cell for measuring gas evolution and drawing gas samples (option). Its advanced design includes a laser welded pressure sensor and glass-to-metal seals. The number of non-permanent seals is reduced to its minimum: a single seal between cell lid and base and a ferrule when the cell is ordered with the optional gas sample port.
In order to ensure best testing results, every PAT-Cell-Press is intensively tested for helium leaks.

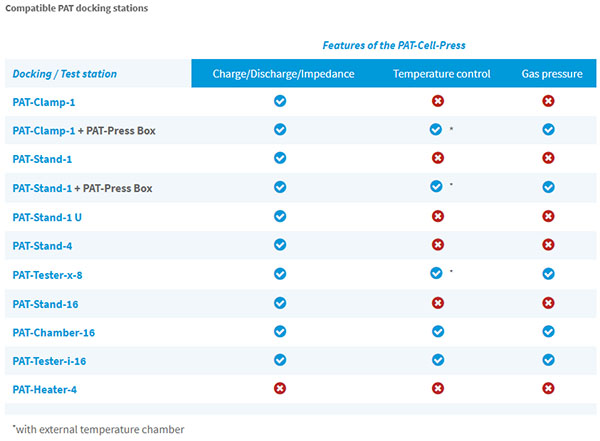

The PAT-Cell-Press can be operated directly with the PAT-Tester-x and PAT-Tester-i-16 potentiostats. If used with a 3rd party potentiostat, the PAT-Press-Box is required.

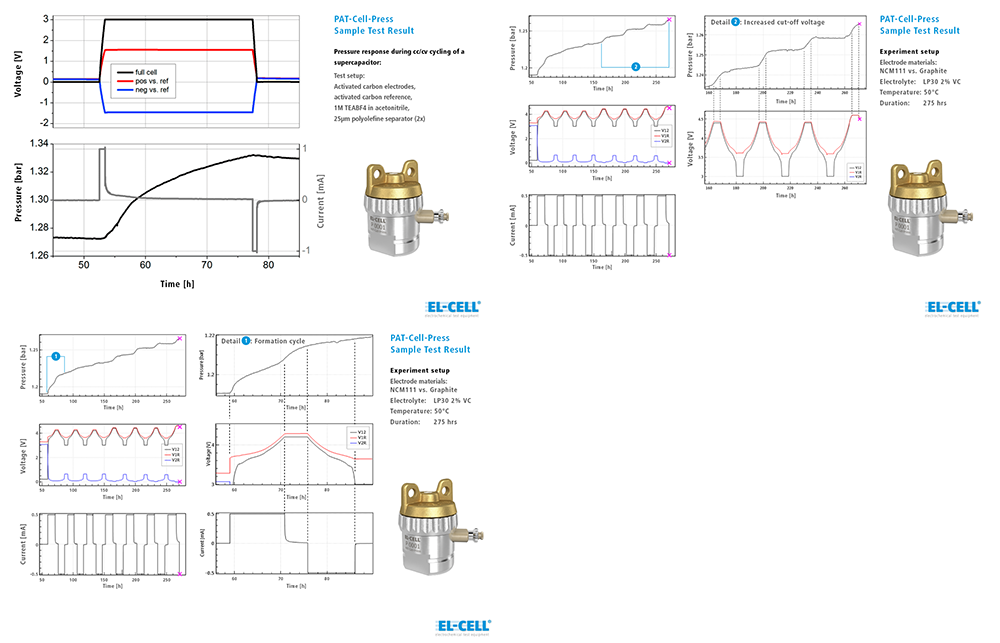

Sample test results
__25G29Tulli.png "EL-CELL_PAT-Cell-Press_Test-resu (2)")
.png)

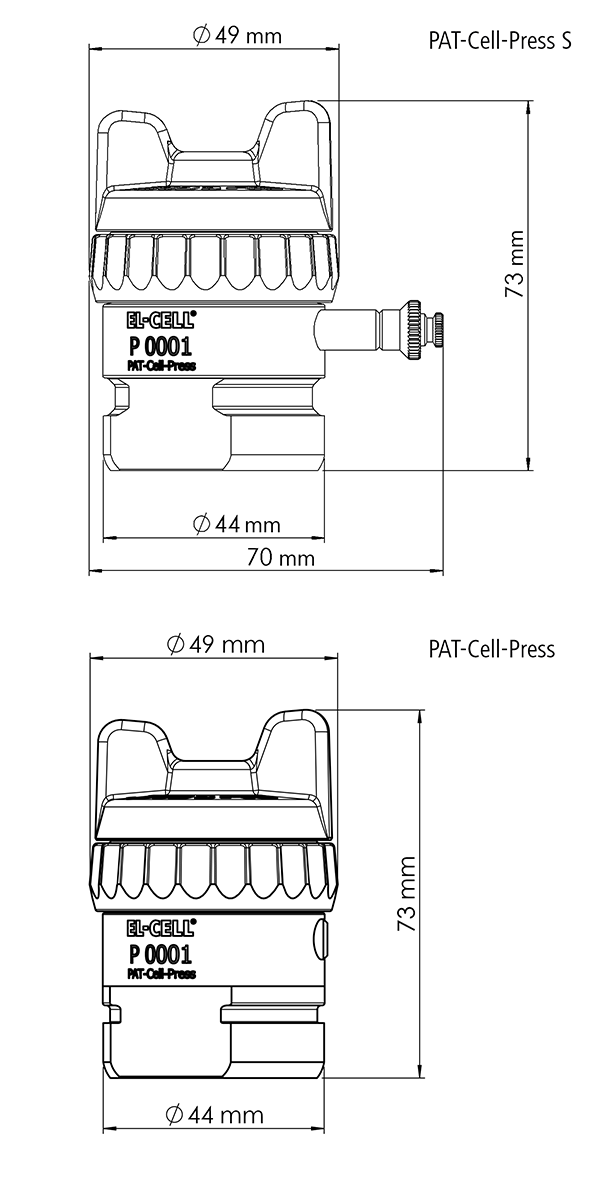

| Diameter (Lid) | 49.5 mm |
| Diameter (Cell base) | 44 mm |
| Height | 73 mm |
| Width | 70 mm (with gas sample port) |
| Weight | 0.5 kg |
| Separator diameter | 21.6 mm |
| Electrode diameter | 18 mm |
| Operational temperature | -20 to +80°C |
| Pressure sensor: | |
| Range | 0 to 3 bar abs. (0.5 to 4.5 V output signal) |
| Accuracy | < 5 mbar |
| Resolution | < 0.2 mbar |
Dead volume (PAT-Cell-Press with standard lid)
| Test cell without PAT-Core | 8.144 ml |
| Test cell with inserted PAT-Core | 3.565 ml |
