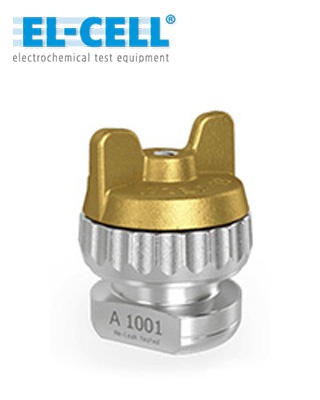

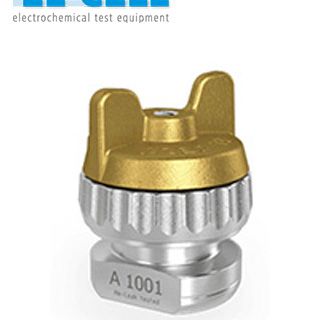

PAT-Cell

產品型號：PAT-Cell

使用創新的PAT-Core概念對鋰離子電池材料進行高通量測試的無引線測試治具。

•以三極式進行長期的半電池量測。
•基於一次性使用的概念，不需要清洗或乾燥電池零件。
•為下一代電池化學製品提供卓越的抗腐蝕能力。
•電極上可重複且均勻的機械壓力。

分享：

加入洽詢

產品特點
規格
Features
Specifications

EL-Cell GmbH用於兩極式和三極式測試的電化學測試治具。

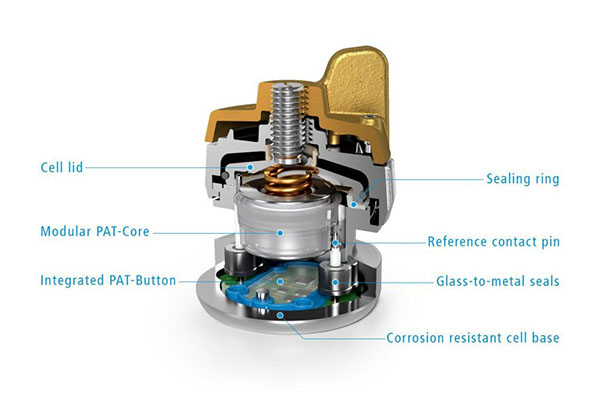

PAT-Cell是一種用於電池材料的兩極式或三極式量測的測試治具。它採用模組化的PAT-Core概念，因此可用於各種測試目的。它無須任何接線，可直接插入PAT電池測試儀，或通過PAT擴充基座連接到任何市面上的電池測試儀/恒電位儀。整合後的PAT按鈕等功能，進一步改善了操作的簡便性。還有當治具插入 PAT 電池測試儀時，治具底部的這種獲得專利的電子儲存器可實現自動電池識別。PAT-Cell同樣適用於自動化的高產量方案和小規模的測試用途。

PAT-Cell_features

樣品測試結果

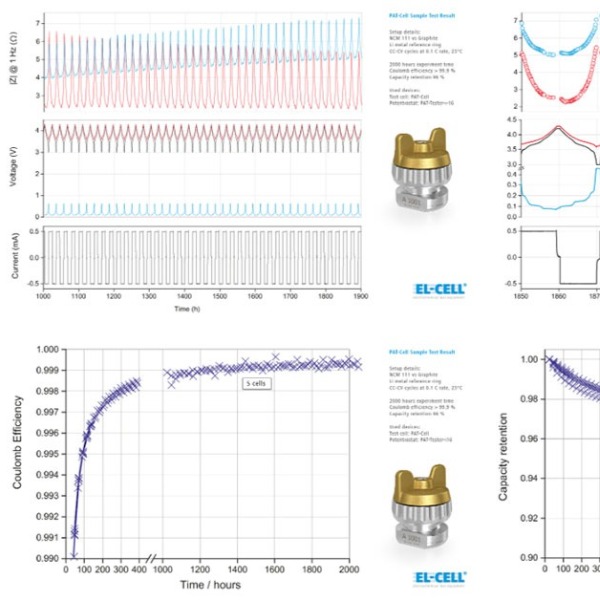

樣品測試1：NCM 111與石墨的循環測試，時間為2000小時。

pat-cell_02

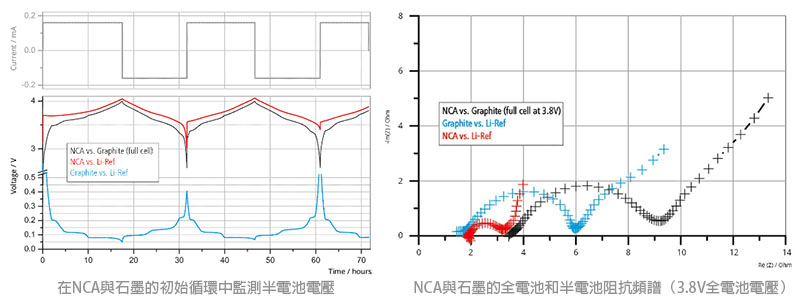

樣品測試2：NCA與石墨的循環對比。

PAT-Cell_03

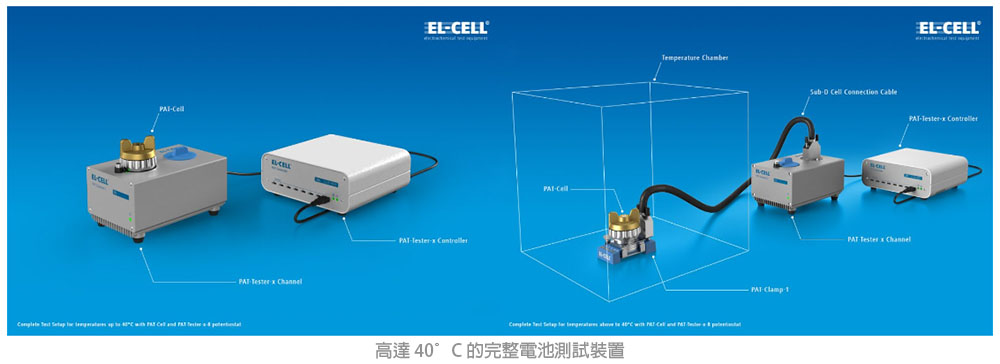

示範裝置

PAT-Cell_04

配件

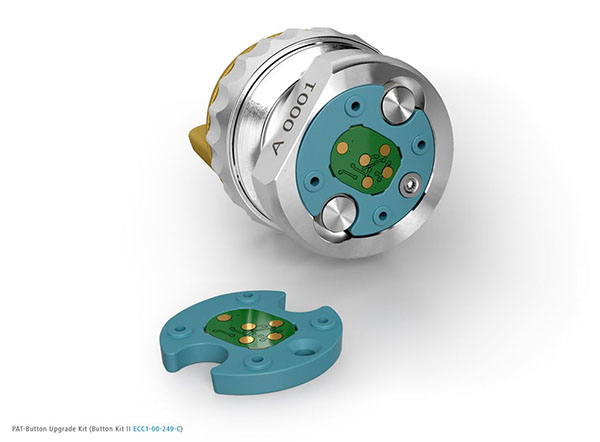

用於PAT-Cell的PAT-Button升級組件（Button Kit II，訂購號碼：ECC1-00-0249-C）。

PAT-Cell_06

受益於我們 PAT 電池測試儀的自動電池識別功能。使用 PAT-Button 升級您現有的 PAT-Cells。它包含一個治具 ID 的電子儲存晶片。

當插入PAT電池測試儀時，PAT-治具會通過其電子簽名自動檢測並顯示在EL-軟體畫面中。透過這種方式，您總是能對您的測試電池有一個概覽。因此，在紙上或直接在電池上的筆記是多餘的。

Diameter	49.5 mm
Height	61 mm
Weight	0.4 kg
Electrode diameter	18 mm
Temperature resistance	-20 to 80° C

Our electrochemical test cell for two- and three-electrode testing.

The PAT-Cell is a test cell for 2- and 3-electrode measurements on battery materials. It uses the modular PAT-Core concept and can therefore be used for a variety of test purposes. The cell has no wiring but is inserted directly into a PAT battery tester or connected to any commercially available battery tester / potentiostat via a PAT docking station. The easy handling is further improved by features such as the integrated PAT-Button. This patented*, electronic memory in the cell bottom enables automatic cell recognition when the cell is inserted into a PAT battery tester.
The PAT-Cell is equally suitable for automated high-thoughput scenarios and small-scale test series.

PAT-Cell_features

Sample test results

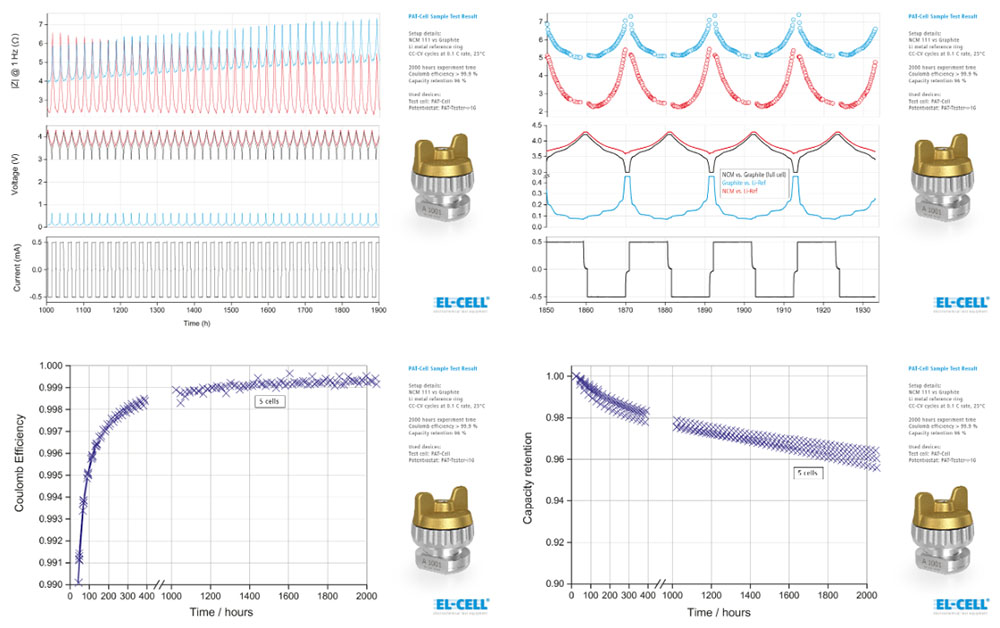

Sample test 1: Cycling of NCM 111 vs Graphite for 2000 hours.

PAT-Cell_02

Sample test 2: Cycling of NCA vs. Graphite.

PAT-Cell_03

Sample setups

PAT-Cell_04

Accessories
PAT-Button Upgrade Kit for PAT-Cell (Button Kit II, Order no.: ECC1-00-0249-C)

PAT-Cell_06

Benefit from the automatic cell recognition in our PAT battery testers. Upgrade your existing PAT-Cells with the PAT-Button. It contains an electronic memory chip on which the cell ID is stored.

When inserted into a PAT battery tester, the PAT-Cell is automatically detected by its electronic signature and displayed in EL-Software. In this way, you always have an overview of your test cells. Notes on paper or directly on the cell are therefore superfluous.

Diameter	49.5 mm
Height	61 mm
Weight	0.4 kg
Electrode diameter	18 mm
Temperature resistance	-20 to 80° C

Measurements_PAT-Cell
