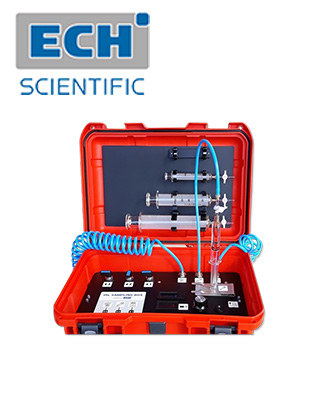

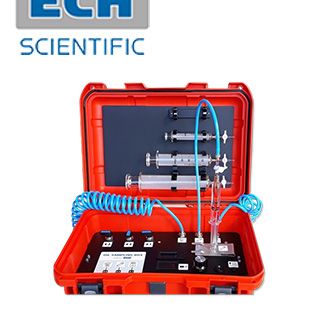

OIL SAMPLING BOX - Contamination free sampling of oils
- Easy to handle
- No contamination with air
- Portable with battery
The OIL SAMPLING BOX realises an air contamination free sampling.
After connecting, the user can transfer the liquid sample directly into a glass syringe for further analysis.
During the sampling process the user can check the oil temperature because of an implemented temperature sensor.
There is space in the housing cover for transporting up to 4 syringes of different sizes (10 mL, 50 mL or 100 mL).
By using the OIL SAMPLING BOX, you reduce the number of manual steps from sampling to the measurement result and thus reduce the error rate by the user to a minimum.
Applications
- Power transformers
- Electrical devices
- Oil-filled containers
- Pressure pipes
| Featherweight: | Weight only 5.7 kg |
| Compact design: | Dimensions 40 x 30 x 22.5 cm (W x D x H) |
| Outdoor ready: | Protection class IP 65 |
| Lasts a long time: | 2 Ah battery pack capacity |
| Easy handling: | Function icons |
| Fast flushing: | Max. 150 mL transfer volume per hub |
