OB1 MK4 微流體流量控制器
•壓力和真空控制
•通過控制施加給流體的壓力精確地控制流體的流速
流量控制與流量感測器配對以實現精準的流量控制
•壓電調控
•提供極為準確，快速的流量調節
•自定義
•可選擇一至四條通道， 每條通道有五種壓力範圍可供選擇
尖端微流體流量控制器
|
不要讓實驗設備限制您的微流體實驗！由科學家為科學家設計的多功能，強大的OB1 MK4壓力控制系統可為各種實驗提供完美的流量和壓力控制。 無論您是需要壓力還是真空，低流速還是高流速，短期實驗還是長期實驗，OB1 MK4都是您進行微流體研究的理想之選。 |
  |
性價比高：壓電技術
|
Elveflow的OB1 MK4是世界上唯一使用壓電調節器的微流體流量控制系統，其流量控制的精確度是市場上其他流量控制器的20倍，速度快10倍。 |
  |
可自定義&升級：1個模組，最多四個通道，5種壓力範圍
|
OB1 MK4可以按照任何您想要的方式進行配置和升級，每個模組最多可以有4個壓力和/或真空通道（還可定製更多通道）。 |
  |
配置流量感測器以達到最快的流量控制
|
您可以將流量感測器連接到OB1 MK4，從而控制微流體晶片中流體的流量。微流體系統持續地計算需要施加的壓力，以維持所需的流速。 |
  |
ESI操控軟體和SDK庫
|
單一、直觀的ESI操控軟體只需按兩下即可開始，並能進一步實現最複雜和長時間的實驗自動化運行。SDK庫允許您使用您自己的代碼來控制OB1 MK4並且可連入第三方設備。 |
  |
原始設備製造商版本
|
OB1 MK4可以在工作臺上使用，也可以嵌入您自己的產品中。Elveflow能為您研發過程中的每個步驟提供相應的解決方案。探索我們的OB1 MK4 OEM方案。 |
  |
獨特的性能
- 壓力穩定性—滿量程的0.005%
- 響應時間—–9 ms
- 壓力解析度—滿刻度的0.006%
- 建立/穩定時間—–35 ms
下表總結了Elveflow®OB1 MK4壓力和流量控制器的主要規格。為了保證其質量和性能，所有的儀器在組裝後都進行了獨立的測試和校準（響應時間，穩定性，可重複性……），並且保留了所有測試結果。
Cutting-edge Microfluidic Flow Controller
|
Designed by scientists for scientists, the versatile and powerful OB1 MK4 pressure controller provides the perfect flow control for all kinds of applications. |
|
the Best performance in the market: Piezoelectric Technology
|
The Elveflow OB1 MK4 is the only microfluidic flow control instrument worldwide to use piezoelectric regulators. The piezoelectric technology gives you 20 times more precise and 10 times faster flow control than any other flow controller on the market. |
|

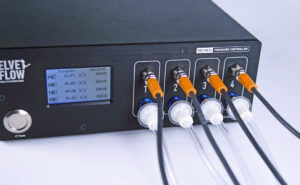

Customizable & upgradable: 1 Module, up to 4 channels, 5 pressure & vacuum ranges available
|
The OB1 MK4 can be configured according to your needs. In one piece of equipment, you can have up to 4 pressure and/or vacuum channels (and other customized options). If your needs change, the instrument can be upgraded later, in any way you want. |
|

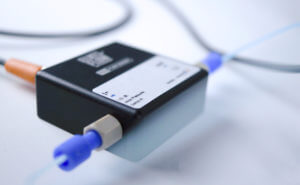

get the Fastest flow rate control when paired with a flow sensor
|
Connect the OB1 MK4 to a standard liquid flow rate sensor (MFS) or our premium Coriolis flow sensor (BFS, suited to both liquid and gas) to directly control the flow rate in your chip. The system continuously calculates the pressure and maintains the desired and constant flow rate. |
|

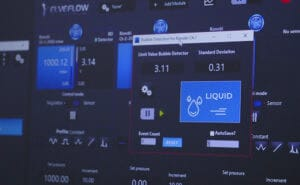

Full control software, SDK, and UART communication
|
Single and intuitive software to get started in a few clicks and automate the most complex and long experiments. The SDK libraries allow you to control the OB1 MK4 using your own code while connecting it to other instruments. The MK4 is also equipped with UART communication protocol in addition to the ESI and SDKs control, allowing it to communicate with most control systems, such as Mac, Linux, Arduino, PLC. |
|
OEM version available
|
The OB1 MK4 can be used on a bench setup or embedded in your own product. Elveflow has a solution for every step of your research & development. Discover our OB1 MK4 OEM solution. |
|

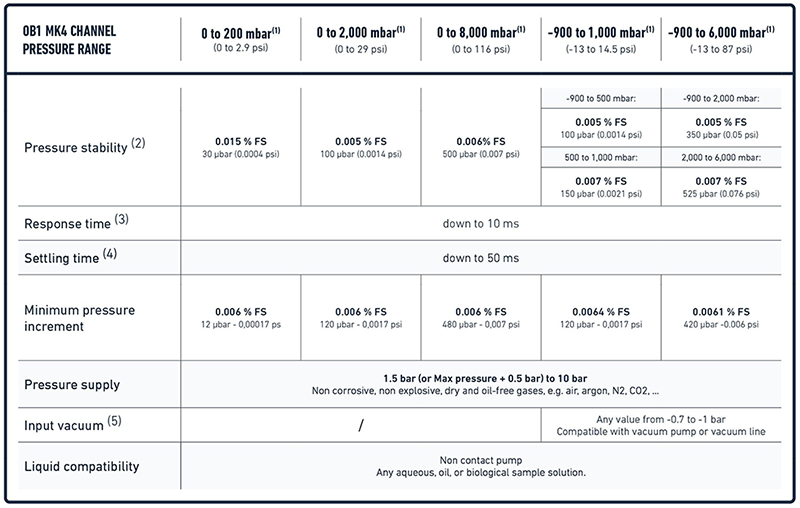

This table summarizes the main specifications of the Elveflow® OB1 MK4 pressure controller. To provide quality & performance, all of our instruments are tested and calibrated independently (response time, stability, repeatability… ) after being assembled and all test results are kept.
