Metal seal mounting kit

產品型號：Metal seal mounting kit

Tool kit for using metal seals in PAT series test cells

分享：

加入洽詢

產品特點

Tool kit for using metal seals in PAT series test cells

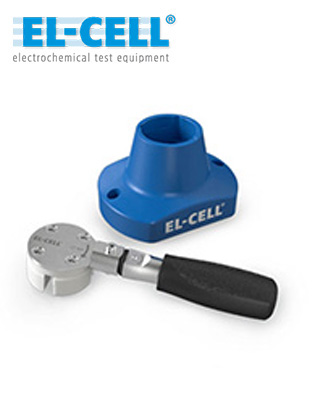

EL-CELL offers metal sealing rings for PAT series test cells for highest demands on cell tightness. This tool kit is designed to ensure the correct installation when using these metal seals. The handy assembly block holds the cell in place, while the torque wrench allows you to fasten the cell lid using the recommended torque.

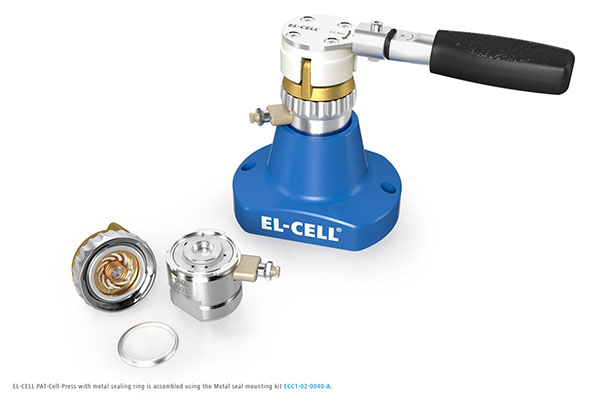

07-06-Metal seal mounting lit_-01
