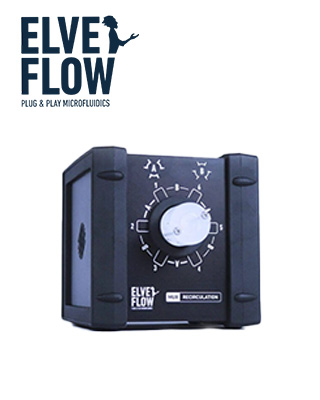

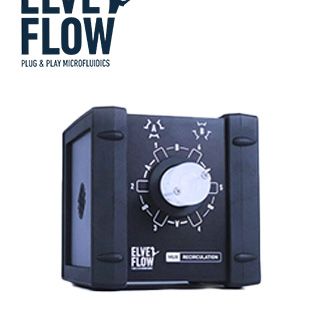

MUX RECIRCULATION微流體循環閥
•溶液再循環
•進行長期單向流動的再循環
•精確的體積灌注
•自動將樣品灌注您的流體管路
•工作流程微流控自動化
•通過序列編程節省時間
|
微流體循環閥是一個6個接口/2個位置的控制閥。當它與OB1 MKIII+壓力驅動的流量控制器結合使用時，可以:
每個輸入端都與一個相鄰的輸出端相連，根據配置的不同，可以在右邊或左邊。 |
|
更多的應用資訊，請參考連結：https://www.elveflow.com/microfluidic-products/microfluidics-flow-control-systems/mux-recirculation/#tab-applications
| Category | Parameter | Value |
| Performances | Port to port switching time (ms) | 180 ms |
| Max recommended pressure | 7 bar | |
| Internal diameter | 0.5 mm | |
| Internal volume(1) | 2.5µL | |
| Carryover volume(2) | 0.5 µL | |
| Dead volume (3) | None | |
| Wetted materials | PCTFE, PTFE | |
| Number or ports | 6 | |
| Number of positions | 2 | |
| Operating temperature | 5-40°C | |
| Operating Humidity | 20-70% non condensing |
Footnote:
- Volume inside the system from entrance to exit
- Volume of liquid that will be mixed with the next liquid. It is not stuck, but will be swept next time a liquid passes.
- Volume that is stuck in the system (dead end), which is not clearly swept and relies on diffusion to clear out
|
The MUX Recirculation 6/2 valve is a microfluidic 6-ports / 2-positions valve. The MUX Recirculation 6/2 valve, when combined with the OB1 MKIII+ pressure-driven flow controller, allows to:

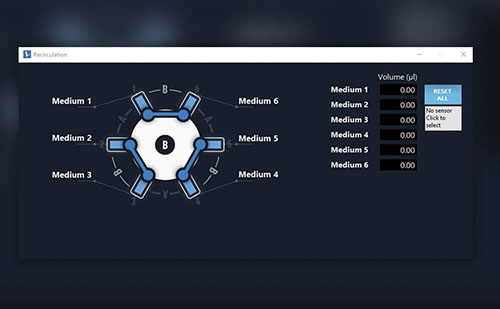

The MUX Recirculation valve has 6 inputs and 2 interchangeable configurations shown on the images below. Each input is connected to a neighbour output, either on the right or the left depending on the configuration. |
|
Ｍore application information, please refer to the link: https://www.elveflow.com/microfluidic-products/microfluidics-flow-control-systems/mux-recirculation/#tab-applications
| Category | Parameter | Value |
| Performances | Port to port switching time (ms) | 180 ms |
| Max recommended pressure | 7 bar | |
| Internal diameter | 0.5 mm | |
| Internal volume(1) | 2.5µL | |
| Carryover volume(2) | 0.5 µL | |
| Dead volume (3) | None | |
| Wetted materials | PCTFE, PTFE | |
| Number or ports | 6 | |
| Number of positions | 2 | |
| Operating temperature | 5-40°C | |
| Operating Humidity | 20-70% non condensing |
Footnote:
- Volume inside the system from entrance to exit
- Volume of liquid that will be mixed with the next liquid. It is not stuck, but will be swept next time a liquid passes.
- Volume that is stuck in the system (dead end), which is not clearly swept and relies on diffusion to clear out
