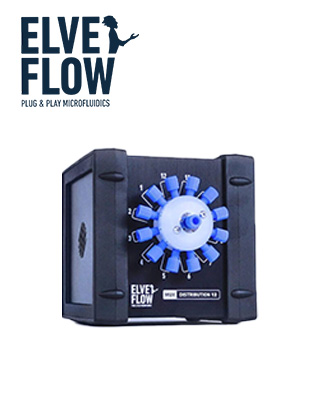

MUX DISTRIBUTION 微流體分配閥
•序列式微流控注液
•快速交換您的生物介質或化學溶液
•工作流程微流控自動化
•通過序列編程節省時間
•旋轉式選擇閥
•在多達12種溶液之間切換
•將溶液灌注到微流控晶片中
•將1個樣品注入12個輸出口或將12個樣品注入1個輸出口
用新型12/1旋轉雙向微流控閥進行微流控順序注射。與OB1 MK3+壓力控制器相結合，它將使您在微流控實驗中實現自動注射，對灌注實驗進行編程，依次供應不同的試劑以及更多的應用。
|
優點 |
|
|

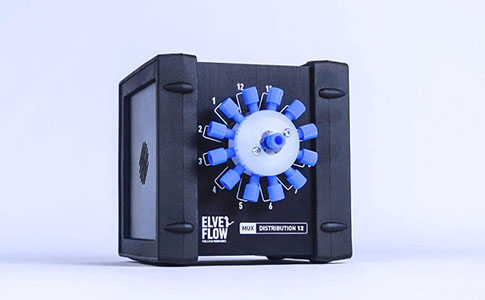

微流體分配閥MUX Distributor 12是一個雙向的旋轉切換閥，該閥被用作選擇器來順序的把一種溶液樣品注入到12個不同的通路中或者把12個不同的溶液樣品注入到同一個通道內。
|
|
|

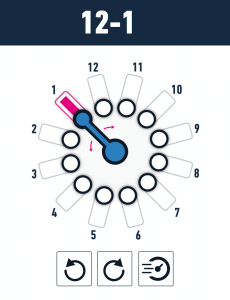

雙向13個接口/12個位置，從12個不同的樣品中順序注入1個輸出/輸入口
|
  |

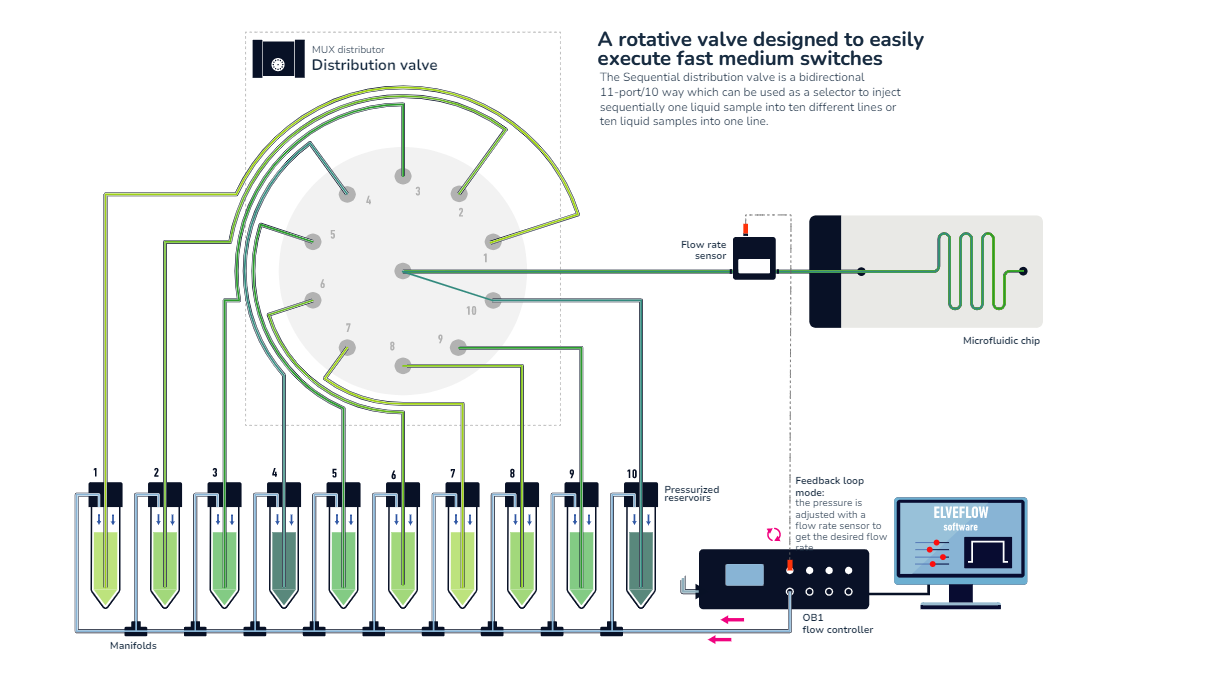

微流體分配閥MUX Distributor 12應用連接示範圖
更多的應用資訊，請參考連結：https://www.elveflow.com/microfluidic-products/microfluidics-flow
-control-systems/mux-distrib/#tab-applications
| NEW 12/1 valve | ||
| Category | Parameter | Value |
| Performances | Port to port switching time (ms) | 156 ms |
| Max recommended pressure | 7 bar | |
| Internal diameter | 0.5 mm | |
| Internal volume(1) | 3.5 µL | |
| Carryover volume(2) | 1.7 µL | |
| Dead volume (3) | None | |
| Wetted materials | PCTFE, PTFE | |
| Number or ports | 13 | |
| Number of positions | 12 | |
| Operating temperature | 5-40°C | |
| Operating Humidity | 20-70% noncondensing |
- Volume inside the system from entrance to exit
- Volume of liquid that will be mixed with the next liquid. It is not stuck, but will be swept next time a liquid passes.
- Volume that is stuck in the system (dead end), which is not clearly swept and relies on diffusion to clear out
Perform microfluidic sequential injection with the New 12/1 Rotary Selector Bidirectional Valve. Combined with the OB1 MK3+ pressure controller, it will allow you to automate injection in microfluidic experiments, program perfusion experiments, sequentially supply different reagents and many more applications.
Benefits |
|
|
Several solutions from one outlet or one feed directed into different outlets. Use the MUX Distrib to sequentially inject up 12 different solutions into one microfluidic line for sample collections or parallel experiments.
|
|
|
Bidirectional 13 ports/ 12 positions sequential injection from 12 different samples into 1 output/input
|
|
EXAMPLE: FAST MEDIUM SWITCHES
Ｍore application information, please refer to the link: https://www.elveflow.com/microfluidic-products/microfluidics-flow-control-systems/mux-distrib/#tab-applications
| NEW 12/1 valve | ||
| Category | Parameter | Value |
| Performances | Port to port switching time (ms) | 156 ms |
| Max recommended pressure | 7 bar | |
| Internal diameter | 0.5 mm | |
| Internal volume(1) | 3.5 µL | |
| Carryover volume(2) | 1.7 µL | |
| Dead volume (3) | None | |
| Wetted materials | PCTFE, PTFE | |
| Number or ports | 13 | |
| Number of positions | 12 | |
| Operating temperature | 5-40°C | |
| Operating Humidity | 20-70% noncondensing |
- Volume inside the system from entrance to exit
- Volume of liquid that will be mixed with the next liquid. It is not stuck, but will be swept next time a liquid passes.
- Volume that is stuck in the system (dead end), which is not clearly swept and relies on diffusion to clear out
