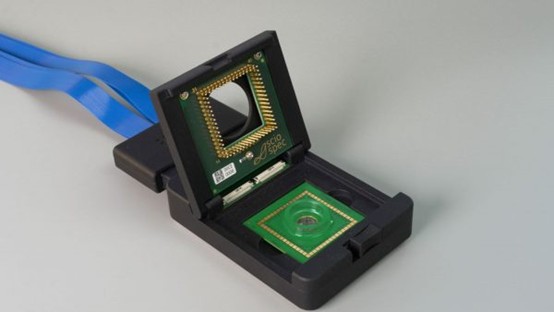

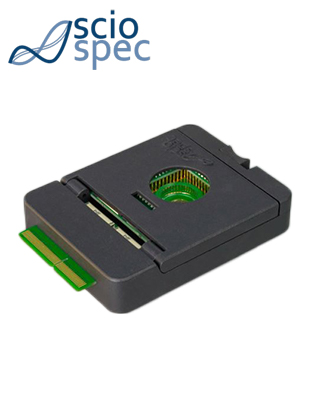

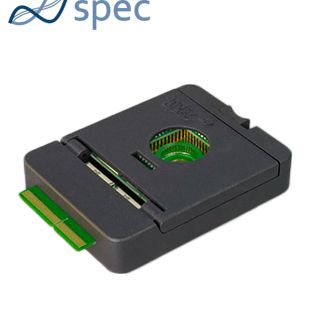

多電極陣列阻抗量測轉接器
多電極陣列（MEAs）在電生理學研究中早已被廣泛應用，是進行細胞培養阻抗量測的標準方法之一。
使用 Sciospec 的 MEArack，您將獲得一個簡潔且經過實證的解決方案，無需再煩惱手工接線、自行切換通道、或是要整合在自製晶片轉接板上搭配第三方多工器。透過 ExtensionPort 系統，MEArack 可直接插入 ISX-3 等兼容的阻抗分析儀中，即插即用 —— 就這麼簡單！
與我們的多工器搭配使用：任意通道對任意通道分配——無限可能！
是否曾遇過這樣的困境：要將感測器的通道對應到多通道裝置，卻總是受限於配置條件？甚至得在量測間手動更換線路來解決？好消息來了：這些煩惱將成為過去！我們的任意對任意多工器擺脫了傳統多工配置的限制，讓您完全自由地分配通道，不再需要為接線與配置絞盡腦汁。通道分配變得輕鬆愉快，還能開啟許多新應用可能，例如端口極性切換、在固定感測位置變換電流路徑、固定激發點並掃描電位或阻抗映射、多端口元件分析、甚至是任何您想像得到的應用！這些多工器都能勝任。並可以輕鬆實現 EIT的電流注入模式，並結合我們阻抗分析儀中的 EIT 測量選項，進一步對量測數據進行影像重建。
想了解更多？請參閱 MUX64！
感測器與晶片類型
- 支援全球多家製造商的產業標準電極／感測器
- 可選擇多種電極幾何設計與材料
- 可依需求製作客製化電極結構
- 可選擇整合流體控制與溫度控制模組
您使用的感測器類型與正確選擇儀器同樣重要。MEArack 可支援全球多家廠商的產業標準晶片，常見感測器幾何設計包含單點電極、交錯指狀電極（IDEs）、高度專業化設計的細胞培養專用電極。
若您有更特定的應用需求，我們可協助您設計並製造專屬的感測器結構，並提供流體控制與溫控整合功能。
關鍵特點
- 適用於多電極陣列（MEAs）及其他感測器／生物晶片的產業標準格式轉接器
- 相容多款 Sciospec 產品，從多工器、阻抗分析儀，甚至 EPIX 平台
- 可支援各種產業標準感測器的排列設計
- 選配客製化晶片開發
- 小型、低調設計
- 頂部與底部有觀察窗，可搭配顯微鏡使用
- 可透過纜線或直接插入儀器 —— 支援SC98 連接介面
IMPEDANCE MEASUREMENT ON MULTIELECTRODE ARRAYS WITH
Well established in electro-physiological research the standard form factor multielectrode arrays (MEAs) are one of the go-to standards when it comes to impedance measurements on cell cultures.
With the Sciospec MEArack you get a simple and proven solution for tackling these measurements without any awkward self made cabling setups, labor intensive manual channel switching or complicated third party multiplexer integrations on top of a home cooked chip adapter… With the ExtensionPort system the MEArack just plugs into compatible impedance analyzers like the ISX-3 and you´re good to go – it´s that easy
In combination with our multiplexers: Any to any port assignments – nothing is impossible!
Did you ever find yourself in a situation where you had to solve the puzzle of assigning your sensor ports to a multichannel device but kept running into constraints? Maybe you even resolved to manually reconfiguring cables in between measurements to cope with this? Good news: These times are over! Freeing you of all channel assignment constraints as seen in conventional multiplexer arrangements, our any-to-any multiplexers give you complete freedom and take out the hassle and riddling of the port assignment and configuration process. Assigning ports becomes a breeze! Additionally, this opens up a world of new possibilities: switching polarities on ports, moving current paths on fixed sensing positions, fixed excitation points and scanned potential or impedance mapping, multiport component analysis, or anything else you can imagine. These multiplexers can do it. EIT style injection patterns are just as easily realized and combined with the EIT measurement option in our impedance analyzers you can do image re
Check out the MUX64 for more information!
Sensor and chip types
- industry standard electrodes/sensors available from several manufacturers
- tons of electrode geometries and materials to choose from
- custom made electrode structures to perfectly fit your needs
- optional integration of fluidic handling or temperature control
Just as important as the correct instrument is the sensor type you use. The MEArack is compatible with industry standard chips available from several manufacturers worldwide. Typical sensor geometries range from simple spot electrodes, over interdigitated electrodes (IDEs) up to highly specialized electrodes for specific cell cultures and experiment types.
Need something more tailored towards your needs? We can help you design and manufacture your own sensor structures specifically targeting your application. Integration of fluidic handling and temperature control is also available.
Key facts
- adapter for multi-electrode-arrays (MEAs) and other sensors-/biochips industry standard format
- compatible with a range of Sciospec products from multiplexers and impedance analyzers all the way to the EPIX platform
- layout fitting broad range of industry standard sensors
- optional custom chip development
- small form factor, low profile
- bottom and top windows for use in combination with microscopes
- via cable or directly inserted in the instrument – with SC98 all options are valid
