LungEIT 套件

全新登場 – 為研發團隊帶來肺部成像的革命性工具

LungEIT Kit是專為進行肺部成像應用的研究與開發團隊所設計的終極解決方案。這套完整的套件提供您進行肺部成像所需的一切。

• 醫療研究級 EIT 系統：符合 IEC60601-1 醫療安全標準，確保操作的可靠性與安全性。
• 完整配線與電極腰帶：所有肺部成像所需配件一應俱全，立即上手無障礙。
• 專屬肺部成像應用程式：內建於我們的軟體中，肺部成像簡單高效。
• 開放式介面與 EIDORS 相容性：允許使用者開發自有應用程式，實現彈性與客製化。
• 多種擴充模組：如心電圖（ECG）同步模組、專為外置感測器與裝置的隔離式 I/O 埠等，強化研究功能。

核心優勢

輕鬆進入肺部成像領域

LungEIT Kit提供最簡便的入門方式，是一套開箱即用的系統，大幅簡化初期設置與應用流程。本套件兼具研究系統的高度彈性與醫療等級安全性，降低臨床研究與應用門檻。

自由創新、靈活配置

從注入電流模式到量測參數皆可完全自定，可存取原始數據、開放式介面，並與 EIDORS 等標準系統相容，Sciospec LungEIT Kit具備您進行創新研究與產品開發所需的一切。若有商轉規劃，我們也提供客製化 OEM 的EIT解決方案，協助您的商用產品需求。

完整支援與擴充模組

本套件包含所有必要元件與專屬應用程式，是您展開肺部成像研究的最佳起點。若需更進一步功能，我們亦提供多種升級選項，例如擴增通道數量、加入外部感測器與儀器的介面、與心電圖（ECG）訊號同步等。當研究變得更加複雜時，我們的專業團隊隨時為您提供技術支援，協助您完成應用開發。

易於操作的軟體

Sciospec LungEIT Kit內含我們直覺易用的軟體套件，並搭載專為肺部成像設計的應用程式，讓您能以極輕易快捷完成 EIT 設定並立即啟動量測，同時享有優異的影像重建結果。若您希望擴展應用，自行使用演算法或進行不一樣的資料處理，軟體也支援客製化重建矩陣、原始資料輸出、與 EIDORS 相容。

想試試其他 EIT 應用嗎？我們的軟體套件同時內建多種應用程式，例如水槽（tank-based）實驗、平面 EIT（planar EIT）、電化學阻抗分析（EIS）等多樣情境！

應用範疇

LungEIT Kit非常適合多種應用場景，不限於以下幾種：

• 呼吸功能監測
• 診斷工具開發
• 臨床研究
• 肺部復健研究

肺部影像應用的常見痛點

• 每天時間有限、開發人力不足，難以處理所有電子硬體、電極配置、演算法與其他事項令系統暢順運作？
• 想在臨床場域中使用，但擔心無法取得豁免、特殊核准或安全合規認證？
• 現有醫療用 EIT 解決方案功能不足，或無法取得您需要的原始資料？

別擔心——我們幫您搞定！您無需浪費寶貴資源重新打造一套系統。我們的醫療研究系統完美符合您的需求。只需專注於您的應用開發，其他的交給我們處理！如果過程中遇到挑戰，我們具備經驗豐富的技術團隊會隨時支援您。

醫療等級安全特性

• 外殼防護：防止電路與外部設備或人體接觸，同時為量測前端提供遮蔽（降低雜訊）及機械安全防護。
• 醫療等級電源供應器：使用外接隔離式交流/直流轉換器供應直流 12V 電壓。亦支援獨立電池運作模式，包含軟體可控的電機式直流電輸入線路斷電功能。
• 隔離式全速 USB 介面：全速 USB 連接埠用於與電腦進行儀器控制與資料讀取。
• 乙太網路介面：標準 RJ45 乙太網路接口，用於遠端控制儀器。
• 此介面本身未內部隔離，為達成安全隔離等級，會附上醫療等級網路隔離器插入通訊路徑中使用。
• IsoIO 模組：提供低層級通訊介面，支援硬體同步化，並具備可編程的通用 IO 標準（包含 UART、SPI、I2C 等序列通訊），以便與其他外部設備搭配使用。
• 量測與控制模組：阻抗分析儀的核心功能模組，包含量測控制、訊號處理、激發訊號產生及類比量測功能。
• 交流耦合前端模組（AC coupling frontend）：為量測端提供交流耦合功能的外部模組，阻隔直流電流並加入高通濾波特性以限制低頻電流，同時將儀器與受測物（或病患介面）進行電氣隔離。

我們的技術，成就您的產品

沒有足夠開發時間？技術風險太高？我們幫您搞定！

我們所有的技術都可提供 OEM 客製化解決方案。無論您目前處於開發的哪個階段，我們經驗豐富的 EIT 專家團隊都能協助您打造優質產品。我們提供清晰的遷移路徑，從概念驗證階段，到驗證研究、法規認證，一路到量產規模化：

• 從想法到產品 —— 提供元件、模組，甚至完整系統

• 提供產品開發、製造與生命週期維護服務

• 市場領先的技術專業

• 廣泛的技術平台，協助您快速切入市場

• 在生物分析、醫療、測試自動化等領域我們已累積大量經驗

• 高品質標準與法規遵循

• 符合 ISO 9001 與 ISO 13485 認證

技術規格

真正的平行量測與高度同步切換機制，實現高速成像率。結合我們完整的 EIT 平台功能，LungEIT Kit具備您在肺部影像及其他 EIT 應用所需的一切。

• 成像速率高達 100 fps
• 通道數由 16 到 256 可選
• 醫療等級安全特性（符合 ISO 60601-1 標準）
• 多頻量測：100 Hz ~ 1 MHz
• 無數擴充選項，如心電圖（ECG）同步、隔離式輸入/輸出等，便於整合外部感測器與裝置

Introducing the LungEIT Kit - Revolutionizing Lung Imaging for R&D Teams

Introducing the LungEIT Kit – the ultimate solution for research and development teams venturing into lung imaging applications. This comprehensive bundle is designed to provide everything you need to get started with ease and precision.

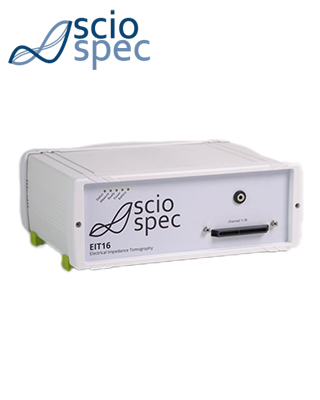

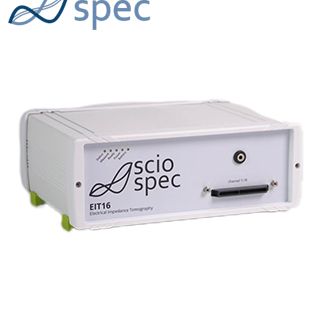

• Medical Research EIT System: Equipped with IEC60601-1 compliant safety features for reliable and safe operation.

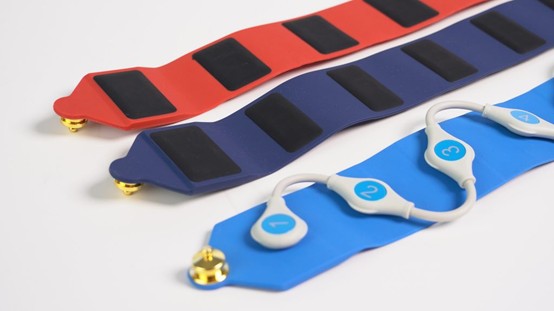

• Complete Cabling and Electrode Belts: All necessary accessories included for seamless application to lung imaging.
• Dedicated Lung Imaging App: Integrated within our software suite, facilitating easy and efficient lung imaging.
• Open Interfaces and EIDORS Compatibility: Allows users to develop their own applications, ensuring flexibility and customization.
• Extensive Add-on Modules: Enhance research capabilities with modules like ECG synchronization and isolated I/O for external sensors and devices.

Core Benefits

Easy Entry into Lung Imaging

The LungEIT Kit offers the easiest possible entry into lung imaging, providing a ready-to-use solution that simplifies the initial setup and application process. The only solution that gives you the flexibility of a research system combined with the advantages of medical safety features, easing the way into clinical settings and studies.

Start innovating and test your ideas

Full freedom of configuration in injection patterns and measurement parameters, access to raw data, open interfaces, compatibility with standards like EIDORS, …the Sciospec LungEIT Kit has everything you need to try out your ideas, build innovative research and products. For further migration to commercial scale applications, we offer our EIT solutions as customized OEM versions to fully match your product needs.

Comprehensive Support and Add-Ons

Our kit includes all necessary components and a dedicated app, ensuring the best possible starting point for your lung imaging research. If you need to go beyond that, we have countless options to extend the systems from scaling up the channel counts, over adding interfaces to external sensors and instruments or synching to ECG signals – we have you covered. And when things get complicated, our experienced experts are at your side, supporting you to build your application.

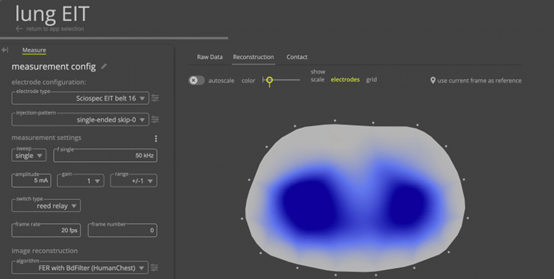

Easy to use Software

The Sciospec LungEIT Kit comes with our intuitive software suite including a dedicated lung imaging app. This makes it incredibly easy and fast to get an EIT measurement configured and running with great looking image reconstruction included. For those of you who want to expand on this and use your own algorithms or do a completely different type of data processing, we offer many options including custom reconstruction matrices, raw data export and EIDORS compatibility.

Want to try other EIT applications? The software suite is also packed with apps for diverse EIT settings like tank-based experiments, planar EIT, EIS, …

Applications

The LungEIT Kit is ideal for a wide range of applications, including but not limited to:

• Respiratory function monitoring
• Diagnostic tool development
• Clinical research
• Pulmonary rehabilitation research

Typical Pain Points when doing lung image applications

• There just not enough hours in a day and developers at hand to handle all the development work needed for electronics, electrode configurations, algorithms and all the other stuff to make it work?
• Worried about getting an exemption, special approval or clearance for working in a clinical settings, but need to proof compliance with all relevant safety aspects of?
• Existing medical EIT solutions just don´t offer the features you need or give you access to the data you want?

Don´t worry – you don´t have to waste your precious resources and reinvent the wheel. We have you covered. Our medical research systems are a perfect fit for your needs. Just focus on your application and let us do the rest. And if things get tricky, we have an experienced team of experts to support you.

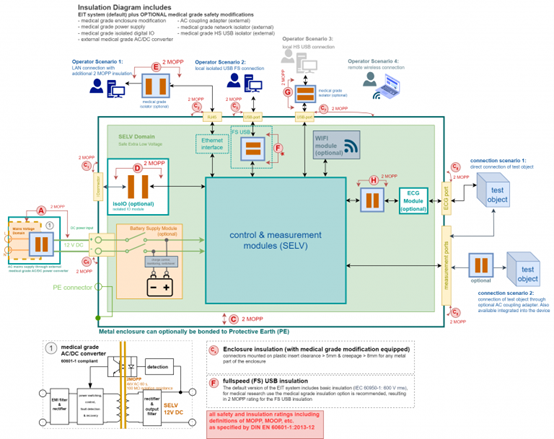

Medical grade safety features

• Enclosure: prevention of contact between electrical circuitry and external equipment or humans, shielding of measurement frontend (noise reduction) and mechanical safety
• Medical grade power supply: external isolated AC/DC converter supplies device with 12 V DC, additionally stand alone battery operation is possible including software controllable electromechanical switch-off for DC input lines
• Isolated Full speed USB interface: full speed USB port for instrument control and data readout from PC
• Ethernet interface: standard RJ45 Ethernet interface for remote control of the instrument
• The interface is not internally isolated. An external medical grade network isolator (included in the offer) can be inserted in the communication path to ensure safe isolation ratings.
• IsoIO module: low level communication interfaces including hardware synchronisation and flexible programmable IO standards including serial (UART, SPI, I2C) for use of the instrument with other external equipment
• Measurement and control modules: core functionality of the impedance analyzer including measurement control, signal processing, excitation generation and analog measurement functions
• AC coupling frontend: External module for AC coupling of measurements ports. Blocks DC currents and adds a high pass filter characteristic limiting low frequency currents. Isolates the instrument galvanically from the measurement object or patient interface.

Our Tech, YOUR product

No time for development? Too much technical risk? We have your back!

All our technology is also available as OEM solutions. Our experienced EIT experts help your team to build a great product no matter what phase you are in. We offer clear migration paths from the proof of concept phase, through validation studies and regulatory approvals, all the way to scaling up production.

• From idea to product – components, modules or complete systems
• Development, manufacturing & lifecycle maintenance services
• Market leading expertise
• Broad technology platform for easy entry
• extensive experience with bioanalytical, medical, automated test, …
• high quality standards and regulatory conformity
• ISO 9001 and 13485

Technical Specifications

True parallel measurements and tightly synchronized switching allows for fast frame rates and with all the capabilities of our EIT platform, this kit has everything you need for lung imaging and any other EIT application

• high framerates up to 100 fps
• channel counts from 16 up to 256
• medical grade safety features (ISO 60601-1 compliant)
• multifrequency measurements from 100 Hz … 1 MHz
• countless options like ECG synchronization and isolated I/O for integration with external sensors and devices.
