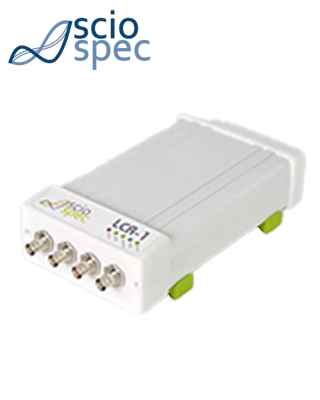

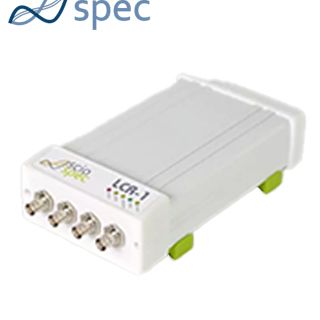

LCR 測試儀

電氣元件分析從未如此簡單！LCR-1 採用與我們業界領先的阻抗分析儀相同的技術，結合了次世代效能與 LCR 錶的操作簡易性。在量測範圍、精度與速度方面，LCR-1 可與高階設備相媲美，同時保有同級產品前所未見的精巧外型、簡易設定與無痛操作。
發掘元件分析的強大力量，盡在 LCR-1！

即將推出功能

• 進階時間追蹤（Time Trace）模式
• 進階補償選項
• 合格/不合格檢測功能
• 批量測試與頻率掃描統計
• 引導式模型選擇
• 高解析度直流偏壓/偏移輸出（± 1 V）

強大連接能力 – 支援多種轉接器

• 工業標準連接線組
• 各式萬用夾具
• 穿孔型（THT）與表面安裝型（SMT）元件測試夾具
• 薄膜、箔材用介電測試治具
• 液體樣本測試治具

有特殊需求？歡迎洽詢我們

適用於研究與日常維修工作

LCR-1 外觀極簡、使用直觀，內部卻採用與我們高階阻抗分析儀相同的先進測量技術，帶來同級產品中極為罕見的廣泛測量範圍、高速度及高精度測量。LCR-1 是以下應用的理想選擇：

• 日常工作室的簡易測試
• 元件製造的品質檢測
• 取放組裝前的預檢測試
• 材料與元件的研究分析

LCR-1 準確度等值線圖

LCR-1 主要特色

• 單通道精巧型 LCR 測試儀
• 支援 2、3、4 埠量測
• 提供多種常見電力模型、電路與參數
• 頻率範圍廣泛：100 mHz ～ 1 MHz（可擴展至 40 MHz）
• 測量範圍極廣：
• 電阻 R：1 mΩ ～ 1 TΩ
• 電容 C：10 fF ～ 1 kF
• 電感 L：1 nH ～ 1 TH
• 高精度測量：基本精度達 0.01%
• 極簡操作與預設功能，適合日常快速測試
• 相容多種測試轉接器，適用於元件、薄膜、箔材與液體測試
• 支援手動與自動量測範圍與觸發控制
• 直觀設定多種進階量測，包括平均設定、偏移補償、積分時間等

Electrical component analysis has never been easier. Based on the same technology as our industry leading impedance analyzers the LCR-1 combines next-level performance with the simplicity of an LCR meter. In terms of range, accuracy and speed the LCR-1 sees eye to eye with competing high-end devices while maintaining a compact formfactor, simple setup and ease of use previously unseen in this class.

Unlock the power of component analysis with the LCR-1!

Coming soon:

• Advanced Time Trace mode
• Advanced compensation options
• pass/fail testing including
• batch testing and statistics frequency sweeps
• guided model selection
• high resolution DC bias/offset generation (± 1 V)

POWERFUL CONNECTIVITY THROUGH ADAPTERS

• industry standard cable sets
• different types of universal component clamps
• THT and SMT component test fixtures
• dielectric test fixtures for foils, thin films, etc.
• liquid test fixtures

ask us for more

FOR WORKSHOP AND REASEARCH ALIKE

From the outside the LCR-1 projects uncompromised simplicity. On the inside however it is built on the same cutting edge measurement technology as our high-end impedance analyzers. This results in extremely wide measurement ranges, speed and accuracy typically not found in systems of this price class and ease of use. This makes the LCR-1 the ideal choice for:

• simple day to day tests in the workshop
• quality testing in component manufacturing
• prechecking before Pick-and-Place assembly
• material and component research

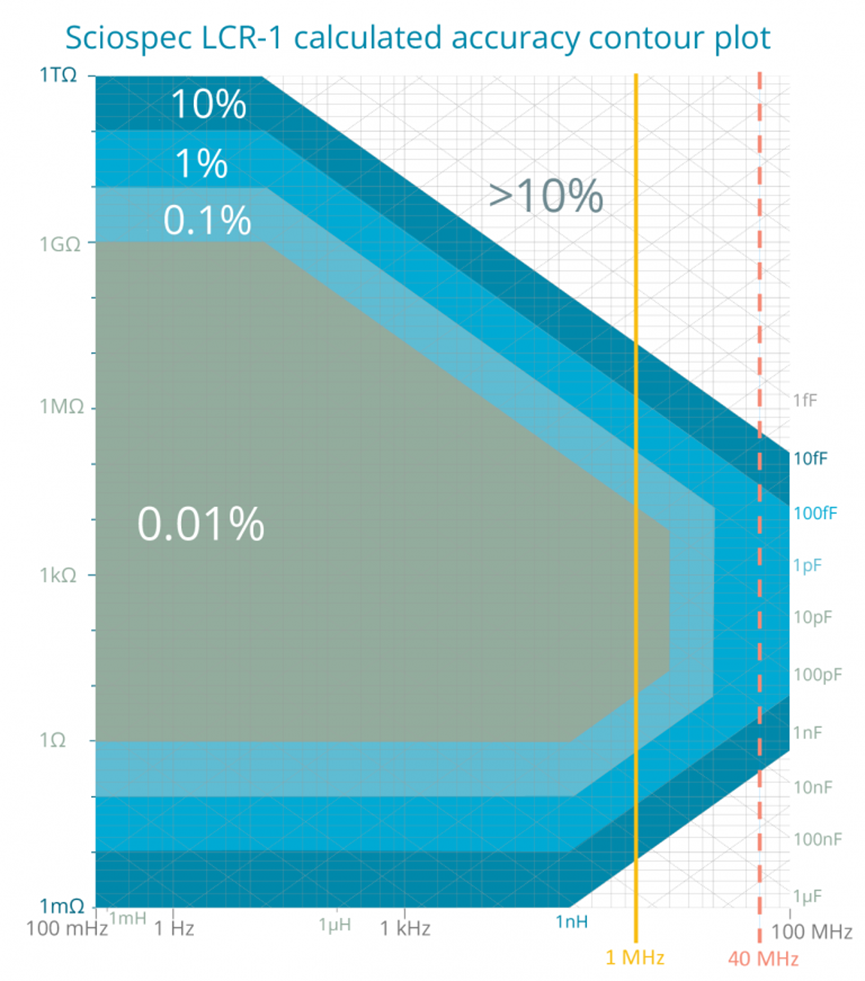

Accuracy Contour Plot for LCR-1

LCR-1 Meter key facts

• one channel compact LCR meter
• 2-, 3- and 4-port measurements
• large selection of common electrical models, circuits and parameters
• wide frequency range: 100 mHz ?MHz (extendable to 40 MHz)
• wide measurement range:
• R = 1 mΩ ?1 TΩ
• C = 10 fF ?1 kF
• L = 1 nH ?1 TH
• high accuracy: 0.01% base accuracy

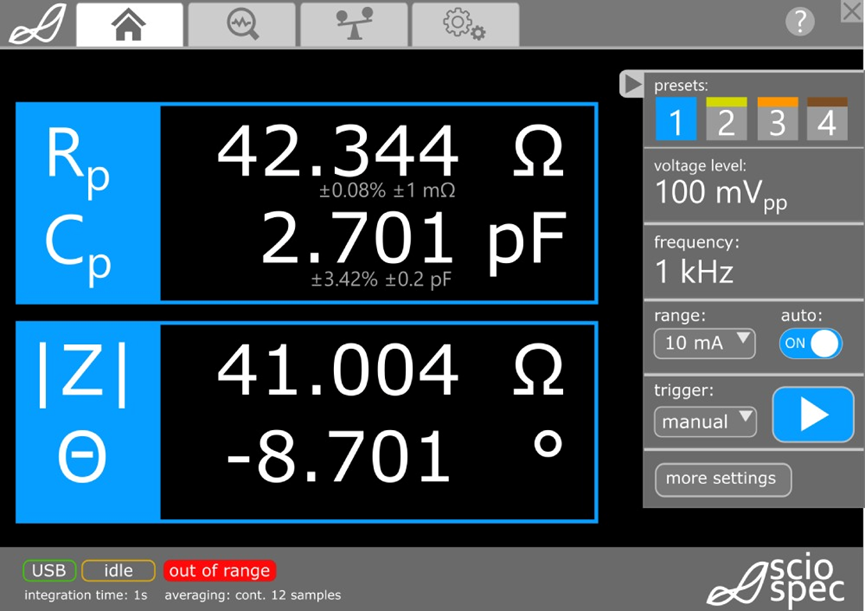

• extremely simple setup and direct access presets for easy day to day use
• compatible with many test adapters for electrical components, foils, thin films and liquids
• manual and automatic
• measurement ranges and triggers
• intuitive setup of averaging, compensation, integration time and many more if you need more control over your measurements.
