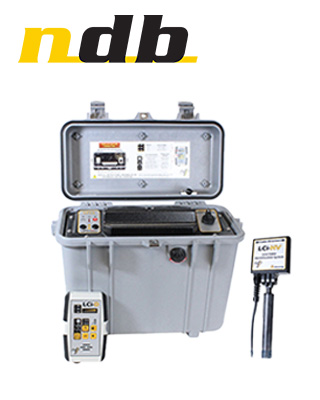

帶電電纜識別系統
energized cable identification system
產品型號：LCI™
LCi™ 的設計用途為準確地識別帶電的低壓或中壓電纜。其簡易、輕便的設計使其非常適用於配電變壓器二次側低壓電纜的識別；配上高壓探頭，也同樣能識別一次側的中壓饋線電纜。
識別的目的是在電纜上做好標識（標籤、掛牌），方便以後的維護工作。
識別的目的是在電纜上做好標識（標籤、掛牌），方便以後的維護工作。
LCI™ 的設計用途為準確地識別帶電的低壓或中壓電纜。其簡易、輕便的設計使其非常適用於配電變壓器二次側低壓電纜的識別；配上高壓探頭，也同樣能識別一次側的中壓饋線電纜。
識別的目的是在電纜上做好標識（標籤、掛牌），方便以後的維護工作。
產品介紹影片
LCI™ 發射器
| Dimensions | 9.2 x 15 x 2.5 cm (3.6 x 5.9 x 1 inches) |
| Rechargeable battery | Lithium-Ion, 3.7VDC, 900mA |
| External charger | 12VDC, 1.5A |
| Power consumption | 80 mA |
| Battery autonomy | 4 hours |
| Charging time | 5 hours |
| Operating temperature | -10 °C to 45 °C (14 to 113 °F) |
| Storage temperature | -20 °C to 45°C (-4 to 113 °F) |
| Charge temperature | 0°C to 45°C (32 to 113°F) |
| IP rating | IP54 |
| Relative humidity | Max. 85% RH at +40 °C, non-condensing |
| Altitude | Up to 2000 m |
| Outdoor use | Can be used outdoor, but not exposed to liquids |
LCI™ 接收器
| Dimensions | 50.2 x 40.0 x 18.8 cm (19.8 x 15.8 x 7.4 inches) |
| Weight | 6.3 kg (14 lbs) |
| Voltage input | 120 VAC to 420 VAC, 50-60 Hz |
| Current load | 8A - 10A peak |
| Pulse duration | 100 ms |
| Power (continuous) | 16 W to 96 W |
| Pulse repetition | Every 4 to 5 seconds min. |
| Operating temperature | -10 to 45°C (14 to 113 °F) |
| Storage temperature | -20 to 45°C (-4 to 113 °F) |
| Protection (IP rating) | IP54 closed, IP20 opened, IP32 ajar |
| Relative humidity | Max. 85% RH at 40 °C, non-condensing |
| Altitude | Up to 2000 m |
| Outdoor use | Can be used outdoor, but not exposed to liquids |
The LCI™ system is intended for energized cable identification on secondary and primary circuits. This innovative solution features a dual frequency technique that eliminates false identifications. The LCI™ is designed to be easy to use, safe for the user and cost-effective.
Introduction Video
LCI™ Detector
| Dimensions | 9.2 x 15 x 2.5 cm (3.6 x 5.9 x 1 inches) |
| Rechargeable battery | Lithium-Ion, 3.7VDC, 900mA |
| External charger | 12VDC, 1.5A |
| Power consumption | 80 mA |
| Battery autonomy | 4 hours |
| Charging time | 5 hours |
| Operating temperature | -10 °C to 45 °C (14 to 113 °F) |
| Storage temperature | -20 °C to 45°C (-4 to 113 °F) |
| Charge temperature | 0°C to 45°C (32 to 113°F) |
| IP rating | IP54 |
| Relative humidity | Max. 85% RH at +40 °C, non-condensing |
| Altitude | Up to 2000 m |
| Outdoor use | Can be used outdoor, but not exposed to liquids |
LCI™ Load
| Dimensions | 50.2 x 40.0 x 18.8 cm (19.8 x 15.8 x 7.4 inches) |
| Weight | 6.3 kg (14 lbs) |
| Voltage input | 120 VAC to 420 VAC, 50-60 Hz |
| Current load | 8A - 10A peak |
| Pulse duration | 100 ms |
| Power (continuous) | 16 W to 96 W |
| Pulse repetition | Every 4 to 5 seconds min. |
| Operating temperature | -10 to 45°C (14 to 113 °F) |
| Storage temperature | -20 to 45°C (-4 to 113 °F) |
| Protection (IP rating) | IP54 closed, IP20 opened, IP32 ajar |
| Relative humidity | Max. 85% RH at 40 °C, non-condensing |
| Altitude | Up to 2000 m |
| Outdoor use | Can be used outdoor, but not exposed to liquids |
