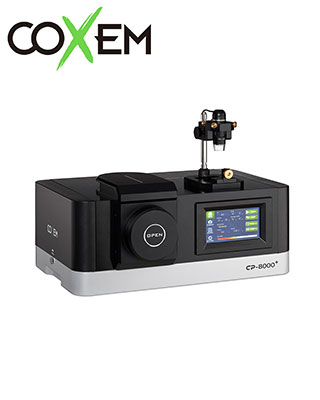

CP-8000+ 是先進的樣品製備工具，可利用氬離子束蝕刻樣品的截面。此製程可避免物理變形與結構破壞，而不需要複雜的化學處理。此外，該系統可處理從數十 um 到數 mm 的大面積，簡化了樣品的截面分析。
|
使用氣體 |
氬氣(Argon) |
|
銑削速度 |
700 μm/h (Si at 8kV) |
|
加速電壓 |
2~8 kV |
|
光束直徑 |
約 500 μm |
|
工作壓力 |
4.3 x 10-5 torr |
|
光束對準 |
使用數位顯微鏡進行精確的光束對準 |
|
最大樣品尺寸 |
20(W) x 10(D) x 9(H)mm |
|
樣品移動範圍 |
(Z: ±2mm, Y: ±2mm) |
|
旋轉角度 |
-35° ~ +35° |
|
銑削平台 |
傾斜範圍 : 40° to 80° |
|
顯示幕 |
觸控面板 (1024 x 600 ; 7吋 顯示器) |
|
腔室相機放大倍率 |
放大倍率 : 5x, 10x, 20x, 40x |
|
用於樣品對位的數位相機 |
放大倍率: 5x, 10x, 20x, 40x |
|
抽氣系統 |
渦輪分子泵 (66L/s) + 隔膜泵 |
|
尺寸 |
610(W) x 472(D) x 415(H)mm |

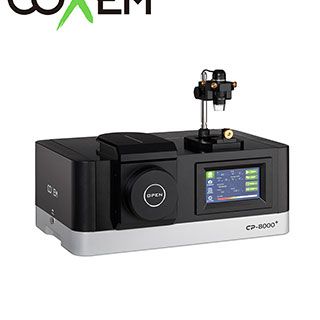

The CP-8000+ is an advanced sample preparation tool that etches a cross section of a sample using an argon ion beam. This process avoids physical deformation and structural damage, without requiring complicated chemical processes. In addition, the system simplifies cross-sectional analysis of the sample by processing large areas from tens of um to several mm.
|
Gas Used |
Ar(Argon) gas (Argon) |
|
Milling Speed |
700 μm/h (Si at 8kV) |
|
Accelerating Voltage |
2~8 kV |
|
Beam Diameter |
Approx. 500 μm |
|
Working Pressure |
4.3 x 10-5 torr |
|
Beam Alignment Precision beam alignment |
using Digital Microscope |
|
Maximum Sample Size |
20(W) x 10(D) x 9(H)mm |
|
Sample Moving Range |
(Z: ±2mm, Y: ±2mm) |
|
Rotation |
-35° ~ +35° |
|
Stage for Flat Milling |
Tilt Range : 40° to 80° |
|
Display |
Touch panel (1024 x 600 7 inch display) |
|
Chamber Camera |
Magnification : 5x, 10x, 20x, 40x |
|
Digital Camera for sample alignment |
Magnification : 5x, 10x, 20x, 40x |
|
Evacuation System |
Turbo-molecular pump (66L/s) |
|
Dimension |
610(W) x 472(D) x 415(H)mm |
