多通道電阻抗光譜儀

可擴展・靈活・高速

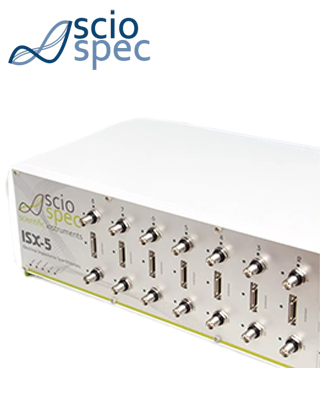

你的應用需求已超出單一阻抗分析儀的能力範圍？那麼你需要的是多個功能阻抗分析儀整合於一台機器，同時完美和諧運作。ISX-5 最多可整合 8 個阻抗測量通道於單一機箱，透過強大的訊號處理後端，實現真正同步的高速平行測量。更可以將多個 ISX-5 連接在一起以實現更高通道數。

若需要更高通道數、更靈活或更複雜的量測配置，請參閱 ISX-5 的多模組擴充版本 —— MSX 模組化平台。

強大選配功能

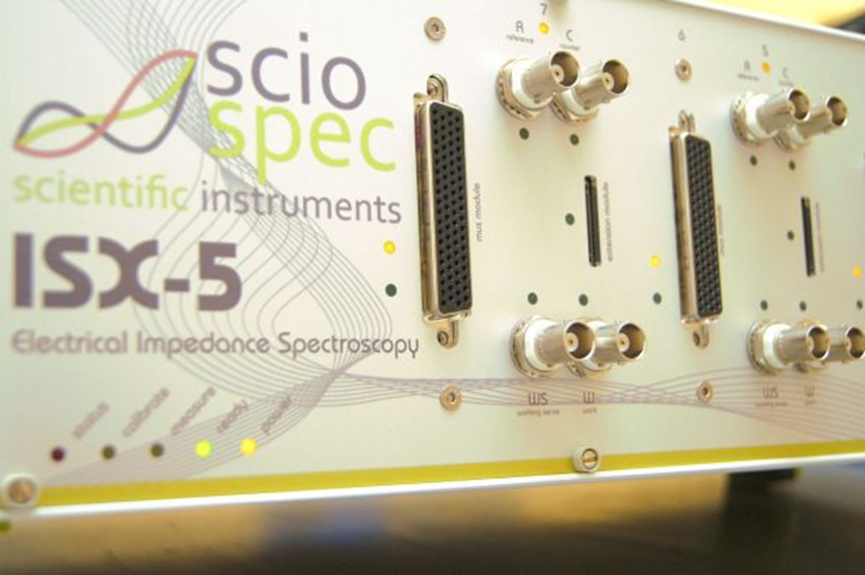

• 前面板接頭選擇：BNC、SMA、MCX、DSUB 或客製化接口
• 內建多工器選項可支援序列式多通道測量
• IOport 數位介面可連接外部感測器與其他硬體，並額外提供兩個 NTC 溫度量測通道
• 無線通訊介面
• 醫療等級電源供應器
• 溫控模組
• 精密多通道溫度監測模組，並支援多種常見溫度感測器
• 可客製化的電流與電壓範圍
• 若需更多彈性，推薦升級至 MSX 模組化平台

ExtensionPort 系統

為了靈活擴展應用範圍，可透過 ExtensionPort 連接應用專用前端模組與轉接器。該介面與規格對使用者完全開放，大幅簡化ISX-5使用者自行開發的流程。ExtensionPort 連接器支援2、3、4 電極測量訊號、電源軌、及數位輸入/輸出，並可選擇設定為 I2C、UART 等序列介面。

ISX-5 主要特色

• 多通道阻抗分析儀，單機支援最多 8 通道
• 通道間同步機制，確保真正平行運作
• 高效能處理訊號，即便啟用全部通道亦可實現高速測量
• IF前端頻率範圍100mHz... 10 MHz，阻抗範圍mΩ…TΩ
• 頻率可擴展至 40 MHz 甚至 100 MHz
• 高解析度（每次掃描高達2048頻率）
• 測量基本精度達 0.01%
• ±1 V直流偏壓
• 進階配置能力：
• 每通道可設定不同測試參數
• 同步 / 非同步測量模式
• 多分析埠共用單一激發源
• 支援非線性阻抗光譜（NIS）
• 透過 Sync In/Out 接頭進行超高速硬體同步
• 搭載 ExtensionPort，可連接特定應用前端
• 輕易連接高速USB或乙太網

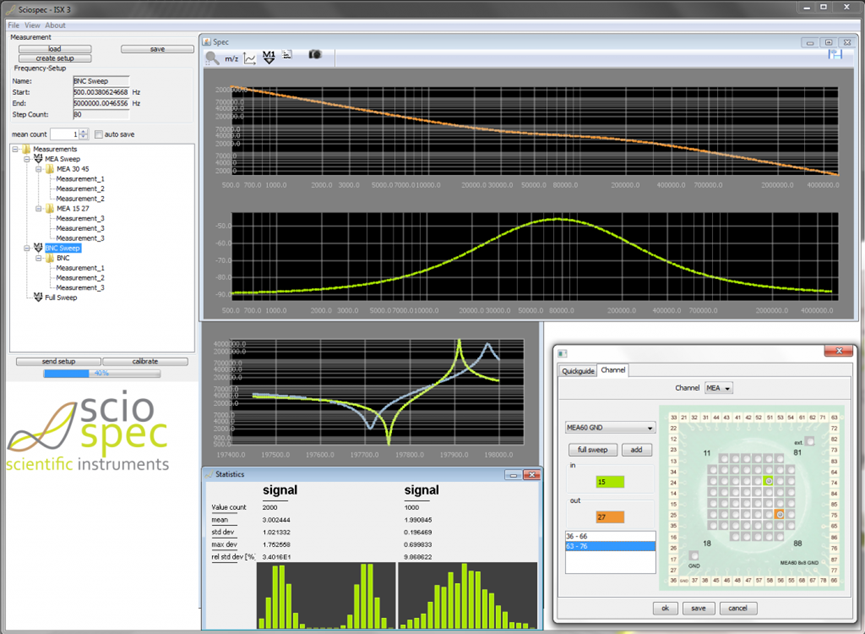

• PC 軟體控制與數據分析（包含Sciospec軟體套裝）
• 支援 Sciospec COM 接口，可用於 Java、C、Python、LabView、Matlab 等進行完整儀器控制

SCALABLE. FLEXIBLE. FAST

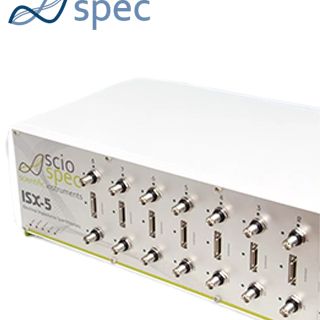

Your plans are a little bigger, than what a single impedance analyzer can handle? How about having multiple full featured impedance analyzers within one instrument – working in perfect harmony? Up to 8 impedance measurement channels can be integrated into one ISX-5 and provide true fully-parallel ultra-fast measurements thanks to the powerful signal processing backend. Multiple ISX-5 chassis can be joined together to enable even higher channel counts.

For even more flexibility and more demanding complex measurement setups check out the MSX modular platform – the multi type module extension of the ISX-5.

Powerful options

• frontpanel connectors: BNC, SMA, MCX, DSUB, custom
• internal multiplexer options for sequential multichannel capabilities
• IOport digital interface connector for external sensors and other hardware, two additional NTC temperature measurement ports
• wireless interfaces
• medical grade power supply
• temperature controller module
• precision multichannel temperature monitoring module for most common temperature sensor types
• customized current and voltage ranges
• for even more flexibility check out the MSX modular platform

ExtensionPort System

For flexible extension of its application possibilities application specific frontends and adapters can be connected through the ExtensionPort system. Interface and specifications for the ExtensionPort are fully user accessible dramatically simplifying customer`s developments for and with the ISX-3. The connector carries measurement signals for 2,3 and 4-electrode configuration, supply rails and digital IOs, which can optionally be configured as serial interfaces (I2C, UART).

ISX-5 key facts

• Multichannel impedance analyzer with up to 8 channels in one chassis
• Channel to channel synchronisation for truly parallel operation
• Powerful signal processing backend enables fast measurements even with all channels enabled
• IF Frontend 100 mHz…10 MHz, mOhm…TOhm
• Frequency extendable to 40 MHz or even 100 MHz
• High resolution (up to 2048 points per sweep)
• Base Precision of 0.01%
• +/- 1 V DC Bias
• Advanced setup capability
• Multichannel setups with different parameters for each channel
• Synchonous or asynchronous measurements
• Multiple analysis ports with single excitation source
• Nonlinear impedance spectroscopy
• Ultra-fast hardware synchronization through sync in/out ports
• ExtensionPort for application specific frontends
• Simple connection through High Speed USB or Ethernet
• PC-based control & data analysis (Sciospec software suit included)
• Sciospec COM-Interface for full instrument control from Java, C, Python, LabView, Matlab etc.
