超精巧阻抗分析儀

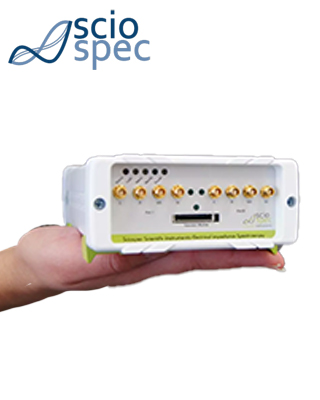

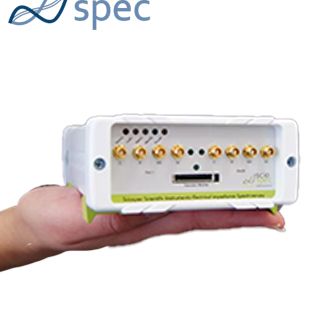

有高要求測量，但沒有空間容納龐大實驗設備？要在現場進行阻抗光譜測量？Sciospec 提供的 ISX-3mini 是一款功能完整、掌心大小的阻抗分析儀，專為這類需求設計。
在標準配置下，ISX-3mini 採用 Sciospec 的 IF 前端模組，測量頻率範圍由100 mHz 到 10 MHz（可選配擴展至40或100 MHz）、阻抗測量動態範圍高達 300 dB（mΩ 到 TΩ），而基本精度達 0.01%。並搭載兩個多工MCX 4電極測量埠，可方便地對兩個感測器或待測物進行比較測試。
ExtensionPort 系統
為了靈活擴展應用範圍，可透過 ExtensionPort 連接應用專用前端模組與轉接器。該介面與規格對使用者完全開放，大幅簡化ISX-3mini使用者自行開發的流程。ExtensionPort 連接器支援2、3、4 電極測量訊號、電源軌、及數位輸入/輸出，並可選擇設定為 I2C、UART 等序列介面。
ISX-3mini 主要特點：
- 超精巧阻抗分析儀
- 兩個多工通道MCX介面支援2、3或4電極配置
- IF前端頻率範圍100mHz... 10 MHz，阻抗範圍mΩ…TΩ
- 頻率可擴展至 40 MHz 甚至 100 MHz
- 2、3和4個電極配置
- 高解析度（每次掃描高達2048頻率）
- 基本精度0.01%
- ±1V直流偏壓
- 搭載 ExtensionPort，可連接特定應用前端
- 透過 Sync In/Out 接頭進行超高速硬體同步（選配）
- 輕易連接高速USB，乙太網或無線區域網路
- PC 軟體控制與數據分析（包含Sciospec軟體套裝）
- 支援 Sciospec COM 接口，可用於 Java、C、Python、LabView、Matlab 等進行完整儀器控制
- IOport 數位介面可連接外部感測器與其他硬體，並額外提供兩個 NTC 溫度量測通道
ISX-3mini key facts
- Ultra-compact impedance analyzer
- Two multiplexed channels with MCX-Interface for 2, 3 and 4-point-configurations
- IF Frontend 100 mHz…10 MHz, mΩ…TΩm
- Frequency extendable to 40 MHz or even 100 MHz
- 2, 3 and 4 electrode configurations
- High resolution (up to 2048 frequencies per sweep)
- Base precision of 0.01%
- +/- 1 V DC Bias
- ExtensionPort for application specific frontends
- Ultra-fast hardware synchronization through sync in/out connectors (optional)
- Simple connection through Full Speed USB, Ethernet or Wireless LAN
- PC-based control & data analysis (Sciospec software suit included)
- Sciospec COM-Interface for full instrument control from Java, C, Python, LabView, Matlab etc.
- IOport digital interface connector for external sensors and other hardware, two additional NTC temperature measurement ports
Demanding measurements but no room for large and bulky lab equipment? Impedance Spectroscopy out in the field? With the ISX-3mini Sciospec offers a fully equipped impedance analyzer fitting in the palm of your hand.
In standard configuration the ISX-3mini is equipped with Sciospec’s IF frontend. Within the measurement range from 100 mHz to 10 MHz (extendable to 40 or 100 MHz) it covers a dynamic range of 300dB (mOhm…TOhm) with a base precision of 0.01%. The two multiplexed 4-electrode MCX measurement ports greatly simplify comparative measurements of two sensors or devices under test.
ExtensionPort System
For flexible extension of its application possibilities application-specific frontends and adapters can be connected through the ExtensionPort system. Interface and specifications for the ExtensionPort are fully user accessible dramatically simplifying customer’s developments for and with the ISX-3. The connector carries measurement signals for 2,3 and 4-electrode configuration, supply rails and digital IOs, which can optionally be configured as serial interfaces (I2C, UART).
