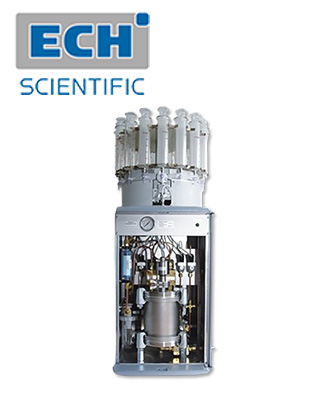

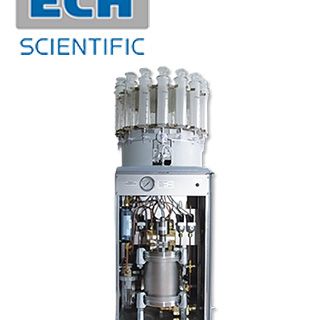

GasExtractor for gas in oil analysis
Completely automated system that extracts gases from oils and other highly viscous liquids by vacuum
The GasExtractor is a fully automated vacuum degassing unit for extracting gas from oil and other highly viscous liquids according to international standards. The determination of the total gas content is performed by fast and precise determination of the pressure increasing.
The GasExtractor provides the basis for identification of gas compounds and can be linked easily with standard gas chromatographs.
The GasExtractor is equipped with a powerful four stage membrane pump. The vacuum can be generated without mercury (substitution of Toepler pump). The system can be upgraded with an autosampler for different sizes of syringes for oil samples.
Applications
- Insulating oil
- Mineral oil
- Lubrication fluids
- Engine oil
- Gear oil
- Hydraulic fluids
- Biodiesel
Advantages
- Complete measuring device for vacuum degassing
- Extraction of gases from oils according to international standard regulations
- Working without mercury
- Fast determination of the total gas content
- Suitable for linking with a gas-phase chromatograph
- Basis for quantitative determination of the dissolved gases
- Powerful four stage membrane pump
- Digital pressure measurement
- Valve for automatic oil feed and drain
- Automatic procedure with vacuum-tight solenoid valves and fittings
- Uncontaminated degassing and transfer to gas chromatograph
- Completed data acquisition- and date evaluation system
| Type: | vacuum degassing with oil- and mercury free pump |
| Vacuum pump: | Four stage membrane pump, chemical resistant construction, compact design as mounted pump |
| Pump rate: | 2.0 m³/h |
| Vacuum sensor: | Measuring range: 0.01 – 170 mbar, regardless of the gas |
| Accuracy: | 2 % FS |
| Start vacuum: | < 0.8 mbar |
| Working range: | 0 – 150 mbar |
| Resolution: | 0.01 mbar |
| Sample volume: | 20 – 300 mL |
| Total gas content: | > 0.05 % |
| Conditioning time: | < 5 min |
| Typical degassing time: | < 2 min |
| Power supply: | 115 – 230 V, 50 – 60 Hz |
| Power input: | 200 W |
| Dimensions: | 330 x 520 x 495 mm (W x H x D) |
| Gas transfer to GC: |
manually or automatically |
