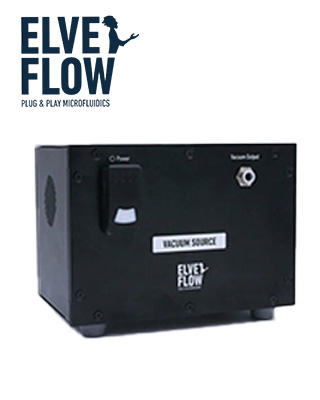

一個袖珍而輕便的真空源
Elveflow設計了一個無油式的真空源，由於其體積小僅一只箱體，可便於在實驗室環境中的使用。
這款真空泵是向微流體流量控制器（如Elveflow OB1）提供真空的理想選擇。 穩定的真空度可產生至-850mbar，這使它成為-900/1000mbar-900/6000mbar壓力調節器完美配套產品。
標準套件：
- 1* 壓力源儀器
- 1* 電源供應器(24V DC)
- 2m長的6mm OD 管材
Elveflow Vacuum Source (EVS) |
|
Performances |
|
| Vacuum pressure (relative) | -850 mbar(13 psi) |
| Vacuum pressure (absolute) | 150 mbar (2.3 psi) |
| Pumping speed | – |
| Noise level | <53 dB |
Mechanical specifications |
|
| Dimensions (l x w x h) | 161 x 194 x 195 mm |
| Weight | 1.4 kg |
| Pneumatic connection | 6 mm push-in |
| Internal receiver volume | 250ml |
| Operating temperature | 5-40°C |
| Operating humidity | up to 80% |
Electrical specifications |
|
| Input voltage range | 24 V |
| AC supply frequency | 50-60 Hz |
| Power supply voltage | 10-240 V |
| Max current consumption | 1.5 A (typical: 0.8 A) |
| Max power consumption | 36 W |

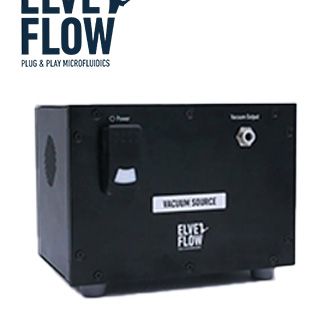

A compact and light vacuum source
We designed an oil-free vacuum source to ease the integration in a laboratory environment thanks to its small footprint and integrated tank.
This vacuum pump is ideal to supply vacuum to a pressure regulator such as the ELVEFLOW OB1.
The steady vacuum generation goes down to -850 mbar which makes it the perfect companion product for -900/1000mbar -900/6000mbar pressure regulators.
Content
- 1* Pressure source instrument
- 1* Power supply unit (24V DC)
- 2m of pneumatic 6mm OD tubing
Elveflow Vacuum Source (EVS) |
|
Performances |
|
| Vacuum pressure (relative) | -850 mbar(13 psi) |
| Vacuum pressure (absolute) | 150 mbar (2.3 psi) |
| Pumping speed | – |
| Noise level | <53 dB |
Mechanical specifications |
|
| Dimensions (l x w x h) | 161 x 194 x 195 mm |
| Weight | 1.4 kg |
| Pneumatic connection | 6 mm push-in |
| Internal receiver volume | 250ml |
| Operating temperature | 5-40°C |
| Operating humidity | up to 80% |
Electrical specifications |
|
| Input voltage range | 24 V |
| AC supply frequency | 50-60 Hz |
| Power supply voltage | 10-240 V |
| Max current consumption | 1.5 A (typical: 0.8 A) |
| Max power consumption | 36 W |
