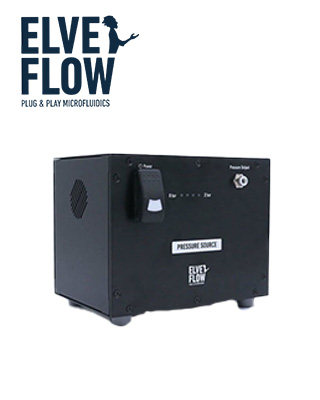

一個袖珍而輕便的壓力源
Elveflow設計了一個無油式的壓力源，由於其體積小僅一個箱體，可便於在實驗室環境中的使用。
這款壓力源是向微流體流量控制器（如Elveflow OB1）提供壓縮空氣的理想選擇。2000 mbar的穩定壓力使其成為0-200 mbar或0-2000 mbar OB1微流體流量控制器的完美配套產品。
標準套件：
- 1* 壓力源儀器
- 1* 電源供應器(24V DC)
- 2m長的6mm OD 管材
Elveflow Pressure Source (EPS) |
|
Performances |
|
| Max pressure | 3 bar (44 psi) |
| Air flow rate (at operating pressure) | – |
| Noise level | <53 dB |
Mechanical specifications |
|
| Dimensions (l x w x h) | 161 x 194 x 195 mm |
| Weight | 2 kg |
| Pneumatic connection | 6 mm push-in |
| Internal receiver volume | 350 ml |
| Operating temperature | 5-40°C |
| Operating humidity | up to 80% |
Electrical specifications |
|
| Input voltage range | 24 V |
| AC supply frequency | 50-60 Hz |
| Power supply voltage | 10-240 V |
| Max current consumption | 1.5 A (typical: 0.8 A) |
| Max power consumption | 36 W |

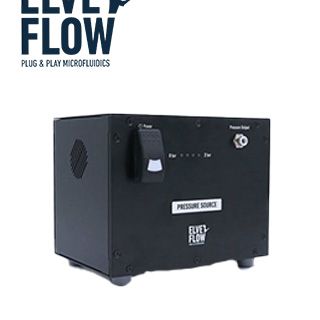

A compact and light pressure source
We designed an oil-free pressure source to ease the integration in a laboratory environment thanks to its small footprint and integrated tank.
This pressurized air source is ideal to supply compressed air to a pressure regulator such as the ELVEFLOW OB1. The steady pressure of 2000 mbar makes it the perfect companion product for 0-200 mbar or 0-2000 mbar OB1 pressure regulators.
ontent
- 1* Pressure source instrument
- 1* Power supply unit (24V DC)
- 2m of pneumatic 6mm OD tubing
Elveflow Pressure Source (EPS) |
|
Performances |
|
| Max pressure | 3 bar (44 psi) |
| Air flow rate (at operating pressure) | – |
| Noise level | <53 dB |
Mechanical specifications |
|
| Dimensions (l x w x h) | 161 x 194 x 195 mm |
| Weight | 2 kg |
| Pneumatic connection | 6 mm push-in |
| Internal receiver volume | 350 ml |
| Operating temperature | 5-40°C |
| Operating humidity | up to 80% |
Electrical specifications |
|
| Input voltage range | 24 V |
| AC supply frequency | 50-60 Hz |
| Power supply voltage | 10-240 V |
| Max current consumption | 1.5 A (typical: 0.8 A) |
| Max power consumption | 36 W |
