電阻抗斷層成像（EIT）系統
精巧．簡易．快速

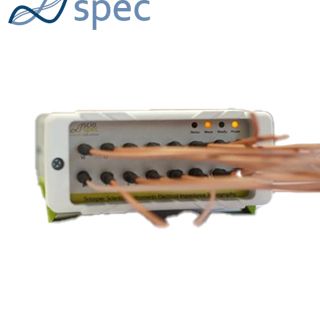

Sciospec EIT16 是 Sciospec 的標準 EIT 系統，兼具體積小巧與強大效能，配備 16 通道。EIT16 的優異表現已成為研究與產業界最受歡迎的電阻抗斷層成像設備之一。
憑藉其高效能與無限的客製化可能性，EIT16 已在多所頂尖研究機構中被廣泛使用，推動阻抗斷層技術應用邁向全新領域。
想在晶片感測器上進行 EIT？我們已經為您準備好了！
我們對使用電化學與阻抗分析的晶片式生物感測器有相當豐富的經驗。EIT 技術在這個領域也展現了極具潛力的應用前景，因此我們特別開發出一種簡單的方式，讓您能輕鬆地將我們的 EIT 系統用於晶片感測應用：EIT Slide Chip Adapters 晶片滑座轉接模組。
無論您是要從頭設計感測器，還是選用現成的，都可透過我們的滑座系統與簡易的載板實現相容。我們也樂意協助您進行感測器應用開發—歡迎聯絡我們洽詢細節。
精彩案例參考
來看看我們在德勒斯登的萊布尼茲固態與材料研究所（Leibniz IFW Dresden）的合作研究成果：

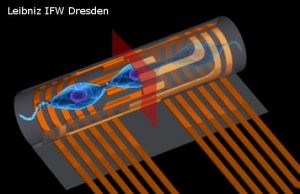

Electrical impedance tomography in on-chip integrated microtubular fluidic channels
作者：S.M. Weiz, M. Medina-Sánchez, K. Lee, O.G. Schmidt
發表於第18屆電阻抗斷層成像國際會議（EIT Conference）論文集，第 23 頁。
核心特色
本系統專為電阻抗斷層成像（EIT）或一般多埠阻抗量測應用而設計。其真實平行量測能力與高度同步切換機制，實現極快的影像更新率。
- 16 個雙功能電極接點，可同時作為電壓量測與電流注入埠
- 偽差分（pseudo-differential）電流源，激發信號可達 10 mA
- 高度同步的資料擷取模組，可實現 16 通道真正同步取樣
- 採用超低漏電簧片繼電器的快速切換注入開關矩陣，可從 16 通道中選擇任意兩個作為正負注入端
- 內建 Sciospec SineFit 演算法，可快速精準地萃取訊號
- 頻率範圍：100 Hz 至 1 MHz
- 支援最多 128 頻點的頻率掃描進行頻譜量測
- 注入電流範圍：100 nA 至 10 mA（峰值）
- 影像更新率最高可達 100 fps
- 附贈軟體包含即時影像重建功能
- 可完全客製化— 歡迎與我們聯絡
- 提供 OEM 版本
為方便入門，我們提供內建的影像重建軟體功能，可支援時間差與頻率差影像重建。或您也可使用 MATLAB 程式碼將資料匯入 EIDORS，亦可自訂演算法並導入我們的軟體使用。
COMPACT. EASY. FAST
The Sciospec EIT16 is Sciospec’s standard EIT system. It’s a very compact yet powerful instrument with 16 channels. With its outstanding performance the EIT16 has become one of the most popular EIT systems for research and industry.
With its performance and the countless customization opportunities it is put to use in leading research institutes paving the way for new applications of impedance tomography.
You want EIT on chip based sensors? We've got you covered!
We have a lot of experience with chip based sensors for biosensing using electrochemical and impedance analysis. EIT offers some very promising possibilities in that application domain as well, so we went ahead and created a simple way to work on chip based sensors with our EIT instruments – the EIT slide chip adapters.
Whether you want to design your own sensor from scratch or want to use something off the shelf, it is easy to make it fit with our slide chip system through simple and affordable carrier boards. We are happy to help you with your sensor application development – just contact us.
Case Study
Check out what our friends at the Leibniz Institute for Solid State and Materials Research Dresden did with it:
Electrical impedance tomography in on-chip integrated microtubular fluidic channels.
SM Weiz, M Medina-Sánchez, K Lee, OG Schmidt, Proceedings of the 18th International Conference on Electrical impedance tomography, p 23.
Electrical impedance tomography in on-chip integrated microtubular fluidic channels.
Key facts
The system is designed for measurements for electrical impedance tomography or general multi-port impedance measurement applications. True parallel measurements and tightly synchronized switching allows for fast frame rates.
- 16 dual role electrode connections serving both as voltage measurement and current injection ports
- Pseudo-differential current source for excitation signals up to 10 mA
- Tightly synchronized data acquisition block for truly simultaneous sampling of all sixteen channels
- Fast switching ultra-low leakage reed relay injection switch matrix for selection of any combination of 2 out of 16 channels for positive and negative injection ports
- Sciospec SineFit algorithm for fast and precise signal extraction
- Frequency range from 100 Hz … 1 MHz
- Spectral measurements with frequency sweeps with up to 128 frequencies
- Current excitation from 100 nA … 10 mA peak amplitude
- Frame rates up to 100 fps
- Software with ready to go imaging algorithms
- Fully customizable – just ask us
- OEM available
For easy entry a software provides EIT image reconstruction functionalities for time- and frequency-difference imaging. Alternatively you can just use the MATLAB code and import your data to EIDORS or write your own image reconstruction and import that to our software.
