ECIS 8 孔培養陣列

全面性能與彈性，支援 ECIS 8 孔培養陣列的轉接器

ECIS CULTUREWARE 8 孔陣列是廣泛應用的細胞阻抗實驗工具，常用於細胞增生、細胞遷移、傷口癒合、屏障功能、毒性篩選、附著與增殖等研究。

透過 Sciospec 的 ECISadapter，您可以將這些實驗提升到全新層次：更快速、更高解析、更多可能。使用現有 ECIS 陣列即可發揮 Sciospec 阻抗分析儀的強大功能。只需將 ECISadapter 插入如 ISX-3 等相容的 Sciospec 阻抗分析儀，即可立即開始使用。

• 高成本效益的儀器組合
• 每次掃描支援最多 2048 個頻率的高解析靈活頻譜掃描
• 頻寬涵蓋直流至 10 MHz
• 測量速度極快

.

支援的陣列類型

選對感測器與選對儀器一樣重要。Sciospec ECISadapter 相容下列 ECIS Cultureware 家族的 8 孔陣列，包括：

• ECIS Cultureware 8W1E PET
• ECIS Cultureware 8W1LE（8W1CXE）PET
• ECIS Cultureware 8W2LE PET
• ECIS Cultureware 8W2X1E
• ECIS Cultureware 8W10E PET
• ECIS Cultureware 8W10E+ PET
• ECIS Cultureware 8W20idf PET
• ECIS Flow Array 1 Channel µ-Slide with 8x1E（1F8x1E）PC

需要更符合您的需求的設計？我們可以協助您量身打造專屬感測器結構，滿足特定應用的需求。亦可整合液體處理與溫控功能。

ExtensionPort 系統

為了靈活擴展應用範圍，可透過 ExtensionPort 連接應用專用前端模組與轉接器。該介面與規格對使用者完全開放，大幅簡化ISX-3、ISX-3mini或ISX-5使用者自行開發的流程。ExtensionPort 連接器支援2、3、4 電極測量訊號、電源軌、及數位輸入/輸出，並可選擇設定為 I2C、UART 等序列介面。

主要特點

• 適用於 ECIS 8 孔陣列的轉接器，支援 ExtensionPort 系統（例如 ISX-3）
• 8 個通道，每個為兩線式配置（8 個工作電極 W，共用一個對電極）
• 相容多種 ECIS 8 孔陣列布局
• 小巧、低調設計
• 經過培養箱測試驗證
• 玻璃底部，適合與顯微鏡及其他光學設備搭配使用
• 經由 ExtensionPort 輕鬆設定
• 完整整合於 Sciospec 軟體中的使用者圖形介面

FULL PERFORMANCE AND FLEXIBILITY ON ECIS 8 WELL ARRAYS WITH

The ECIS CULTUREWARE 8 well arrays are a very common choice for a broad range of impedance-based cell experiments like cell growth, cell migration, wounding/healing, barrier function, tox-screening, adhesion and proliferation studies.

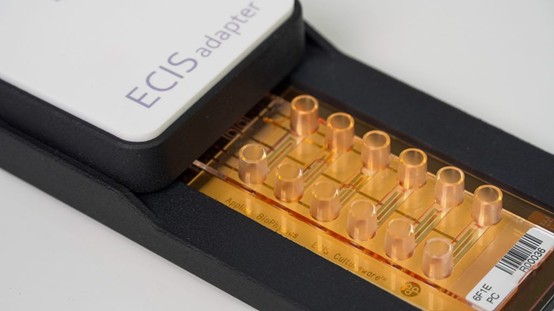

With the Sciospec ECISadapter you can bring your ECIS experiments to the next level: more speed, higher resolution, more possibilities. Harness the full power of Sciospec impedance analyzers on your existing ECIS arrays. The ECISadapter just plugs into compatible Sciospec impedance analyzers like the ISX-3 and you´re good to go.

• cost-efficient instrumentation setup
• flexible high resolution sweeps with up to 2048 frequencies per sweep
• bandwidth from DC to 10MHz
• very high measurement speed

.

Supported array types

Just as important as the correct instrument is the sensor type you use. The Sciospec ECISadapter is compatible with 8 well arrays from the ECIS Cultureware family, such as:

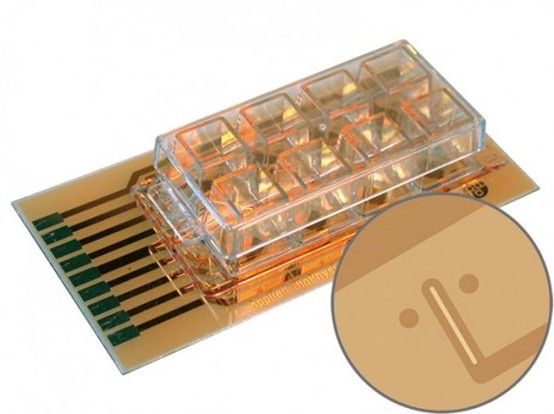

• ECIS cultureware 8W1E PET
• ECIS Cultureware 8W1LE (8W1CXE) PET
• ECIS Cultureware 8W2LE PET
• ECIS Cultureware 8W2X1E
• ECIS Cultureware 8W10E PET
• ECIS Cultureware 8W10E+ PET
• ECIS Cultureware 8W20idf PET

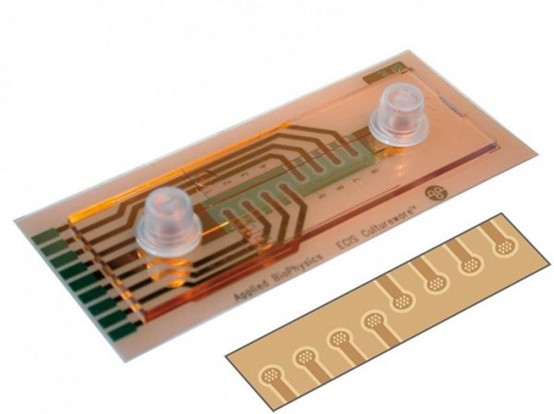

• ECIS Flow Array 1 Channel µ-Slide with 8x1E (1F8x1E) PC

Need something more tailored towards your needs? We can help you design and manufacture your own sensor structures specifically targeting your application. Integration of fluidic handling and temperature control is also available.

ExtensionPort System

For flexible extension of its application possibilities application specific frontends and adapters can be connected to many of our instruments through the ExtensionPort system. Interface and specifications for the ExtensionPort are fully user accessible dramatically simplifying customer`s developments for and with systems like the ISX-3, ISX-3mini or ISX-5. The connector carries measurement signals for 2,3 and 4-electrode configuration, supply rails and digital IOs, which can optionally be configured as serial interfaces (I2C, UART).

Key facts

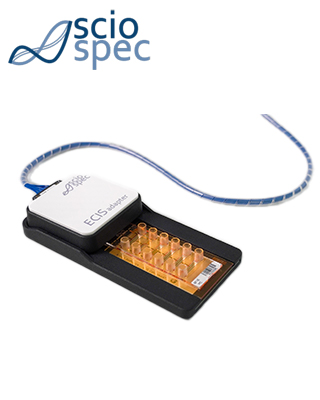

• adapter for ECIS 8 well arrays fitting the extension port system (e.g. on ISX-3)
• 8 channels each in two wire configuration (8 work electrodes W and 1 common counter electrode)
• layout fitting broad range of ECIS 8 well arrays
• small form factor, low profile
• incubator-proven
• glass bottom for use in combination with microscopic and other optical equipment
• easy setup through extension port
• fully integrated graphical user-interface in Sciospec software
