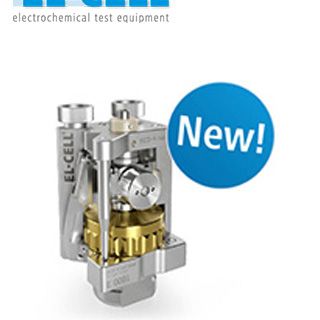

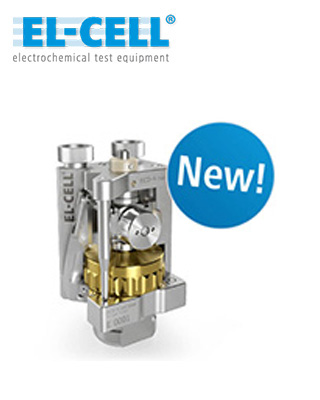

ECD-4-nano

產品型號：ECD-4-nano

Advanced Electrochemical Dilatometer for the measurement of electrode expansion with nanometer resolution.

•Capacitive displacement sensor (range 250 μm, resolution better than 5 nm)
•Additional gas pressure (0 to 3 bar) and temperature sensor (-20 to 80° C)
•Cableless connection via PAT socket, with electronic cell tag (PAT-Button)
•PRODUCT DETAILS

分享：

加入洽詢

產品特點
規格

Advanced test cell for the measurement of the electrode expansion in the nanometer range.
The ECD-4-nano takes dilatometry measurements to the next level

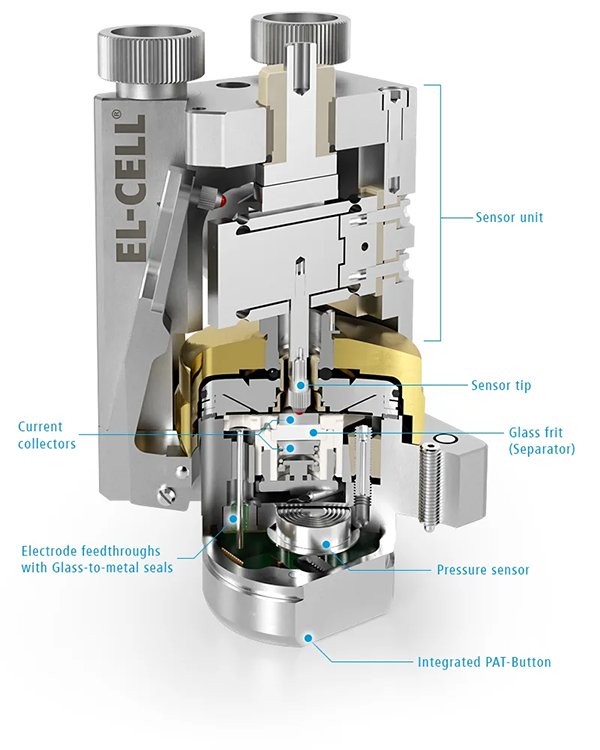

The ECD-4-nano is a high-resolution electrochemical dilatometer. The most powerful version offers a capacitive parallel plate sensor system with a resolution of better than 5 nanometers. This makes the ECD-4-nano the perfect instrument for detecting thickness changes of the individual electrode or the full cell stack during the electrochemical cycle.
The ECD-4-nano‘s completely redesigned test cell features a corrosion-resistant cell bottom and a new One-Seal concept that significantly improves tightness over previous ECD-3 models. This enables stable long-term operation as well as the use of a wide range of electrolytes.
To further improve workflow and handling, we have now integrated the ECD-4-nano into the PAT system. The dilatometer can be inserted directly into a PAT-Tester-x or a docking station such as the PAT-Clamp-1. This allows a space-saving and fast setup of the instrument. Needless to say, the integrated PAT-Button also ensures automatic recognition of the test cell in our EL-Software measurement software.

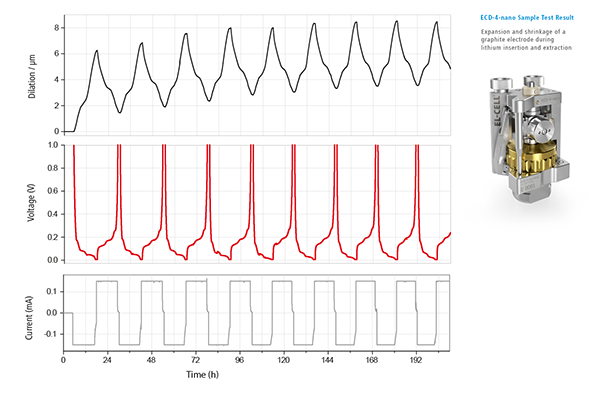

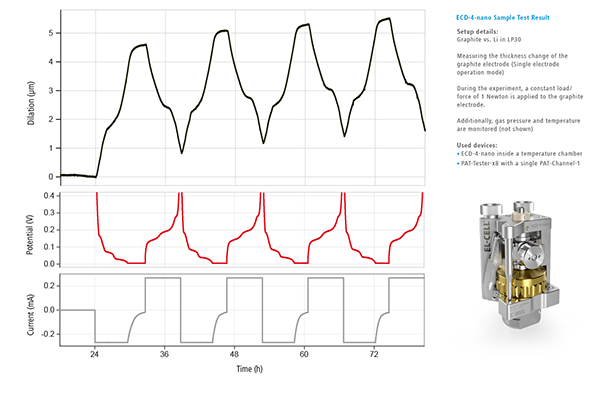

Sample Test Results

Sample Setup

04-01-ecd-4-nano-02

04-01-ecd-4-nano-03

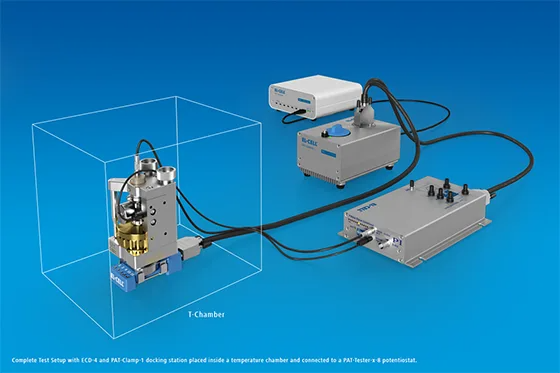

Sample Setup

04-01-ecd-4-nano-04

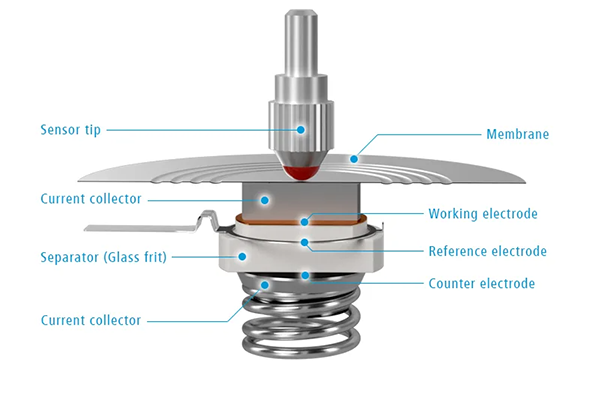

Working principle of the ECD-4-nano (3-electrode setup)
he working electrode (WE) and the counter electrode (CE) are separated by a stiff glass frit soaked with electrolyte. The upper WE is sealed by means of a flexible metal membrane, through which any charge-induced thickness change is transmitted towards the sensor/load unit attached on top. The fixation of the glass frit ensures that only the thickness change of the working electrode is being detected without interference from the CE.

04-01-ecd-4-nano-05

Length	64 mm
Width	67 mm
Height	149 mm
Weight	2 kg
Sample diameter	10 mm
Glass T-Frit (Separator)	12.5/10 x 3.5 mm
Separator diameter (full cell mode)	max. 10 mm
Working (upper) electrode diameter	max. 10 mm
Counter (lower) electrode diameter	max. 12 mm
Gas pressure sensor:	0 to 3 bar abs.
Chemical compatibility	Aprotic organic electrolytes
Cell electrolyte volume	approx. 0.2 ml
Operational temperature range (cell and sensor)	-20 to 80° C
Operational temperature range (conditioning electronics and data logger)	0 to 40 °C
Load on test specimen	approx. 1 Newton

Product variants	ECD-4-nano	ECD-4

Displacement sensor type:	Capacitive	LVDT
Displacement range:	250 μm	500 μm
Displacement resolution:	≤ 5 nm	≤ 50 nm

Compatible PAT docking stations and potentiostats

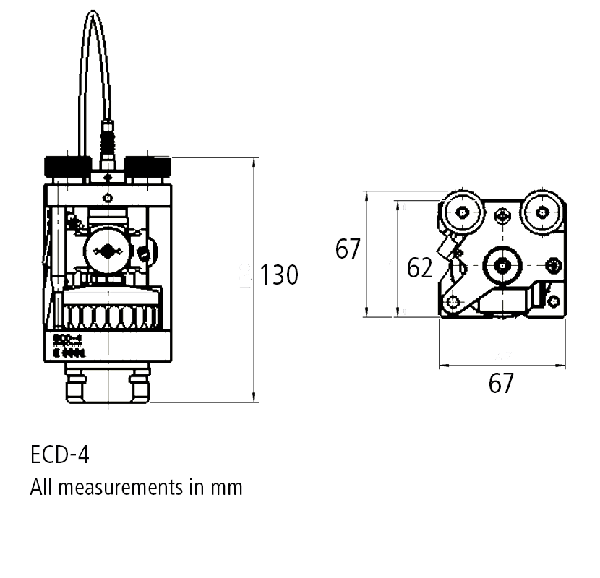

04-01-ecd-4-nano-07

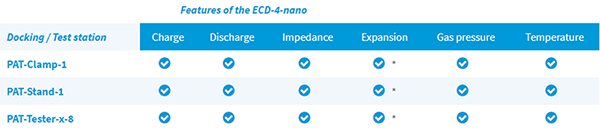

Compatible PAT docking stations and potentiostats

04-01-ecd-4-nano-08
