ECC-Std

產品型號：ECC-Std

Electrochemical test cell for 2-electrode measurements.

•Adjustable, reproducible and homogeneous mechanical pressure on electrodes
•Electrodes are easily accessible for post-mortem analysis
•Easy and reliable electrolyte filling upon assembly
•Fast assembly and dismantling, and easy cleaning of cell components

分享：

加入洽詢

產品特點
規格

Product description
The ECC-Std electrochemical cell is dedicated to the characterization of aprotic battery and capacitor systems in two-electrode configuration. The most typical application is the characterization of a lithium-ion battery electrode (anode or cathode) against a lithium metal counter electrode. A re-fitting kit is available to use the ECC-Std cell in combination with a reference electrode, thereby converting the ECC-Std into the ECC-Ref test cell.
Cell parts that come in contact with the electrolyte are made of stainless steel and PEEK and can thus withstand all common aprotic organic electrolytes used in lithium-ion battery and aprotic supercapacitor technology.

Features

High precision 18 mm diameter sandwich geometry with <0.1 mm electrode concentricity
Adjustable, reproducible and homogeneous mechanical pressure on electrodes
Reliable low leakage sealing with PE washers
Easy and reliable electrolyte filling upon assembly
Fast assembly and dismantling and easy cleaning of cell components
Electrodes are easily accessible for post-mortem analysis
Reusable cell components except for PE sealing
Materials in media contact are stainless steel 1.4404 and PEEK
Small and defined electrolyte volume down to 0.05 cm³ due to minimized dead volume
Materials in media contact are stainless steel and PEEK
Special materials/ solutions on request
Optionally available: Std to Ref upgrade kit

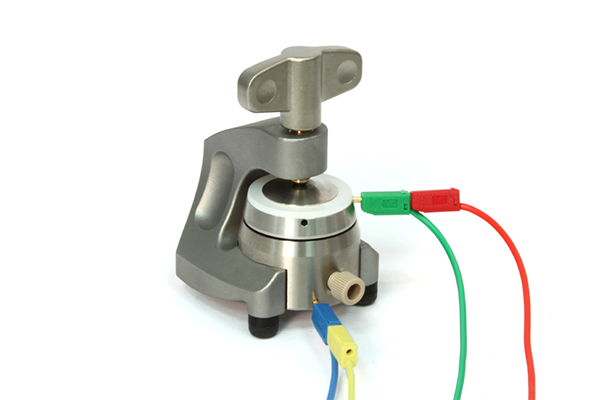

ECC-Std_Gallery_01

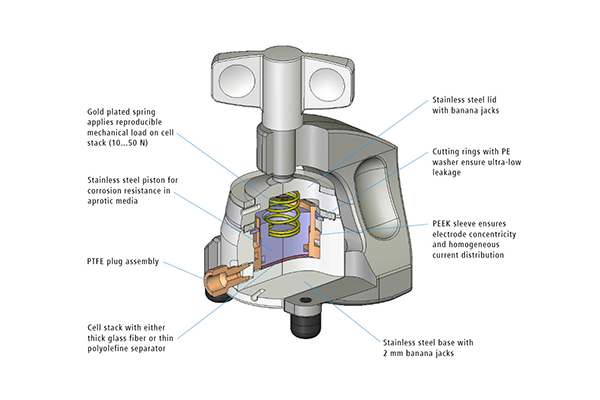

ECC-Std_Gallery_02

Height	90 mm
Width	54 mm
Depth	72 mm
Weight	0.6 kg
Temperature resistance:	-40 to +80 °C (150 °C)*
Electrode diameter	18 mm
Electrolyte volume min	0.1 ml

*with optional Heat Resistance Set ECC1-01-0040-A

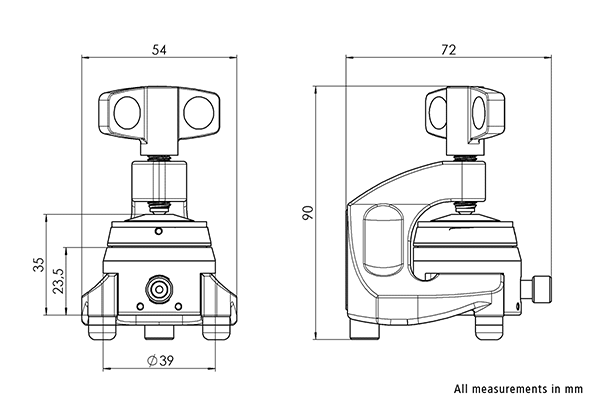

ECC-Std_measurements
