產品型號：ECC-RefLoad

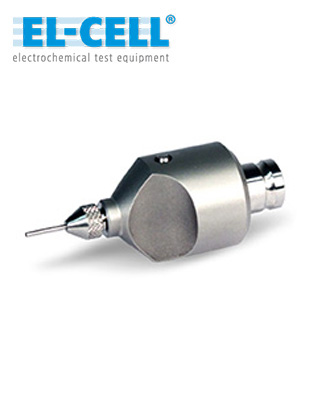

Tool for loading reference materials such as lithium metal into ECC series test cells .
•Suitable for ECC-Ref, ECC-Combi, ECC-Air(-Ni), ECC-DEMS, ECC-Press(-DL), ECC Press-Air(-DL) ECC-•Press-Aqu(-DL), ECC-Press-Air-Aqu(-DL), ECC-Opto-Std, ECC-Opto-SBS
•Ref cleaning toll set available
•Suitable for ECC-Ref, ECC-Combi, ECC-Air(-Ni), ECC-DEMS, ECC-Press(-DL), ECC Press-Air(-DL) ECC-•Press-Aqu(-DL), ECC-Press-Air-Aqu(-DL), ECC-Opto-Std, ECC-Opto-SBS
•Ref cleaning toll set available
Tool for loading reference materials such as lithium metal into ECC-Opto-Std, ECC-Opto-SBS and ECC-Aqu test cells.
Basically, the tool is a small tube (cannula) with a knock-out pin inside. A tiny piece of lithium metal is first picked up by pressing the cannula onto a piece of lithium foil (>0.2 mm thick). The cannula is then inserted into the bore of the Ref-sleeve and the lithium inside the cannula is extruded into the Ref-bore by actuating the knock-out pin.
Gallery

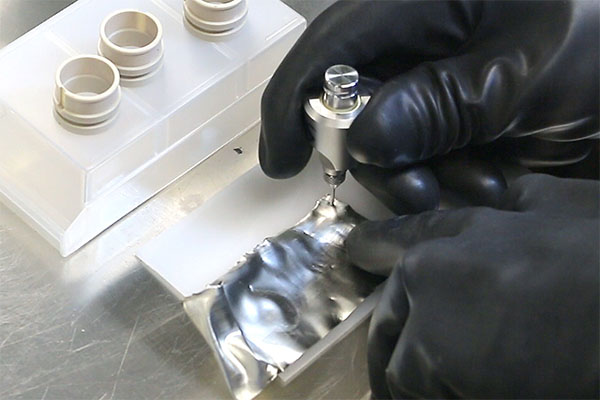

Picking up lithium with the ECC-RefLoad

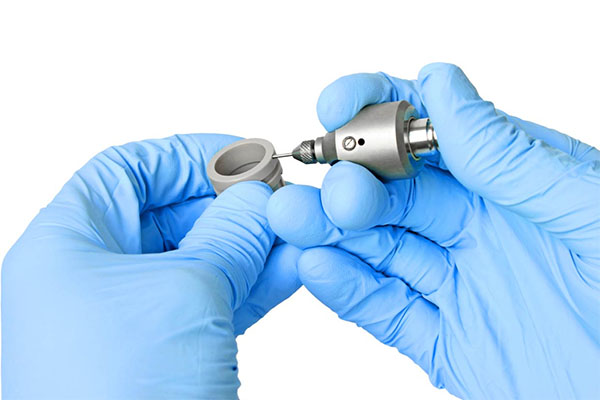

Using the ECC-RefLoad

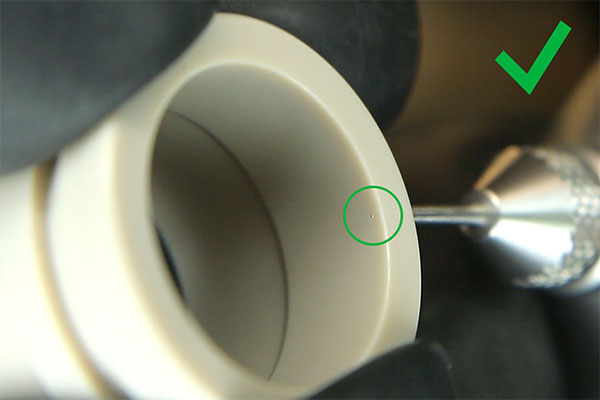

Correct use: The Lithium is pushed to the inner edge of the Ref-sleeve – no more, no less.

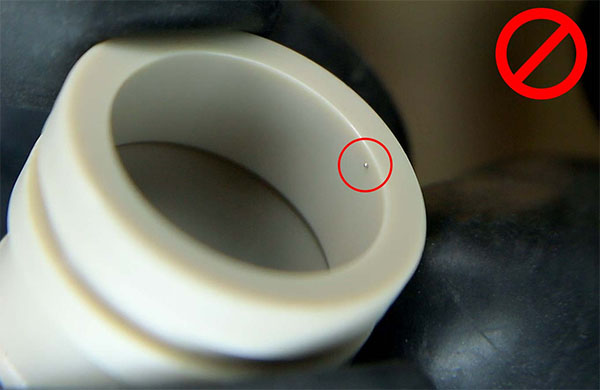

Wrong use: Lithium protrudes beyond the inner edge of the Ref-sleeve. This may cause a short circuit in the assembled cell.
| Length | 62 mm |
| Diameter | 25 mm |
| Weight | 84 g |
