ECC-PAT-Core
•減少因腐蝕或交叉污染可能導致的錯誤。
•不需要清洗或乾燥電池零件。
•裝配時電解液的填充簡單而可靠。
•使用PE-Seal和雙切割環進行可靠的密封。

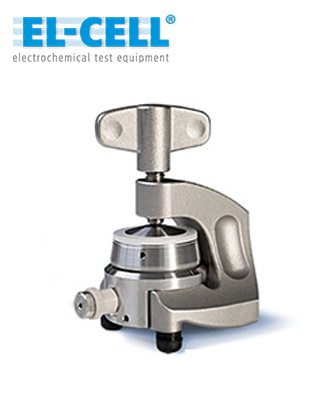

ECC-PAT-Core是帶有PAT-Core的獨立測試治具。作為小容量ECC測試治具系列的正式成員，ECC-PAT-Core可以直接連接到恒電位儀。它包含使用PAT-Core概念的所有必要的零組件。
ECC-PAT-Core是小型實驗室的理想鋰離子測試治具，最多可同時執行 10 個測試治具的測試。在全面使用PAT系列之前，熟悉新的PAT-Core概念是下的理想選擇。
總之，ECC-PAT-Core使研究人員能夠在小範圍內從兩極式和三極式電池測試中獲得出色的數據。

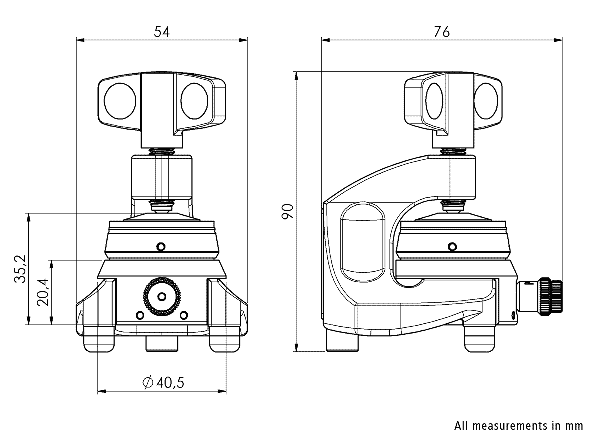

| Height | 90 mm |
| Width | 54 mm |
| Depth | 76 mm |
| Weight | 0.6 kg |
| Electrolyte volume | down to 0.05 cm³ |
| Separator diameter | 18 mm |

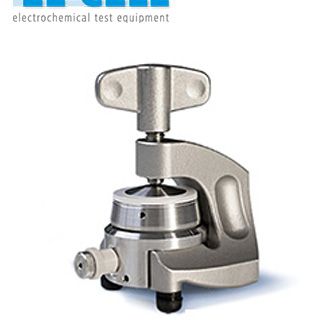

The ECC-PAT-Core is the stand-alone test cell with PAT-Core. As a genuine member of the small volume ECC test cell series, the ECC-PAT-Core can be directly connected to a potentiostat. The ECC-PAT-Core test cell contains all necessary components for using the PAT-Core concept.
The ECC-PAT-Core is the ideal Li-ion test cell for small laboratories with up to 10 test cells running in parallel. It is the right choice to become familiar with the new PAT-Core concept before using the PAT series to the full extent.
In summary, the ECC-PAT-Core enables researchers to obtain outstanding results from two- and three-electrode battery tests on a small scale.
| Height | 90 mm |
| Width | 54 mm |
| Depth | 76 mm |
| Weight | 0.6 kg |
| Electrolyte volume | down to 0.05 cm³ |
| Separator diameter | 18 mm |
