首頁產品型錄測試治具 ECC-Opto-Gas

Catalog

產品型錄

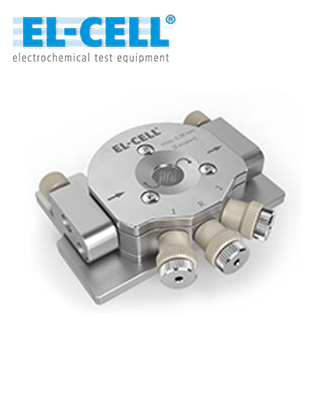

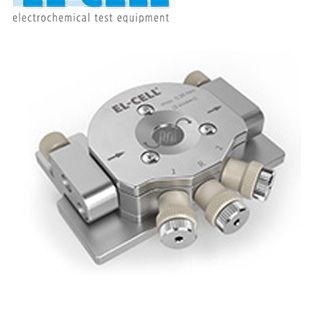

ECC-Opto-Gas

產品型號：ECC-Opto-Gas

Test cell for optical characterization of gas diffusion electrodes in metal-air batteries.

•In-situ test cell for the optical characterization of gas diffusion electrodes (GDE) in aprotic organic electrolytes.
•Minimized dimensions suitable for light and Raman microscopes working in the reflective mode

分享：

加入洽詢

產品特點
規格

Test cell for optical characterization of gas diffusion electrodes in metal-air batteries.

Product description
The ECC-Opto-Gas is an in-situ test cell for the optical characterization of gas diffusion electrodes (GDE) in metal-air batteries. The cell features a sapphire window with a meander-shaped flow field, which can be purged with gas during charge/discharge. The ECC-Opto-Gas can be mounted on the stage of almost any light or Raman microscope in order to “look” through the transparent window onto the backside of the GDE. The cell is equipped for use with aprotic organic electrolytes.

Gallery

03-05-ECC-Opto-Gas-01

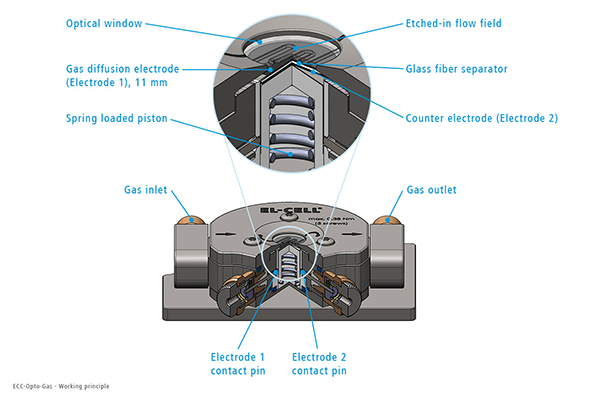

ECC-Opto-Gas – Working principle

03-05-ECC-Opto-Gas-02

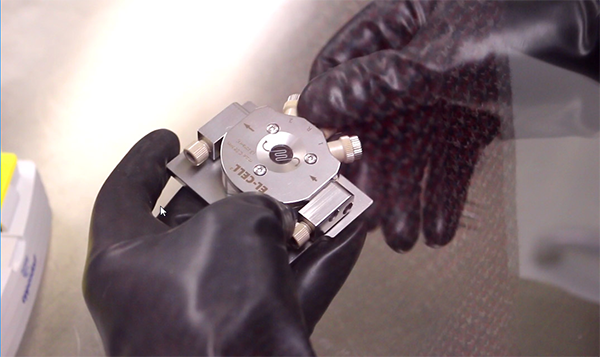

ECC-Opto-Gas inside the glove box

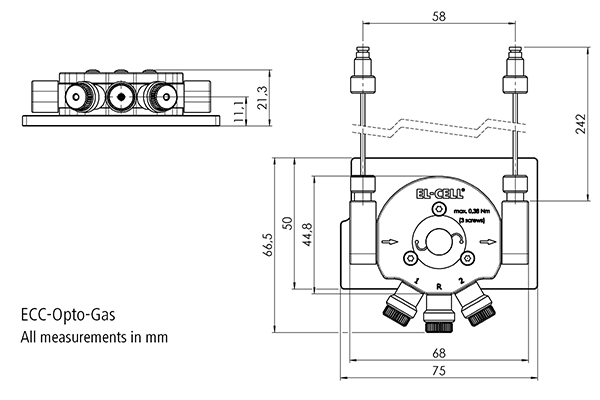

Height	21.3 mm
Width	75 mm
Depth	66.5 mm
Electrode diameter	12 mm
Electrolyte volume	min. 0.04 ml
Separator diameter	12.5 mm
Weight	340 g

相關產品
