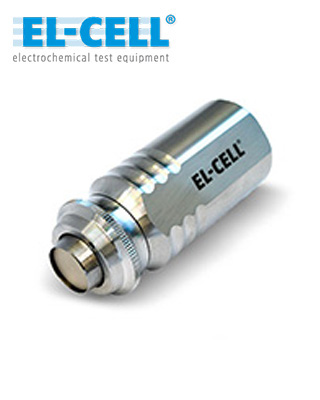

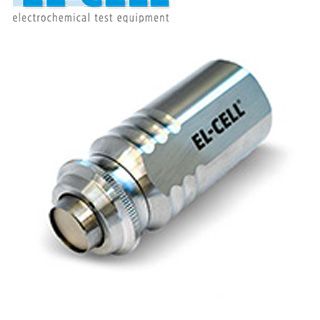

ECC-LiPunch

產品型號：ECC-LiPunch

Punching tool for lithium foil.

•For punching precise and flat lithium discs
•Standard size for EL-CELL test cells: 18 mm
•Other sizes available on request

分享：

加入洽詢

產品特點
規格

Punching tool for lithium foil

Forget about your lithium foil getting stuck to the hollow punch! The ECC-LiPunch is the perfect tool for smoothly punching 18 mm lithium discs for the ECC and PAT series test cells.

ECC-LiPunch features

For punching highly precise and flat lithium discs
Standard size for EL-CELL test cells: 18 mm diameter
Other sizes available: 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 16.6, 17, 18, 19, 20 mm

Gallery

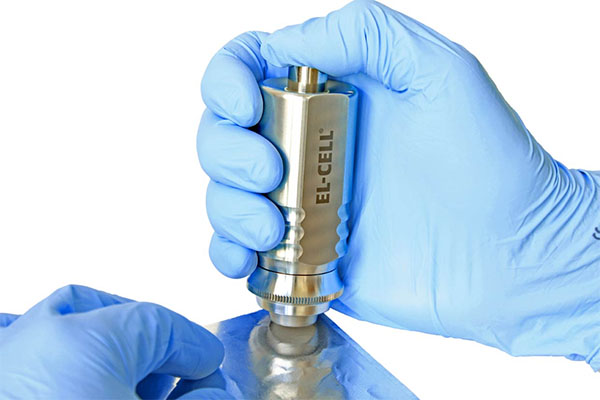

07-03-ECC-LiPunch-01

Cutting diameter	18 mm (other dia. on request)
Length	100 mm
Diameter	39 mm
Weight	0.7 kg
