ECC-CellLoad

產品型號：ECC-CellLoad

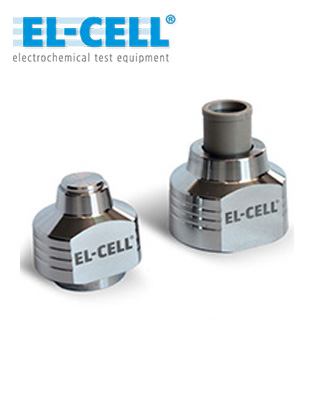

Electrode alignment and assembly tool

•Highly precise alignment of the two electrodes
•Suitable for electrodes of 18 mm diameter
•Easy handling
•Suitable for ECC-Std and ECC-Press-Air(-DL)

分享：

加入洽詢

產品特點
規格

Electrode alignment and assembly tool

When building full cells with thin Celgard type separators, the concentric alignment of the two electrodes – with the oversized separator in between – is the key for electrochemical performance and life time. The ECC-CellLoad is the tool to get that done easily. This tool is suitable for test cells ECC-Std and ECC-Press-Air(-DL).

ECC-CellLoad features

Highly precise concentric alignment of the two electrodes
Suitable for electrodes of 18 mm diameter
Easy handling
Suitable for ECC-Std and ECC-Press-Air-(DL)

Gallery

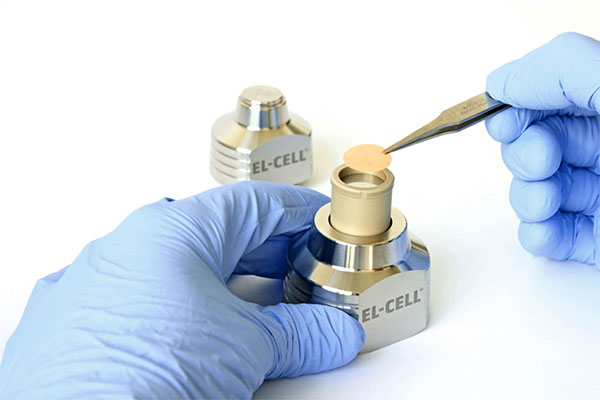

07-05-ECC-CellLoad-01

Using the ECC-CellLoad

Height	140 mm
Width	380 mm
Depth	60 mm
Weight	1 kg

相關產品

EL-Cut

High precision cutting pliers to eliminate torn and chipped electrode edges.

•Perfectly cut electrodes
•Electrode thickness: max. 300 μm (for coatings on Al and Cu foil (may vary for other support materials))
•Available diameters of the cutting tool range from 6 to 40 mm. Different shapes (e.g. squared) are available •on request

ECC-StopRail

Attachment for the EL-Cut to speed up the cutting process and reduce cutting scrap.

•Compatible to any EL-Cut diameter up to 22 mm
•Very easy assembling to El-Cut, no tools required

ECC-LiPunch

Punching tool for lithium foil.

•For punching precise and flat lithium discs
•Standard size for EL-CELL test cells: 18 mm
•Other sizes available on request

ECC-RefLoad

Tool for loading reference materials such as lithium metal into ECC series test cells .

•Suitable for ECC-Ref, ECC-Combi, ECC-Air(-Ni), ECC-DEMS, ECC-Press(-DL), ECC Press-Air(-DL) ECC-•Press-Aqu(-DL), ECC-Press-Air-Aqu(-DL), ECC-Opto-Std, ECC-Opto-SBS
•Ref cleaning toll set available

Metal seal mounting kit

Tool kit for using metal seals in PAT series test cells
