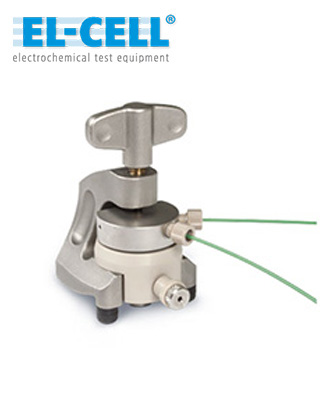

ECC-Air-Ni

產品型號：ECC-Air-Ni

Test cell for electrochemical characterization of gas diffusion electrodes in aqueous electrolytes

•Fast assembly and dismantling and easy cleaning of cell components
•Materials in media contact are nickel and PEEK
•Upper electrode is contacted by and breathes through a perforated plate (current collector) made of nickel

分享：

加入洽詢

產品特點
規格

Test cell dedicated to the characterization of gas diffusion electrodes in alkaline aqueous electrolytes

Product description
The ECC-Air-Ni is another member of the modular ECC series. In contrast to the standard ECC-Air test cell, the current collectors are made of nickel instead of stainless steel. This way, the ECC-Air-Ni is stable against corrosion in alkaline aqueous electrolytes.

Basically, the cell accommodates a counter electrode on the cell bottom, a gas diffusion electrode on top and a separator in between. The upper gas diffusion electrode is contacted by and “breathes” through the nickel perforated plate (current collector) above. The cell lid is equipped with one port for gas inlet and one for gas outlet, so that the incoming gas passes along the backside of the gas diffusion electrode and leaves the cell through the siphon. The ECC-Air-Ni can be used with a reference electrode, which is located at the separator edge.

Gallery

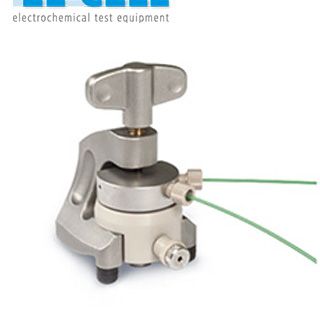

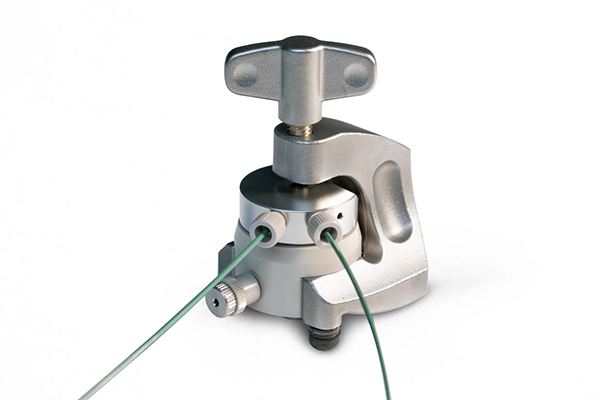

02-05-ECC-Air-Ni-01

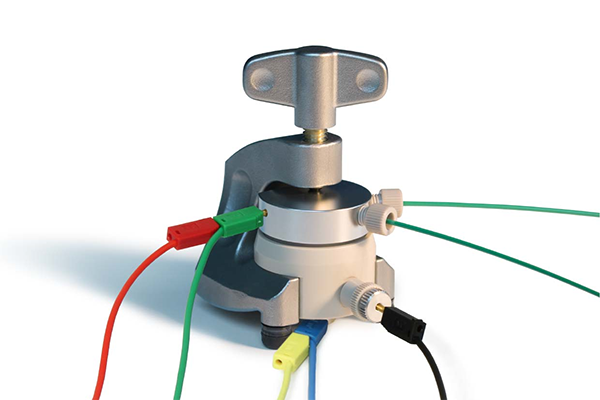

02-05-ECC-Air-Ni-02

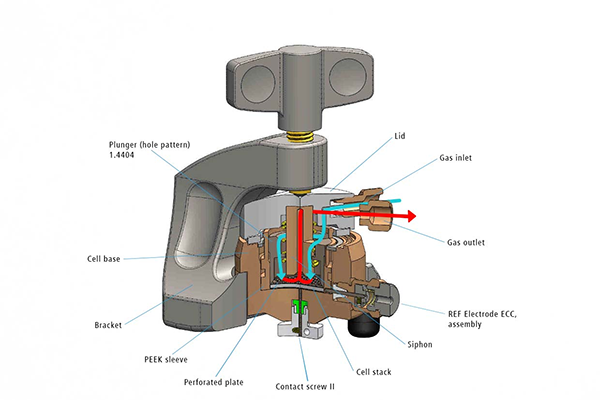

02-05-ECC-Air-Ni-03

Height	90 mm
Width	54 mm
Depth	70 mm
Weight	0.6 kg
Temperature resistance:	-20° to +70°C (150°C)*
Electrode diameter	18 mm
Electrolyte volume min	0.1 ml
Cell dead volume (head space)	approx. 4.3 cm³

*with optional Heat Resistance Set ECC1-01-0040-A
